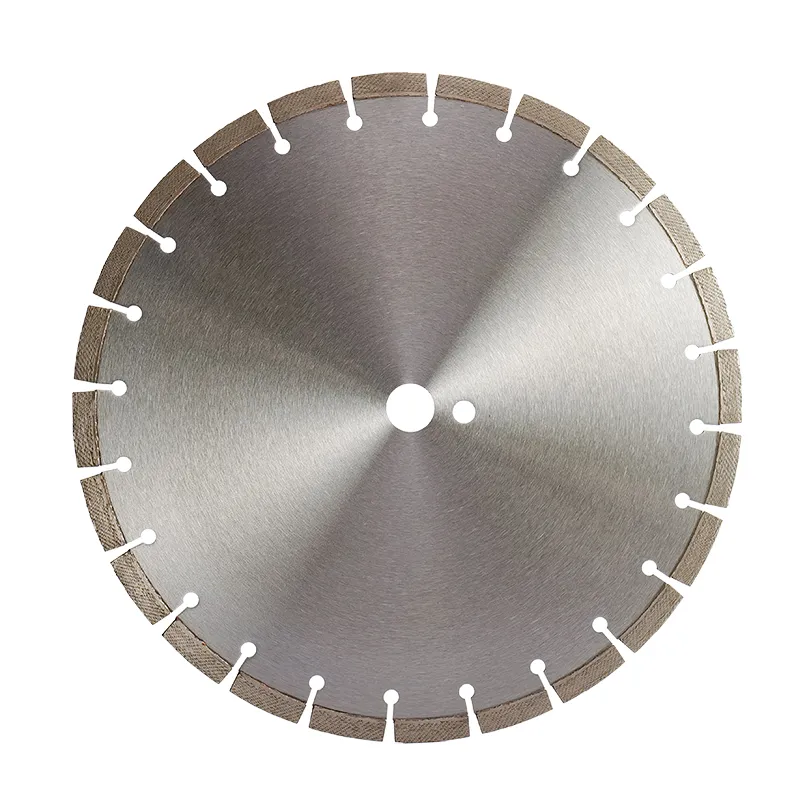

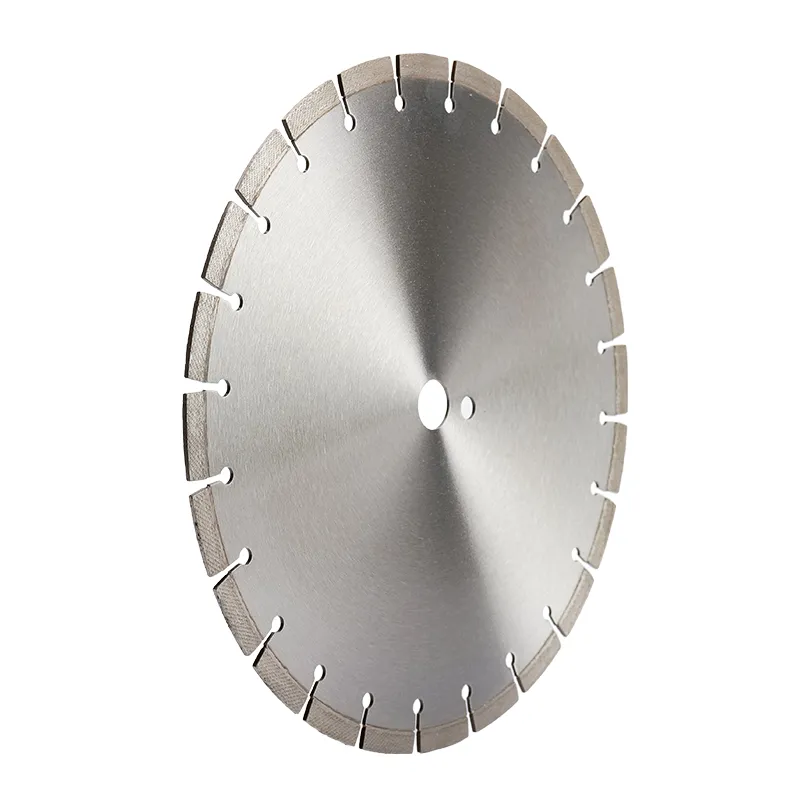

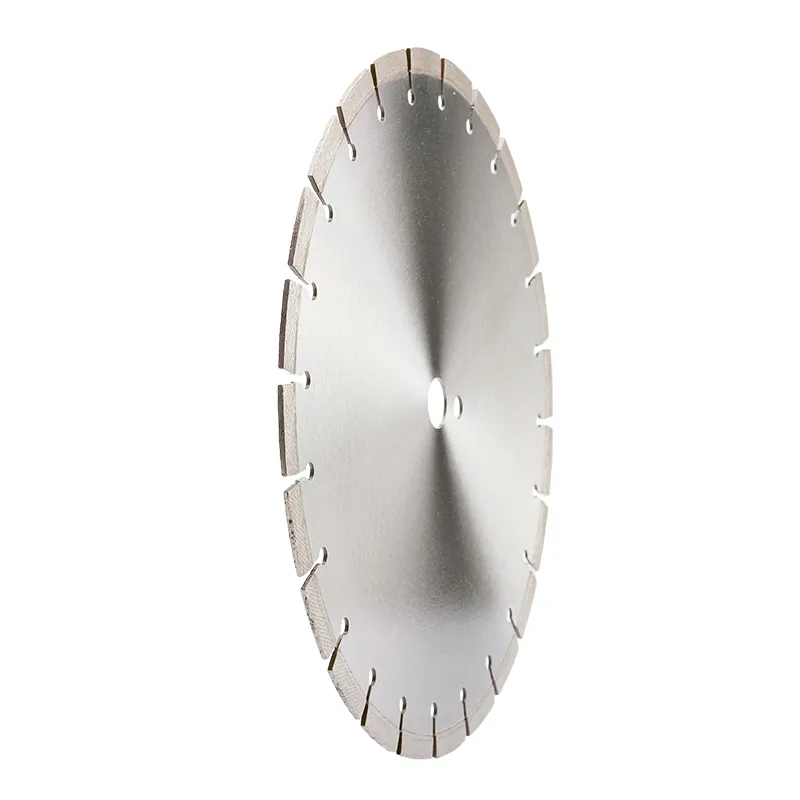

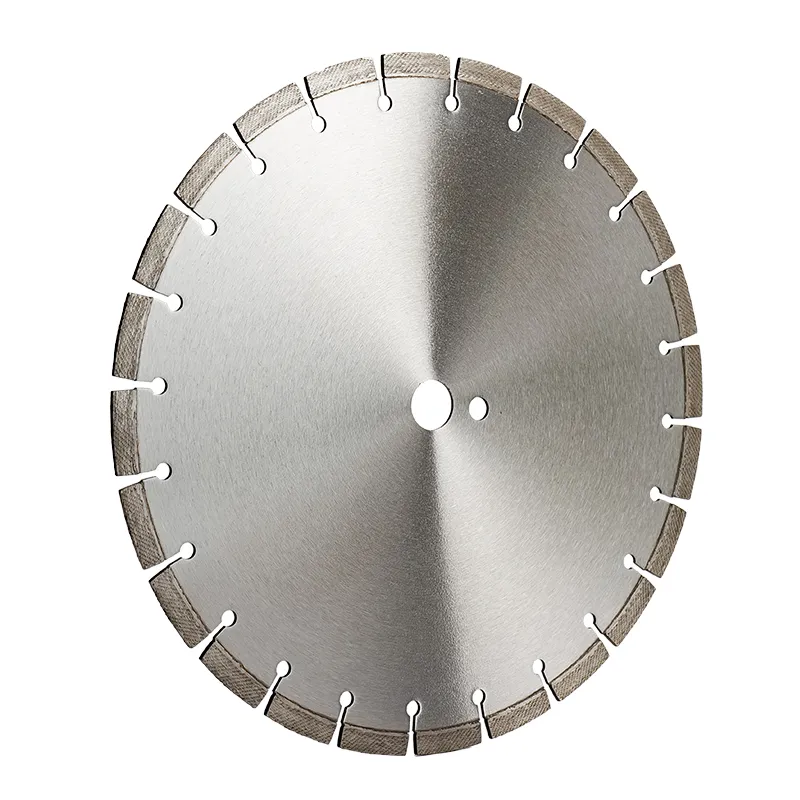

Array Pattern Diamond Concrete Blade is laser welded, the segment style is segmented with key-slot, in this state we make the segmented saw blade have high strength and also improve its cutting performance.
The laser welded concrete saw blade can be installed on handheld saw, floor saw, walk-behind saw, using for dry or wet cutting concrete, cured concrete, green concrete reinforced concrete cutting.
Features of Array Pattern Concrete Diamond Saw Blade
1). Used for professional cutting in road and floor construction.
2). Both Dry and Wet Use.
3). Different Cutting slots have a different function, narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevents clogging.
4). Extra soft- Soft- Medium bond hardness options all kinds of concretes with hard to soft aggregates.
5). Array Pattern guarantees the consistent fast and durable cutting.
6). Different grade to choose
Specification
Array Pattern Concrete Blade
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CGLP30012 | 300mm | 12mm | 3.2mm | 20/25.4mm |
| CGLP35012 | 350mm | 12mm | 3.2mm | 25.4mm |
| CGLP40012 | 400mm | 12mm | 3.5mm | 25.4mm |
| CGLP45012 | 450mm | 12mm | 3.5/4.0mm | 25.4mm |
| CGLP50012 | 500mm | 12mm | 3.5/4.0/4.5mm | 25.4mm |
| CGLP55012 | 550mm | 12mm | 3.5/4.0/4.5mm | 25.4mm |
| CGLP60012 | 600mm | 12mm | 4.0/4.5/4.7mm | 25.4mm |
The other size can be customed by your request.
Delivery Time
Our leading time will be about 4 weeks for the batch order.
How is the quality?
First, we have a very serious control system.
Second, in the face of different markets, we have different quality levels. The main promotion for Euro and US markets is the premium level. The main promotion for the Middle East Market is the standard level.
Third, the different quality level has different cutting speed and working life.
Corediam Introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
