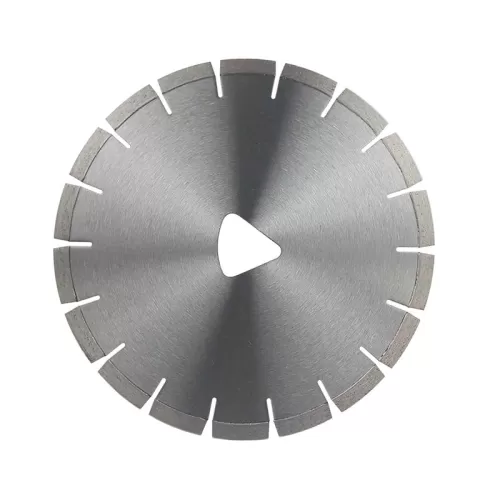

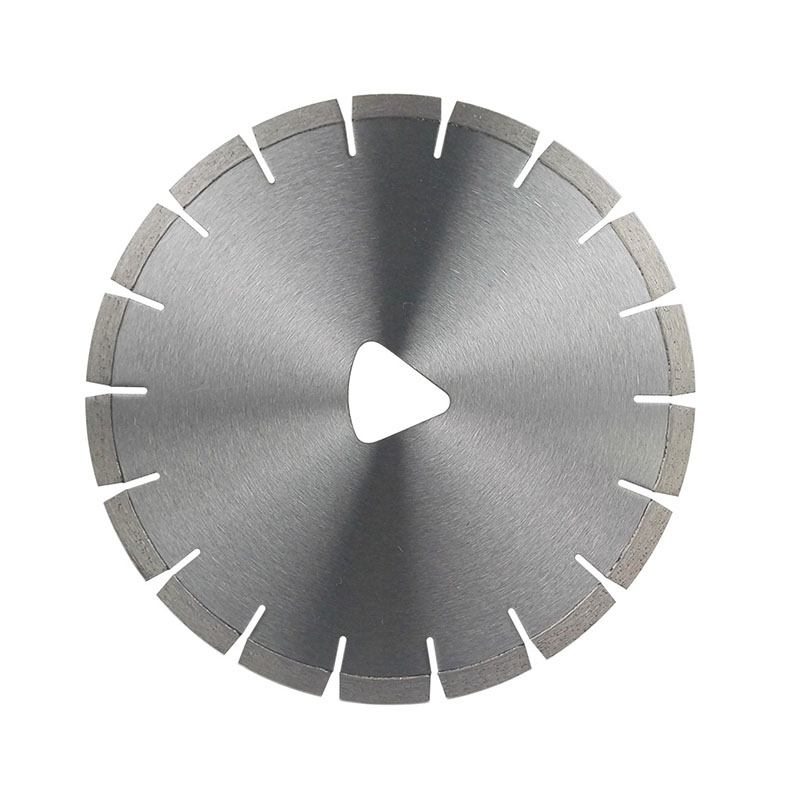

The soff-cut disc is a specially designed diamond saw blade for Husqvarna's Soff- Cutters, with the triangle installing hole. It is for cutting various kinds of concrete, from soft to very hard aggregated concrete. It was manufactured by laser welding technology, having peak performance usage on highways, runways, and paving.
We produce so many kind blades, such as Concrete blade, Asphalt blade, Wall saw blade, Tile blade, Granite blade, Marble blade, Stone turbo blade, and so on.
Soff-Cut has a unique early super entry system that eliminates stress and thus controls random cracking. Using the Soff-Cut method, the control seam is regimented within one or two hours of the final set of the concrete, which is completely different from the traditional cutting after final curing.
Description
These blades are used for cutting green concrete,asphalt-concrete, and other abrasive materials with superior efficiency.
Diamond saw blades are used for cutting on the same day as—or shortly after—concrete pouring to effectively control contraction joints; equipped with an aluminum skid plate, they prevent the concrete from chipping or spalling. All saw blades feature the unique triangular arbor configuration.
Specification
| Diameter | Segment Height | Segment Thicknes | Segment Number | Arbor |
| 150mm | 10mm | 1.8mm | 12 | Triangle |
| 180mm | 10mm | 2.4mm | 12 | Triangle |
| 200mm | 10mm | 2.4mm | 14 | Triangle |
| 250mm | 10mm | 2.6mm | 17 | Triangle |
| 300mm | 10mm | 3.2mm | 21 | Triangle |
| 350mm | 10mm | 3.2mm | 24 | Triangle |
Corediam Manufacturing Facility
Corediam Quality Control System
Which Express company you send? How long can we receive?
We are the official partner of DHL, FedEx, Aramex, UPS, it will take only 3-5 working days after we got your payment.
Delivery time
Our leading time will be about 2 weeks for the batch order.
Package
Each item has its own box, 10pices for one carton.
Laser marking, silk-screening, and OEM packages are all acceptable.
