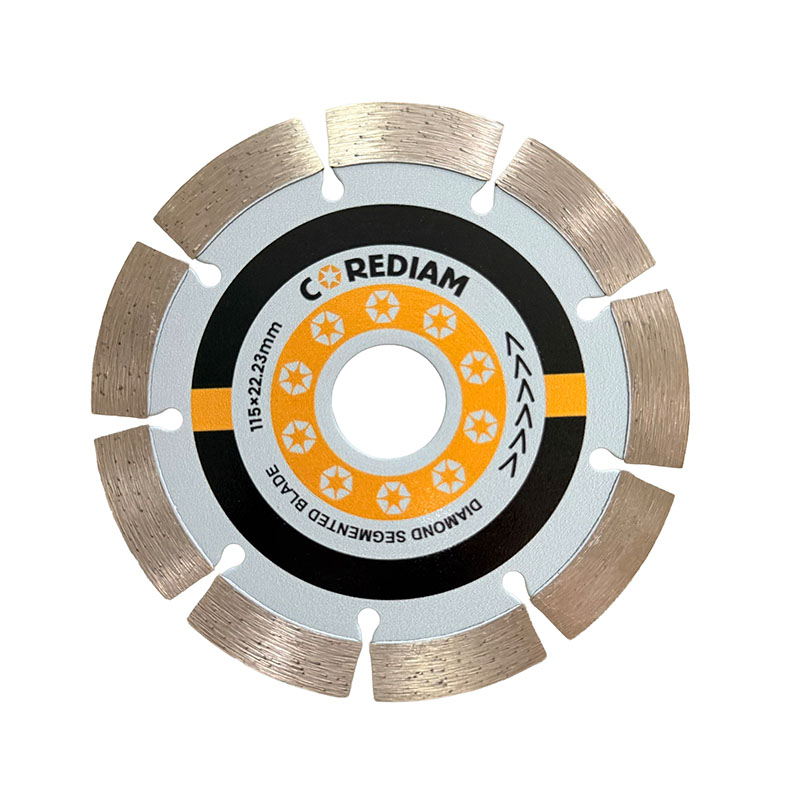

Segmented diamond saw blades are designed for the rapid, rough cutting of construction and masonry materials. They are compatible with equipment such as angle grinders and floor saws,hand-held power saw, and support both dry and wet cutting.Standard diameters range from 105mm to 400mm.
Cutting Materials:
• Concrete
• Brick
• Masonry
• Stone
Features
Segmented Diamond Saw Blade for Angle Grinder General Purpose Cutting Concrete, Block, Paver, Brick, Masonry and Stone, Wet/Dry Cut, Arbor: 22.23/25.4mm
Diameter optional：105mm-400mm 4.5 inch,5 inch,7 inch,9 inch,12 inch,14 inch,16 inch;
Manufacturing Technique: Sinter Hot-pressed Segmented Diamond Saw Blade.
It’s Universal application in dry or wet cutting.
It is designed for fast speed and stable life to cut Concrete, Block, Paver, Brick, Masonry and Stone and other abrasive materials.
Product Parameters
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CGSG10510 | 105mm | 10mm | 2.0mm | 22.23/20mm |
| CGSG11510 | 115mm | 10mm | 2.0mm | 22.23mm |
| CGSG12510 | 125mm | 10mm | 2.0mm | 22.23mm |
| CGSG15010 | 150mm | 10mm | 2.2mm | 22.23mm |
| CGSG18010 | 180mm | 10mm | 2.4mm | 22.23mm |
| CGSG23010 | 230mm | 10mm | 2.6mm | 22.23mm |
| CGSG30010 | 300mm | 10mm | 3.0mm | 25.4/20mm |
| CGSG35010 | 350mm | 10mm | 3.2mm | 25.4mm |
| CGSG40010 | 400mm | 10mm | 3.2mm | 25.4mm |
Why Use Segmented Blades?
The serrations (spaces between the saw segments) help expel cutting dust and cool the blade.
They also provide the blade with some flexibility to prevent cracking during use in demanding conditions.
These blades deliver the roughest cuts and can be used for both dry and wet cutting.
The rougher the material being cut, the wider the grooves should be.
Segmented blades are ideal for concrete, reinforced concrete, asphalt, and all building materials.
Applications
Segmented diamond saw blades cut through concrete, blocks, pavers, bricks, masonry and stone, and other abrasive materials.
Segmented diamond cutting blade is suitable to be used on the angle grinders, circular saws, tile saws, hand-held power saw.
Package
Double Plastic Blister Package with color paper card. Please follow the safety symbols and instructions on the blade and package before the cutting work starts.
Shipping
we could ship by Commercial Express,like UPS,DHL,FedEx,we could also ship by air,by sea,by land as your request.
Company profile
Corediam Tools Co., Ltd, as a high-tech enterprise, concentrates on researching & developing, manufacturing and marketing diamond tools industry.We have the most extensive, innovative and powerful range of diamond tools for Construction, Stone and DIY markets. Corediam strives to be the leading professional supplier in the world by technology innovation.
PRODUCTS
The main product ranges include laser welded saw blade, Ring Saw Blade, sinter hot-pressed saw blade, diamond grinding cup wheel, diamond wire etc. The advanced automatic pressing, sintering, German Dr.Fritsch full-automatic laser welding machinery have been adopted in man
ufacturing lines, and all the products are approved by rigorous inspection and quality control process. Corediam products are also authenticated by Germany MPA standard and European Union EN13236 Standard.
Today Corediam export-sales network has rapidly expanded to more than 50 countries, including North America, Europe, Middle East, Southeast Asia and South America. In China, a perfect long-term strategic cooperative partnership has been established between us and the diamond tools distributors.
As a reliable supplier of global diamond tools industry, we also focus on the professional total solutions of cutting, grinding and drilling for end users. In global, we provide the clients of mega project, such as road bridge, building renovation, railway, airport, stone mine, fire protection, and nuclear power plant, with professional diamond tools product and solutions, which is used in road saw, wire saw, wall saw, core drill, stone saw and grinding machine. It ensures that users can complete a great job.
