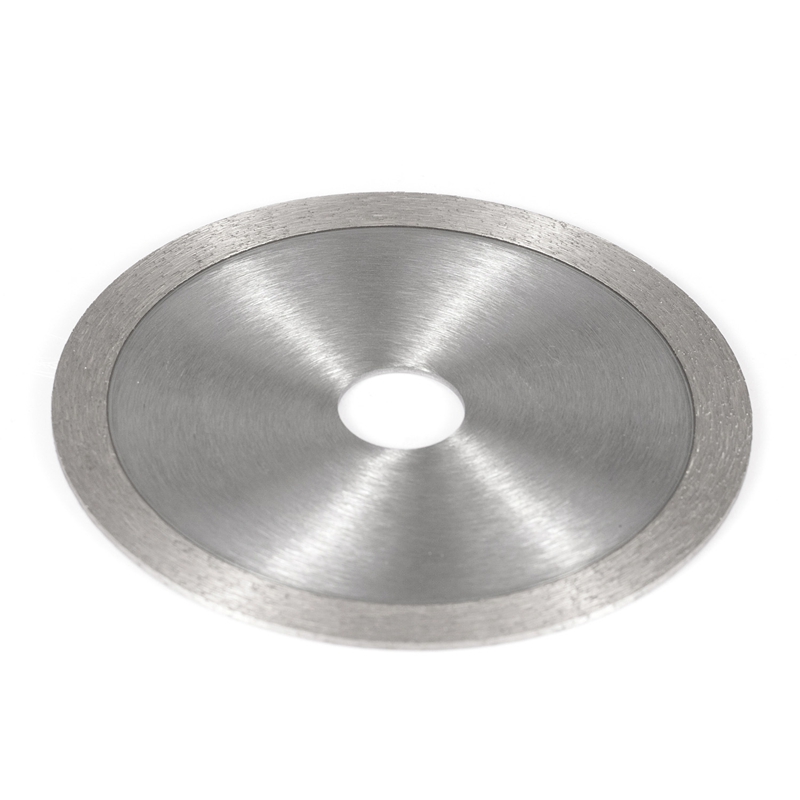

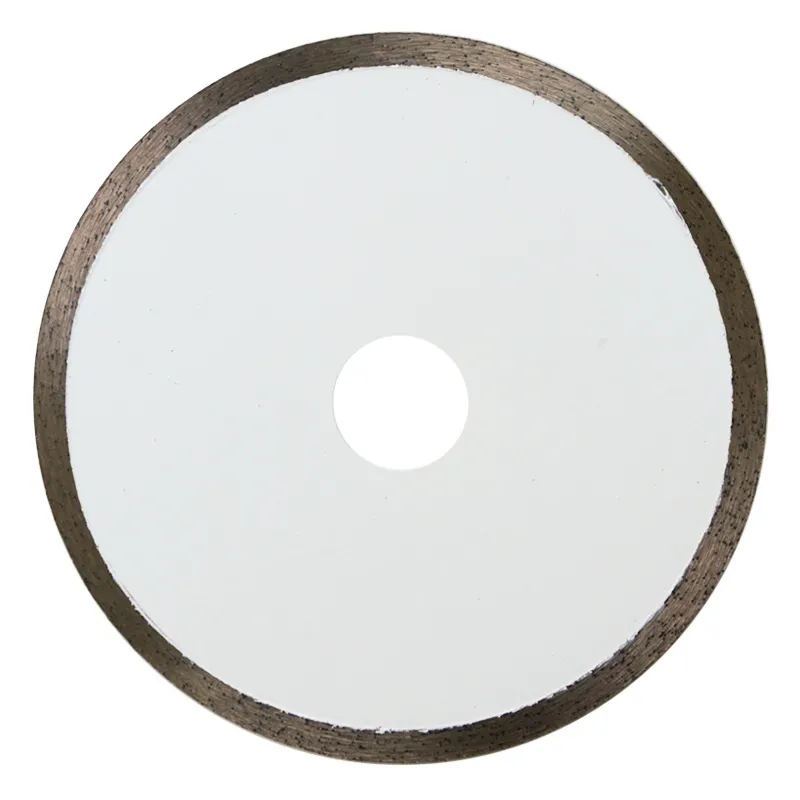

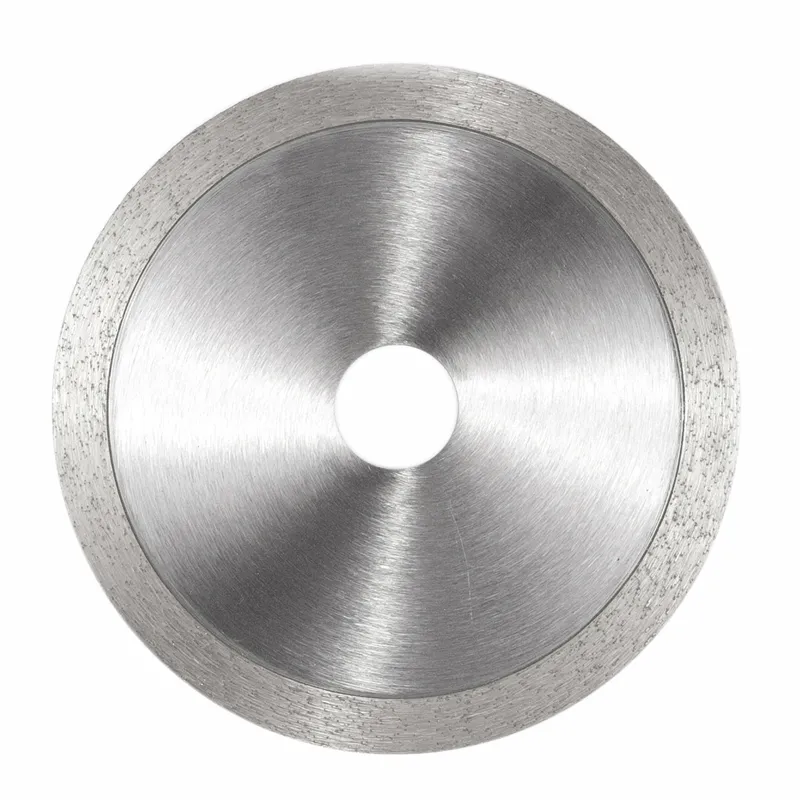

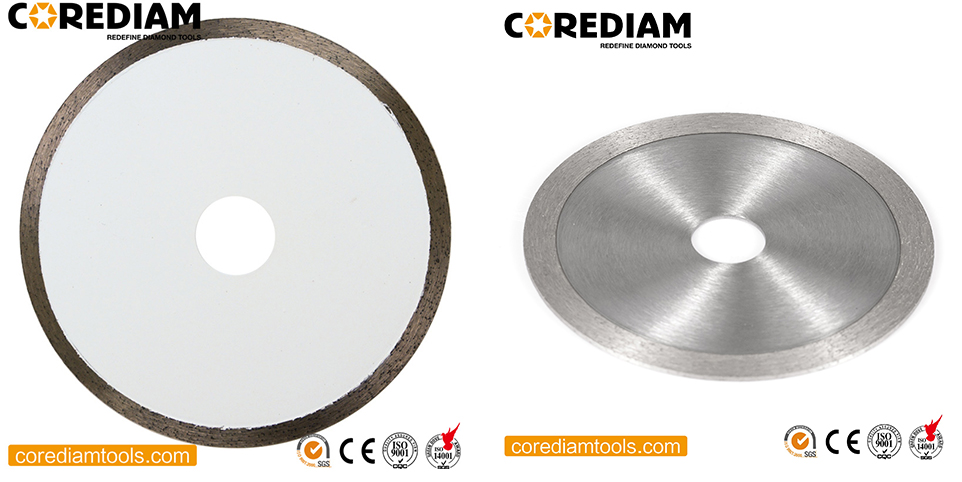

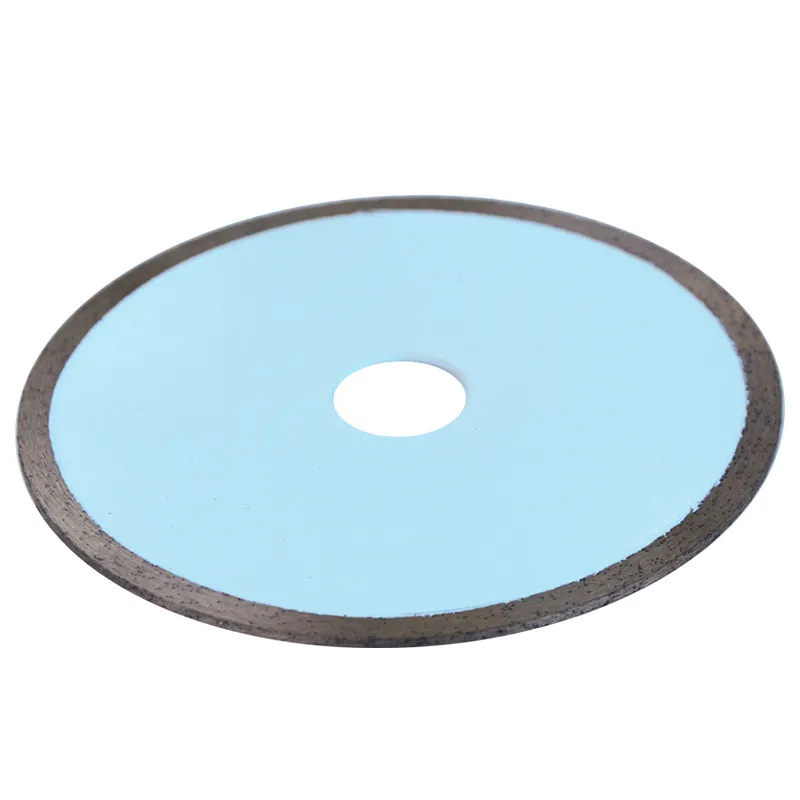

Continuous Tile Cutting Blade is manufacturing by sinter hot-pressing production line. The diamond saw blade is universal wet cutting blades, designed for professionally cutting and nondestructive grooving on ceramic, tile, porcelain, and you also can use it for cutting marble and granite. It can provide very fast, precise, smooth cutting with minimum chipping. Tile saw blades can be installed on Angle Grinder, Circular Saw, Tile Saw equipment. The tile will have a very clear edge during the cutting job.
Application
These blades are used for professionally cutting ceramic tile and porcelain with good efficiency.
Specification
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CTSA105 | 105mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA115 | 115mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA125 | 125mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA150 | 150mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA180 | 180mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA200 | 200mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA230 | 230mm | 7/10mm | 1.7mm | 22.23mm |
| CTSA250 | 250mm | 7/10mm | 1.7mm | 22.23mm |

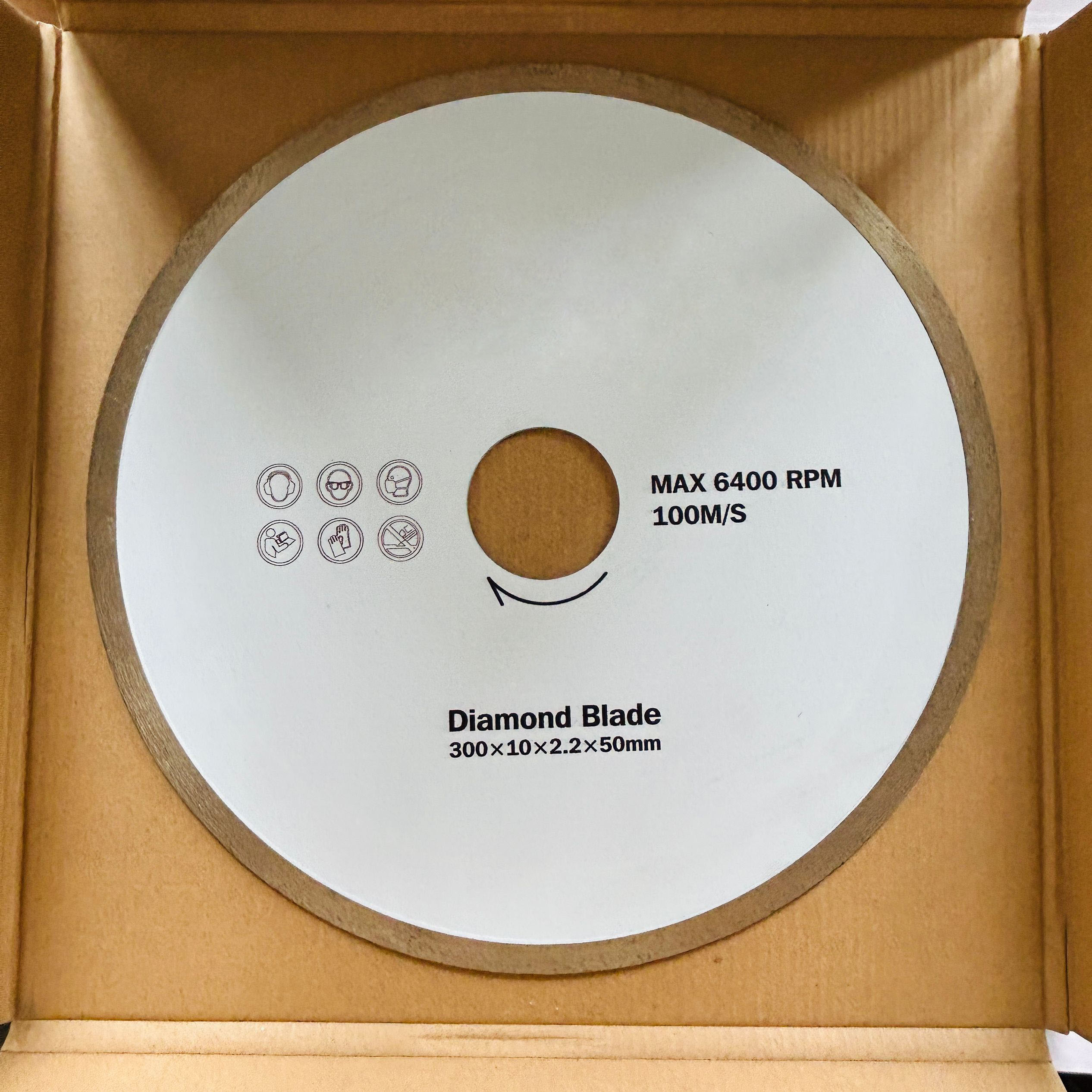

| CTSA300 | 300mm | 7/10mm | 2.2mm | 25.4/50/60mm |
| CTSA350 | 350mm | 7/10mm | 2.4mm | 25.4/50/60mm |
| CTSA400 | 400mm | 7/10mm | 2.6mm | 25.4/50/60mm |
OEM service offered.
Delivery Time
Our leading time will be about 1 week for batch order, if we have the required steel core in stock.

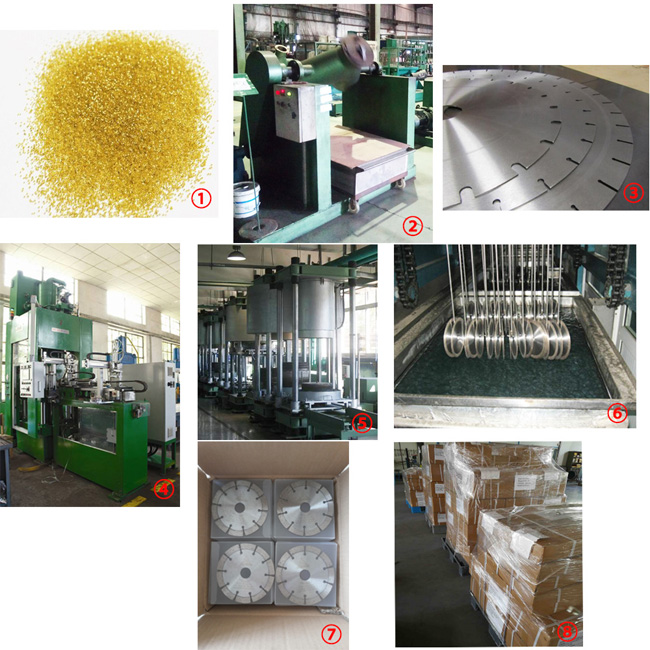

Sinter Hot-pressed Diamond Saw Blade Manufacturing Technique
Packing and Delivery
