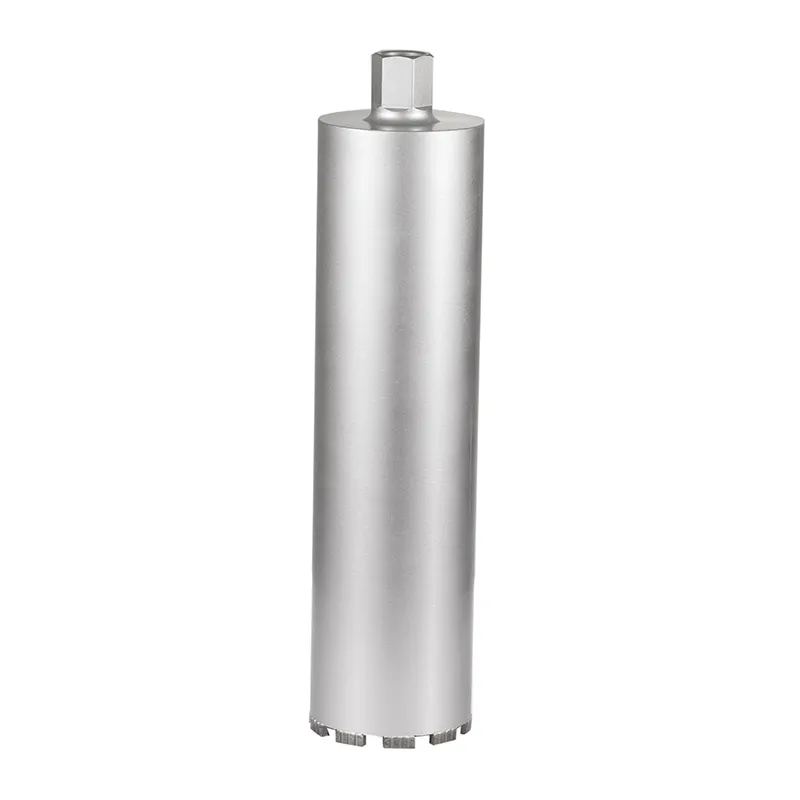

The CWDB turbo core drill bits are laser welded by the advanced Dr. Fritsch full-automatic laser welding machine, which ensures the segments achieve high welding strength.
The available sizes of laser welded turbo core drill are from 1 '' (25mm) to 14''(350mm) in size.
The core drill is used for professionally wet drilling different hardness of concrete, reinforced concrete.

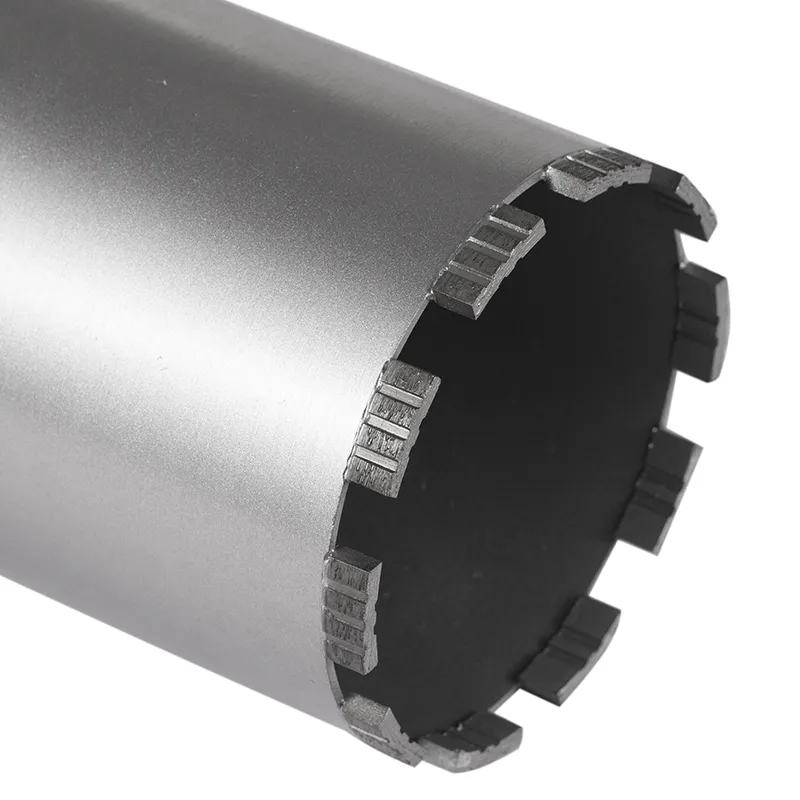

Turbo segment design achieves the sharp and fast drilling performance.
Segments height, working length and connection type can be customized according to your requirement.
Description
Corediam manufactures high-performance diamond core drill bits engineered for professional drilling applications. Meantime the diamond core drill bits have different segment types.
• Laser welded diamond core drill bits
• Turbo segment
• For reinforced concrete
• Diameter: 102mm
• Effective length: 450mm
• Connection: 1 1/4" UNC
Our core drill bits deliver:
Fast drilling speed
Stable drilling performance
Long service life
Clean and accurate holes
Application
Applications: drilling concrete, reinforced concrete, asphalt-over concrete with superior efficiency.
1) Laser welded technology.
2) Segment welding strength guaranteed in drilling works.
3) High quality 20# seamless steel barrel
4) Good control in Dynamic balance during rotation
5) Sharp and fast drilling speed with stable long lifespan
6) Different Quality level to choose
Specification of Laser Welded Diamond Core Drill Bits
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDB02545010 | 25mm | 10 | 11/4"-7 | 450mm |
| CWDB03245010 | 32mm | 10 | 11/4"-7 | 450mm |
| CWDB03645010 | 36mm | 10 | 11/4"-7 | 450mm |
| CWDB04245010 | 42mm | 10 | 11/4"-7 | 450mm |
| CWDB05245010 | 52mm | 10 | 11/4"-7 | 450mm |
| CWDB06245010 | 62mm | 10 | 11/4"-7 | 450mm |
| CWDB06645010 | 66mm | 10 | 11/4"-7 | 450mm |
| CWDB07245010 | 72mm | 10 | 11/4"-7 | 450mm |
| CWDB07645010 | 76mm | 10 | 11/4"-7 | 450mm |
| CWDB08245010 | 82mm | 10 | 11/4"-7 | 450mm |
| CWDB09245010 | 92mm | 10 | 11/4"-7 | 450mm |
| CWDB10245010 | 102mm | 10 | 11/4"-7 | 450mm |
| CWDB11245010 | 112mm | 10 | 11/4"-7 | 450mm |
| CWDB12745010 | 127mm | 10 | 11/4"-7 | 450mm |
| CWDB13245010 | 132mm | 10 | 11/4"-7 | 450mm |
| CWDB15245010 | 152mm | 10 | 11/4"-7 | 450mm |
| CWDB16245010 | 162mm | 10 | 11/4"-7 | 450mm |
| CWDB17245010 | 172mm | 10 | 11/4"-7 | 450mm |
| CWDB18245010 | 182mm | 10 | 11/4"-7 | 450mm |
| CWDB20045010 | 200mm | 10 | 11/4"-7 | 450mm |
| CWDB25045010 | 250mm | 10 | 11/4"-7 | 450mm |
| CWDB30045010 | 300mm | 10 | 11/4"-7 | 450mm |
| CWDB35045010 | 350mm | 10 | 11/4"-7 | 450mm |

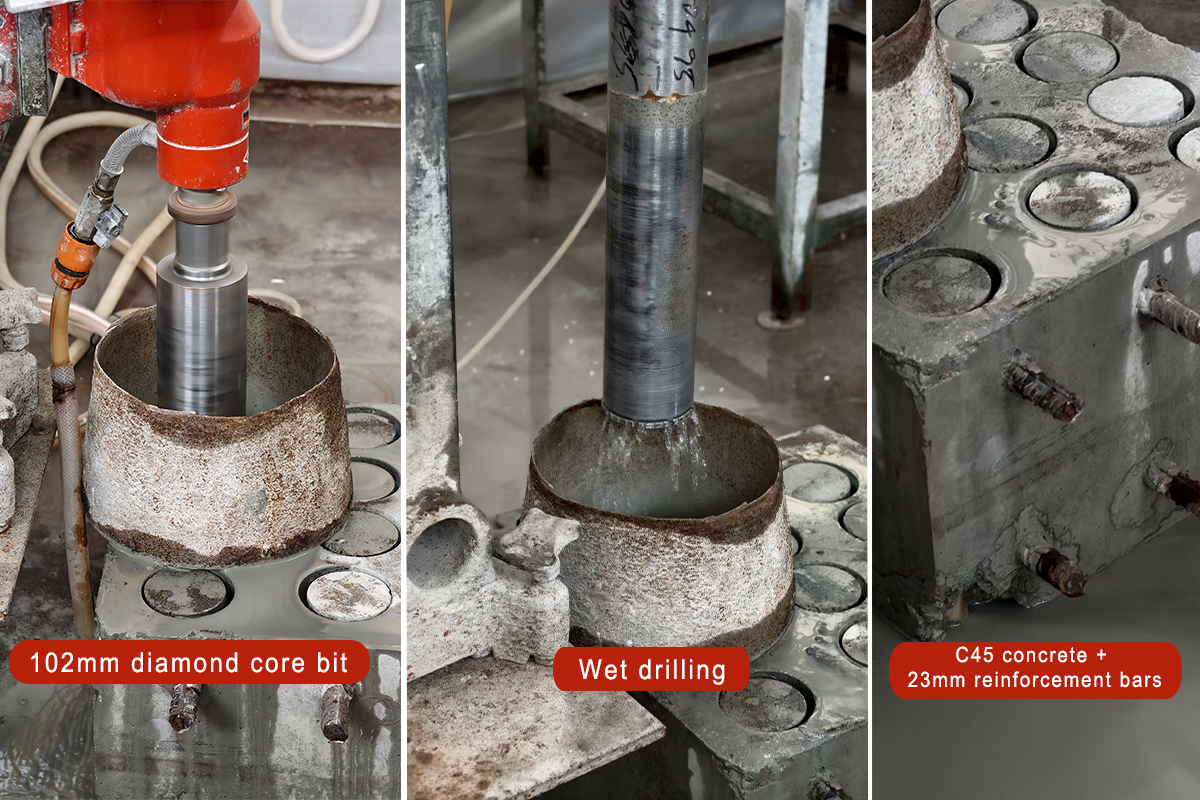

Drilling Performance Test
Test Condition
Core drill: 102mm diamond core bit
Material: C45 concrete + 23mm reinforcement bars
Method: Wet drilling
Result:
• Stable drilling through reinforce concrete
• Fast drilling
• Slow wear of segment
• Smooth hole finish
| Test Item | Result |
| Drilling speed | 150s |
| Hole depth | 200mm |
Dr. Fritsch Automatic Laser Welding Process
Core Drill Barrel Inspection
Corediam Introduction
With years of experience in manufacturing professional diamond tools, Corediam supplies high-performance drilling solutions to distributors, importers, contractors, and OEM brands across global markets. Our advanced production capabilities, rigorous quality control, and flexible customization services enable customers to build reliable product lines while meeting the demands of construction, flooring, and stone-processing industries.
FAQ
What materials can diamond core drill bits drill?
Diamond core drill bits are designed for reinforced concrete, concrete, brick, masonry and stone drilling applications.
What is the difference between wet and dry diamond core drill bits?
Wet core bits use water cooling for longer drilling performance, while dry core bits are designed for convenient handheld drilling without water.
Can you customize diamond core drill bits?
Yes. Corediam provides customized diameter, length, segment types and packaging solutions.
Do you supply OEM diamond core drill bits?
Yes. We support private label production for distributors and tool brands.
