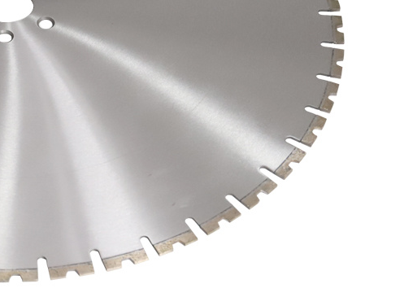

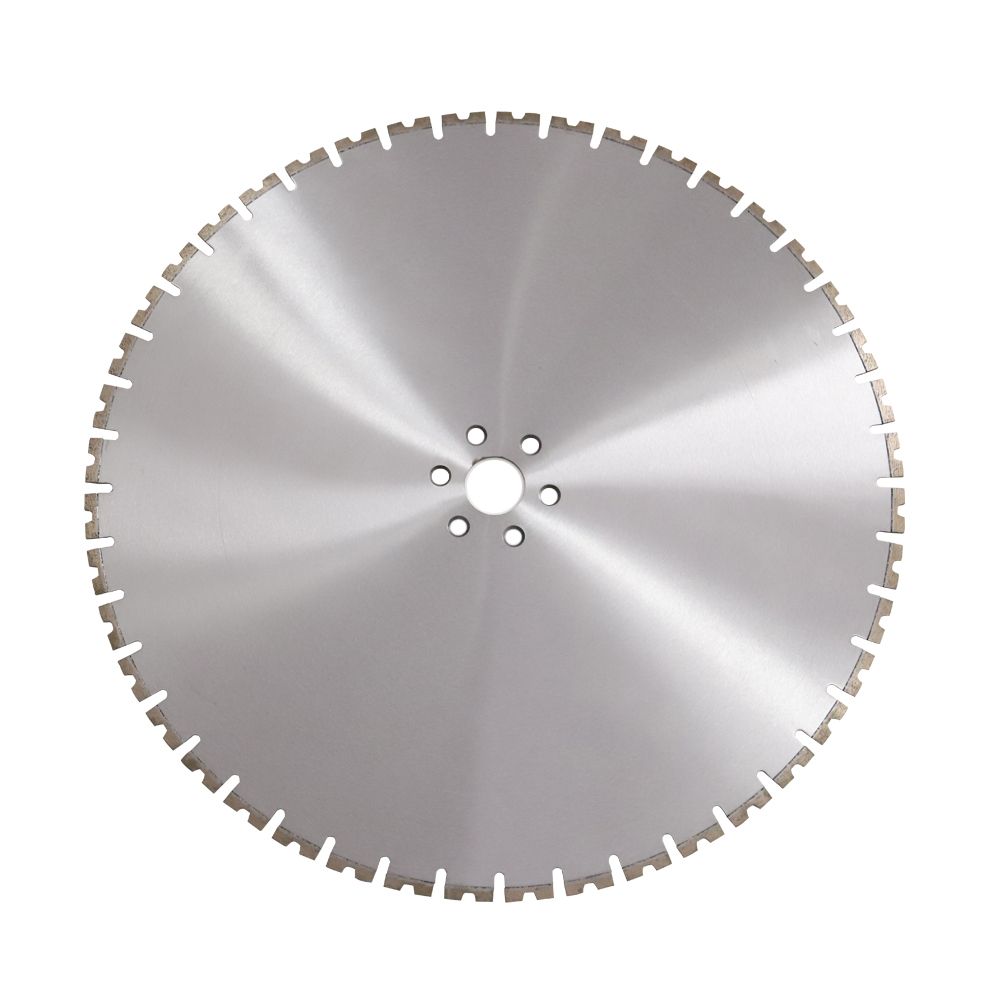

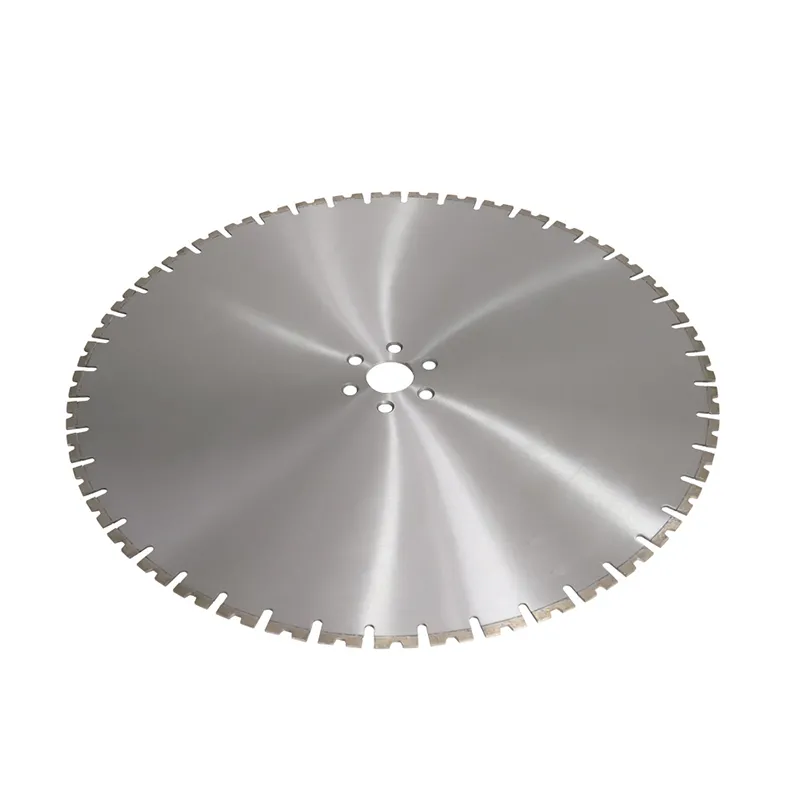

The diameter of laser welded wall saw blade is 800mm. We accept various flange holes manufacturing, In this case, you can fix this wall saw blade to different brand wall sawing machines. We can also supply diameter from 600mm to 1200mm. Segments height of this Laser Wall Saw Welded Blade is 10/12 mm, having high welding strength. It's used for cutting concrete wall, reinforced concrete wall, block wall. As a direct factory, any size could be customized and designed as your request, even 1600mm is available.
Premium and professional quality levels blades options are as your request. Sandwich silent steel core is also available.
Feature
The segment is not easy to fall off during work.
Different grade to choose.

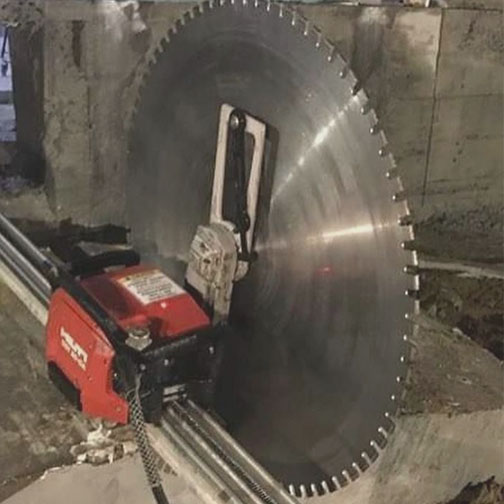

It can be widely used is cutting concrete well, reinforced concrete wall and block wall with superior efficiency.
Specification
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CWLA600 | 600mm | 12mm | 4.5/4.7/5.0mm | 60mm |
| CWLA650 | 650mm | 12mm | 4.5/5.0mm | 60mm |
| CWLA700 | 700mm | 10/12mm | 4.0/4.5mm | 60mm |
| CWLA750 | 750mm | 10/12mm | 4.5/4.7mm | 60mm |
| CWLA800 | 800mm | 10/12mm | 4.5/4.7/5.0/6.0mm | 60mm |
| CWLA900 | 900mm | 10/12mm | 4.5/4.7mm | 60mm |
| CWLA1000 | 1000mm | 10/12mm | 4.5mm | 60mm |
| CWLA1200 | 1200mm | 10/12mm | 4.5mm | 60mm |
| CWLA1600 | 1600mm | 10/12mm | 4.5mm | 60mm |
OEM service offered.
Delivery Time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment. If we don't have stock, the delivery time will depend on the sample production. For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
Wall Saw Blade Package
Each piece is putted into cowhide corrugated box;
Outer package is wooden case, it will guarantee the package complete in local port and avoid any damage for the blades.
Corediam Introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
