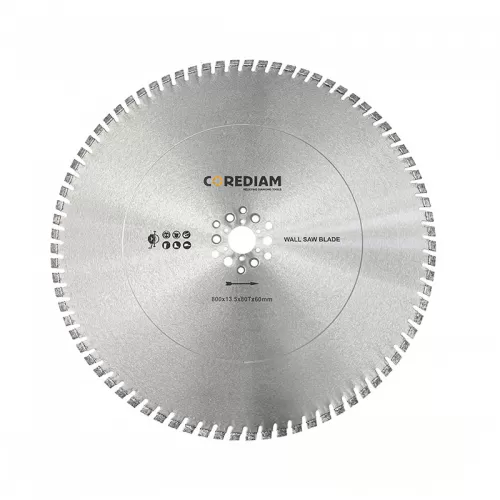

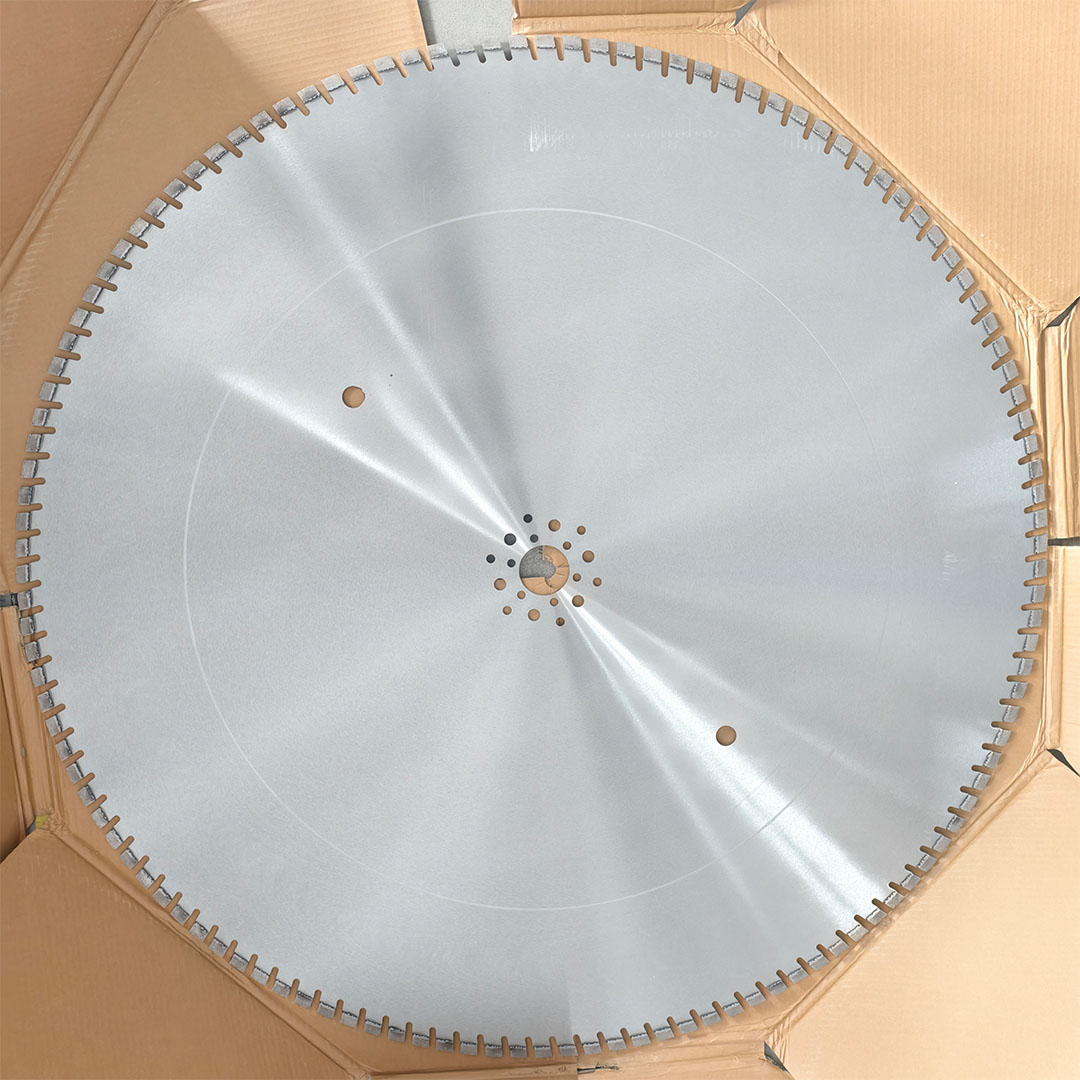

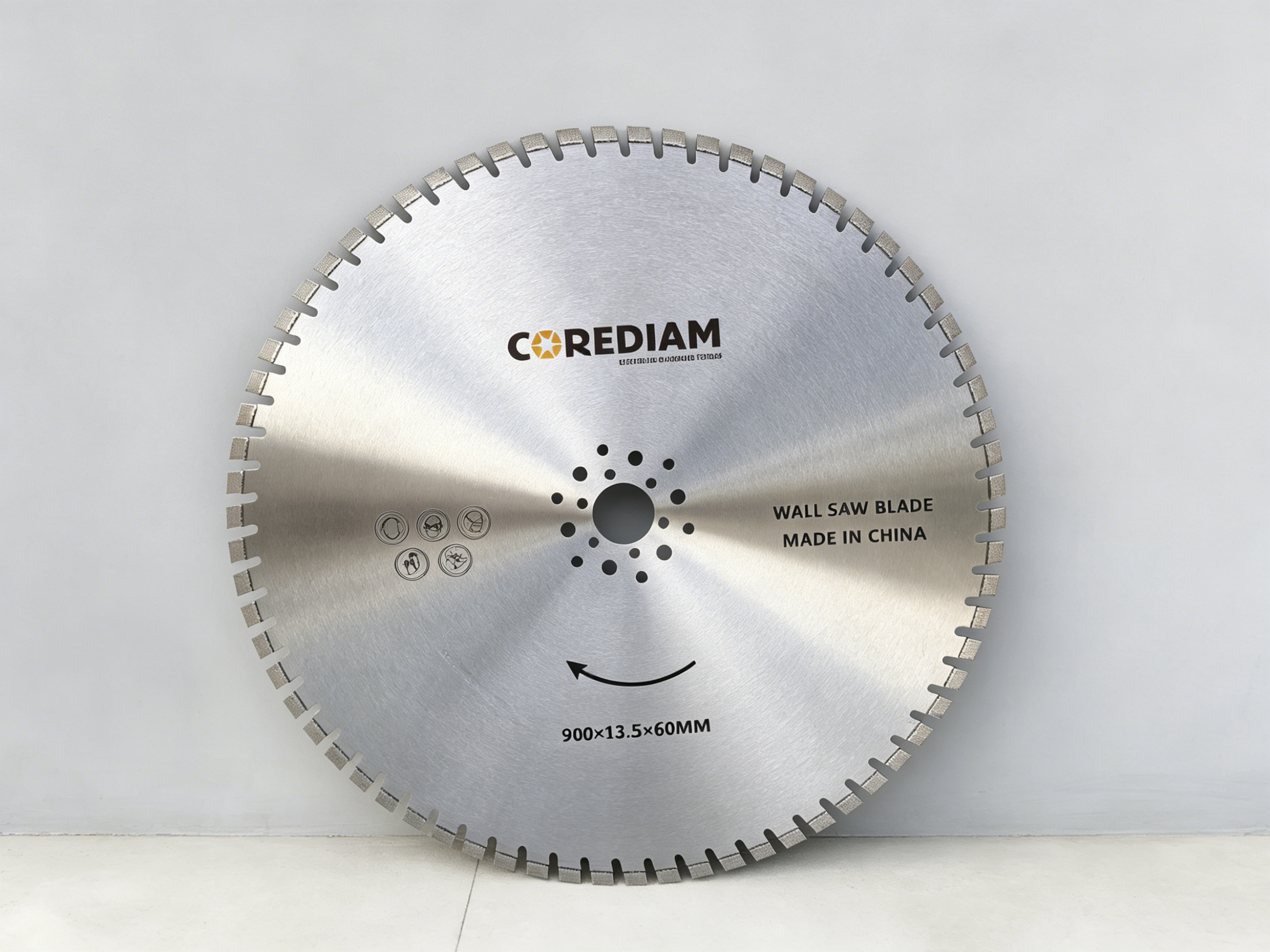

Array Pattern Wall Saw Blade For Reinforced Concrete
This type of blade is laser welded. We accept various flange holes manufacturing, in this case, you can fix this wall saw blade to different brand wall sawing machines.
we can also supply diameter from 600mm to 1200mm. Segments height of this Laser Wall Saw Welded Blade is 12 mm, having high welding strength. It's used for cutting concrete wall, reinforced concrete wall, block wall. Also, we can accept your customization requirements and supply OEM service.
Description
Laser Welded Wall Saw Blade
Laser welded diamond segments for a secure connection between segment and core.
Superior performance in reinforced concrete and concrete wall.
Compatible with different types of wall sawing machines.
○ Diameter: 600mm-1600mm
○ Segment height: 12mm
○ Arbor: 60mm
Specification
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CWLC600 | 600mm | 12mm | 4.0mm | 60mm |
| CWLC650 | 650mm | 12mm | 4.0mm | 60mm |
| CWLC700 | 700mm | 12mm | 4.0mm | 60mm |
| CWLC750 | 750mm | 12mm | 4.0mm | 60mm |
| CWLC800 | 800mm | 12mm | 4.0mm | 60mm |
| CWLC900 | 900mm | 12mm | 4.0mm | 60mm |
| CWLC1000 | 1000mm | 12mm | 4.0mm | 60mm |
| CWLC1200 | 1200mm | 12mm | 4.0mm | 60mm |
| CWLC1600 | 1600mm | 12mm | 4.0mm | 60mm |
OEM service offered.
Features
▶ Laser welded diamond segment
▶ Array Pattern segment
▶ Reinforced concrete and concrete materials
▶ For consistent smooth cutting with excellent cutting speed
▶ Wet cutting
▶ husqvarna、Hilti wall saw machines....
Package
Each piece is putted into cowhide corrugated box;
Outer package is wooden case, it will guarantee the package complete in local port and avoid any damage for the cutting blades.
Cutting Performance
In practical use, the Corediam 800mm laser welded wall saw blade demonstrated excellent durability and cutting efficiency.
▷ Testing conditions: Hilti wall saw
▷ Cutting material: C40 reinforced concrete
▷ Cutting depth: 30 cm
▷ Cutting length: 90–120 meters
▷ Cutting life: Approximately 36 m²
With its stable sharpness and long life, this wall saw blade effectively reduces construction costs and blade replacement frequency, making it particularly suitable for high-intensity construction projects.
