Vacuum Brazed Cup Wheel
Home - Products - Stone Tools - Grinding Cup Wheel - Vacuum Brazed Cup Wheel - Vacuum Brazed Diamond Wheel for Grinding

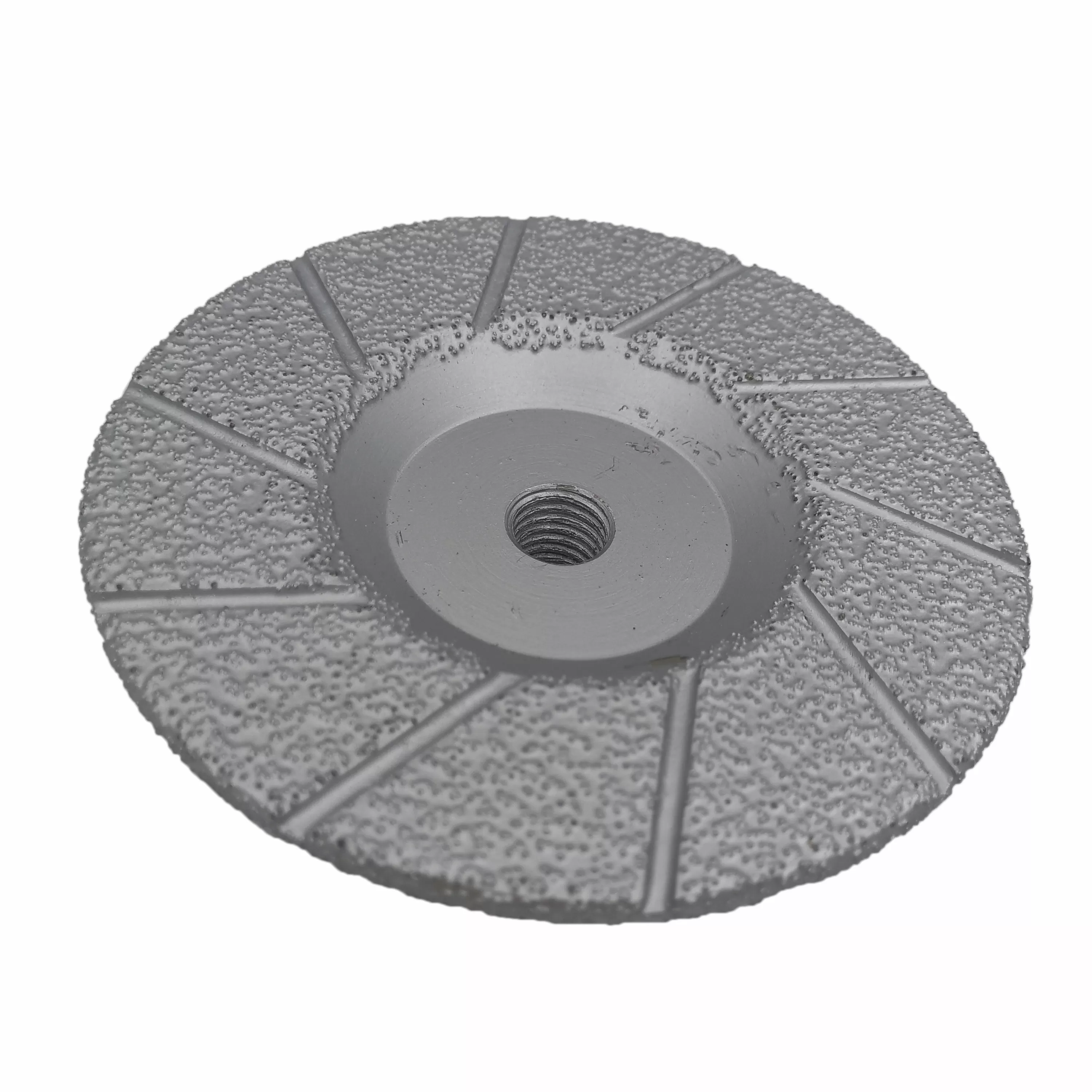

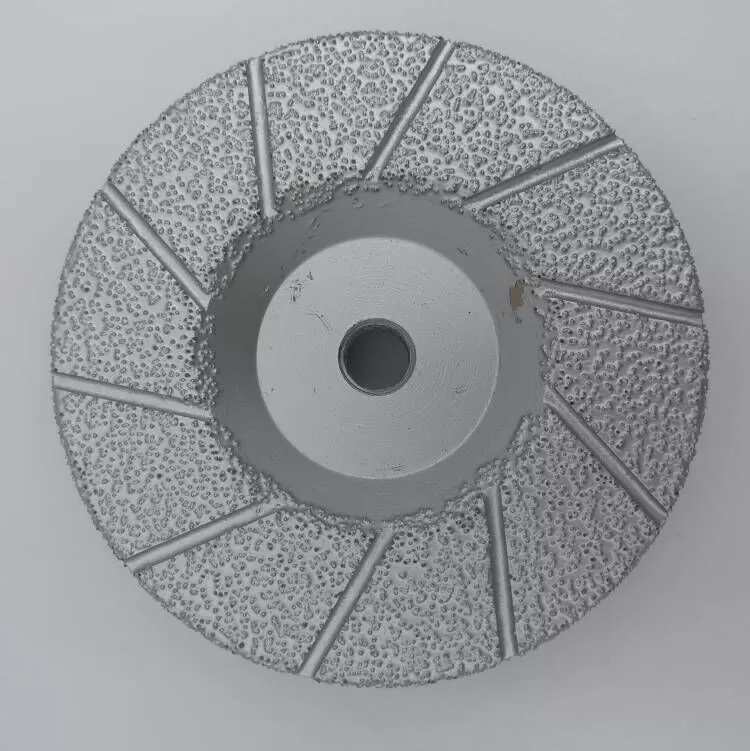

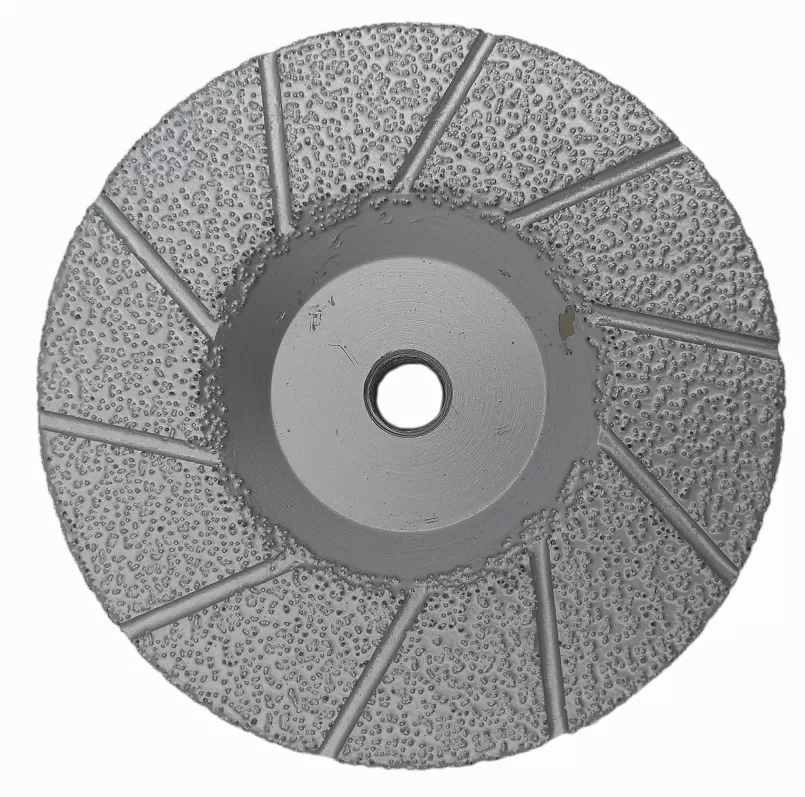

Vacuum Brazed Diamond Wheel for Grinding

The cup wheel is used for grinding the surface of various granite, marble, concrete, etc. With special design and world-advanced technology of diamond brazing, the surface of grinding cup wheel will be free grinding. The grinding effect will be better and the efficiency of grinding will be improved greatly.

Inquire Now
Features: Specification Delivery time Corediam introduction


1. Cup Grinding Wheels with vacuum brazed technology for surface grinding and edge chamfering;
2. Available with Diamond bond and Hard Metal bond vacuum brazed on the face and edge;
3. Designed for working on soft to hard stone, concrete and metal surface;
4. Could be used for Wet or Dry.
5. Special shapes and sizes available upon request

Vacuum Brazed Diamond Wheel for Grinding


Item No.Diameter(mm)Thickness(mm)GritConnection
SVWT1001002.0-5.030/40#7/8*-5/8* / M14 / 5/8" -11
SVWT1151152.0-5.030/40#7/8*-5/8* / M14 / 5/8" -11
SVWT1251252.0-5.030/40#7/8*-5/8* / M14 / 5/8" -11
SVWT1501502.0-5.030/40#7/8*-5/8* / M14 / 5/8" -11

Vacuum Brazed Diamond Wheel for Grinding

Delivery time

Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.

For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

Vacuum Brazed Diamond Wheel for Grinding

Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.

Vacuum Brazed Diamond Wheel for Grinding
