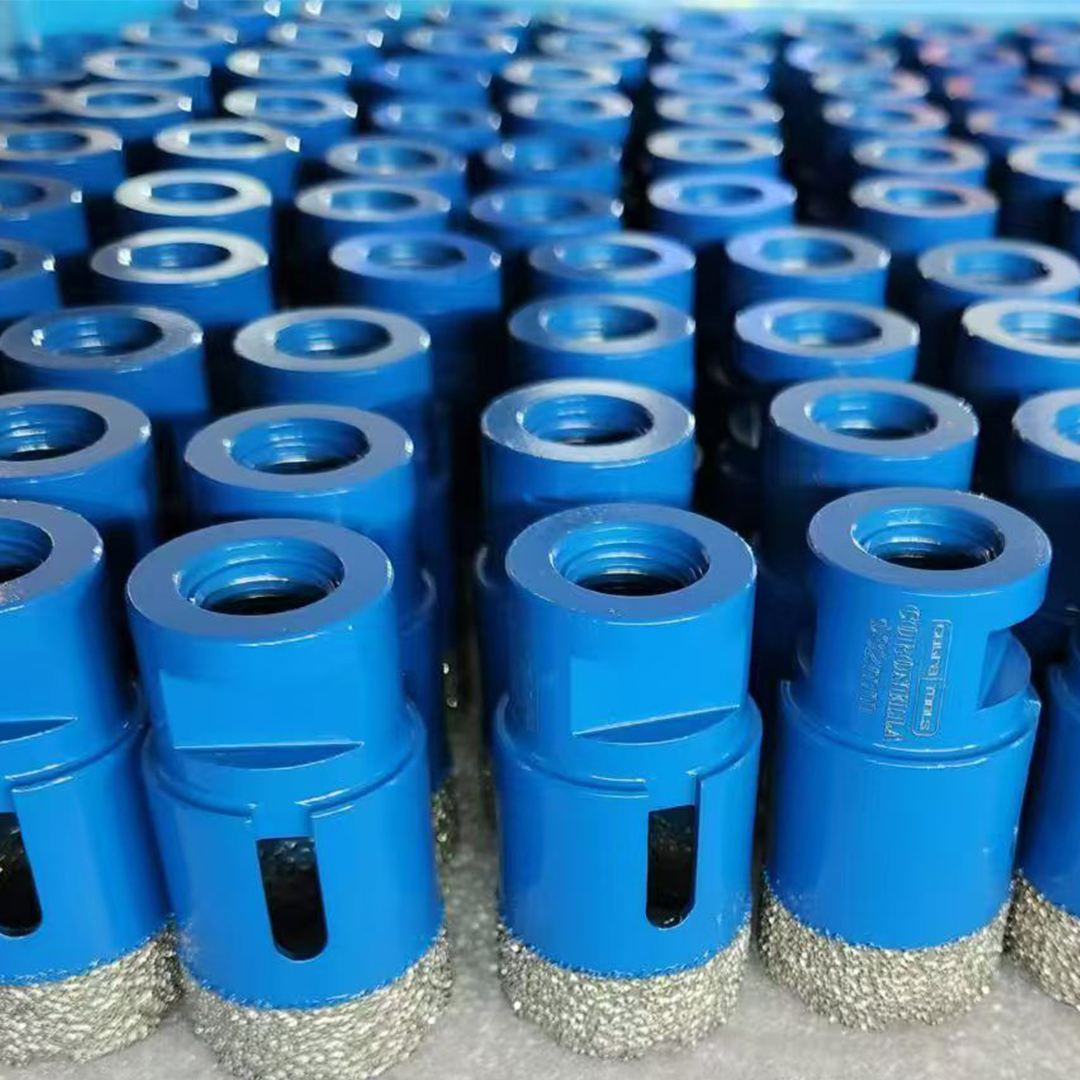

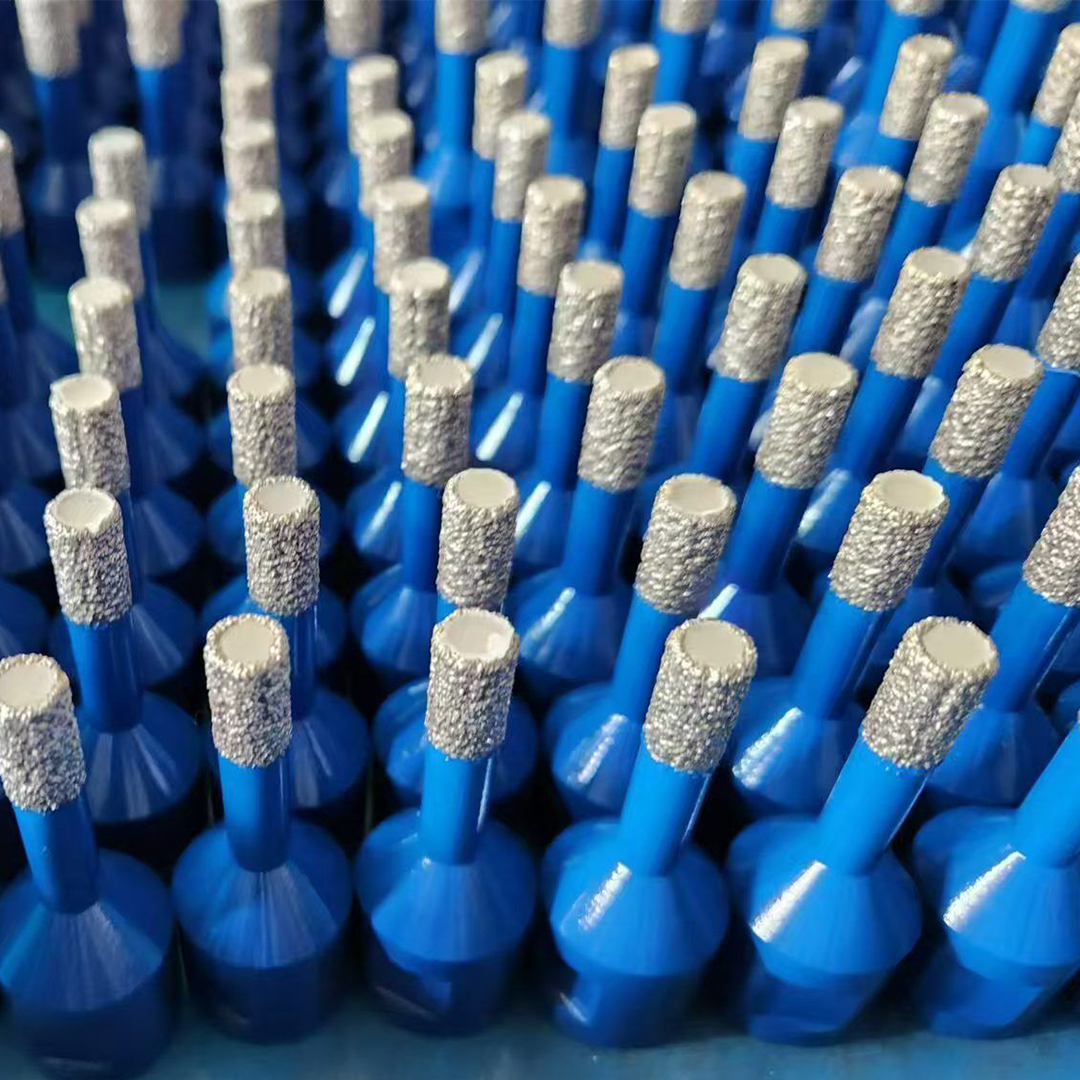

Vacuum brazed core drill is brazed in vacuum equipment, which ensures diamonds have the good combination with the tube.
Common sizes of vacuum brazed core bit are ranging from 5mm to 100mm in size.
Vacuum brazed core bits is used for professionally drilling kinds of marble,porcelain,tiles.
Specification
| Item No. | Diameter | Segment Height | Arbor | Total Length |
| SVCD005 | 5mm | 10mm | M14 | 60mm |
| SVCD006 | 6mm | 10mm | M14 | 60mm |
| SVCD008 | 8mm | 10mm | M14 | 60mm |
| SVCD010 | 10mm | 10mm | M14 | 60mm |
| SVCD012 | 12mm | 10mm | M14 | 60mm |
| SVCD014 | 14mm | 10mm | M14 | 60mm |
| SVCD016 | 16mm | 10mm | M14 | 60mm |
| SVCD020 | 20mm | 15mm | M14 | 60mm |
| SVCD025 | 25mm | 15mm | M14 | 75mm |
| SVCD028 | 28mm | 15mm | M14 | 75mm |
| SVCD030 | 30mm | 15mm | M14 | 75mm |
| SVCD035 | 35mm | 15mm | M14 | 75mm |
| SVCD040 | 40mm | 15mm | M14 | 75mm |
| SVCD045 | 45mm | 15mm | M14 | 75mm |
| SVCD050 | 50mm | 15mm | M14 | 75mm |
| SVCD055 | 55mm | 15mm | M14 | 75mm |
| SVCD060 | 60mm | 15mm | M14 | 75mm |
| SVCD065 | 65mm | 15mm | M14 | 75mm |
| SVCD070 | 70mm | 15mm | M14 | 75mm |
| SVCD075 | 75mm | 15mm | M14 | 75mm |
| SVCD080 | 80mm | 15mm | M14 | 75mm |
| SVCD090 | 90mm | 15mm | M14 | 75mm |
| SVCD100 | 100mm | 15mm | M14 | 75mm |
Features
Manufacturer technology: Vacuum brazing
Suitable: drilling tile, granite, marble and other natural stones with superior efficiency.
Advantage: excellent drilling speed and reasonable lifespan.
Drilling performance: drill the stones with a clear edge.
Delivery
1 weeks for samples after order confirmed.
2-3 weeks for batch order after payment confirmed.
We could ship by Commercial Express,like UPS,DHL,FedEx,we could also ship by air,by sea,by land as your request.

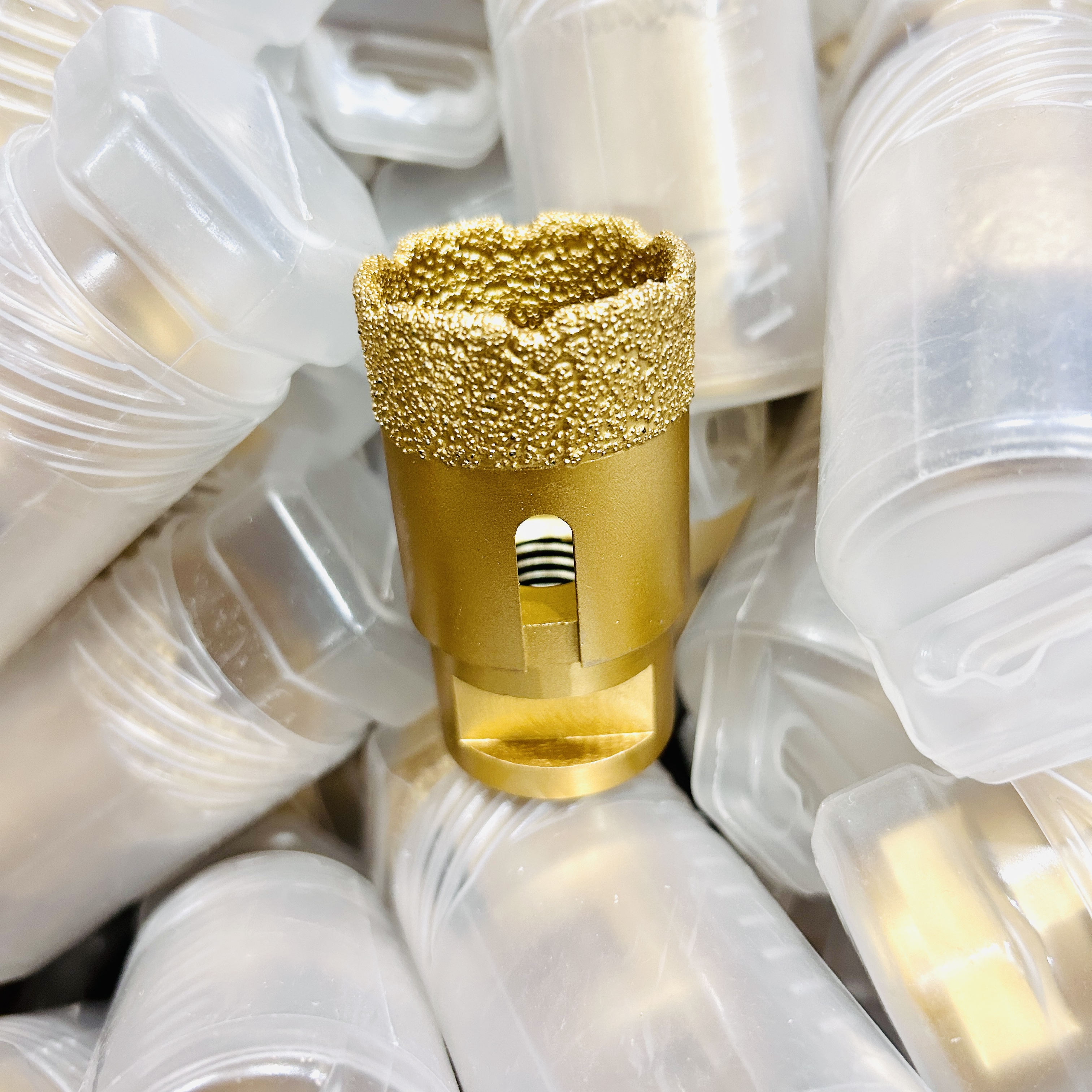

OEM package
Besides the neutral package, we have the OEM finishing package.
Single plastic bucket; Tool box also available.
