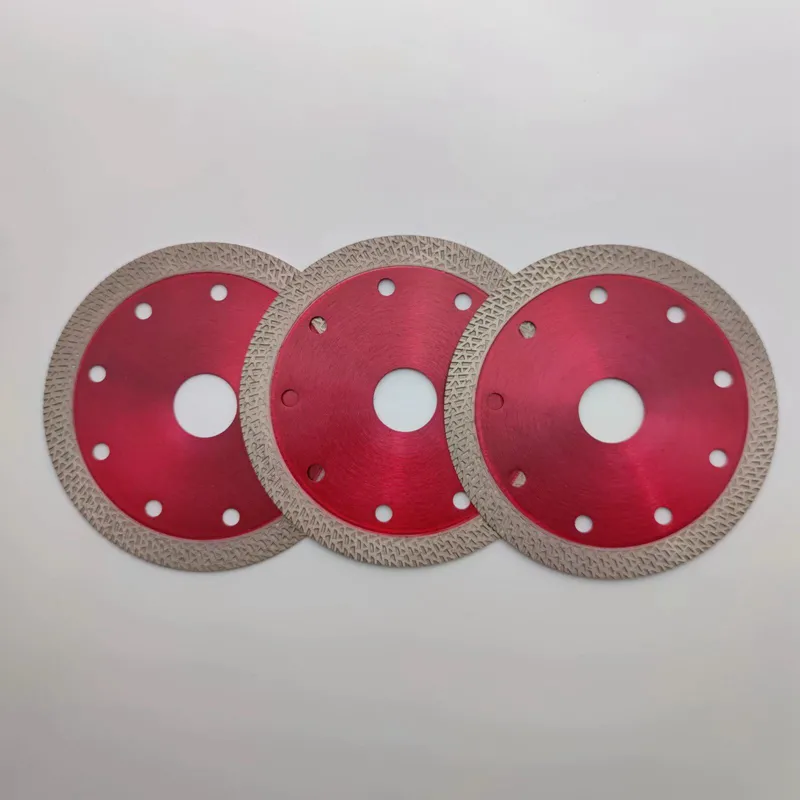

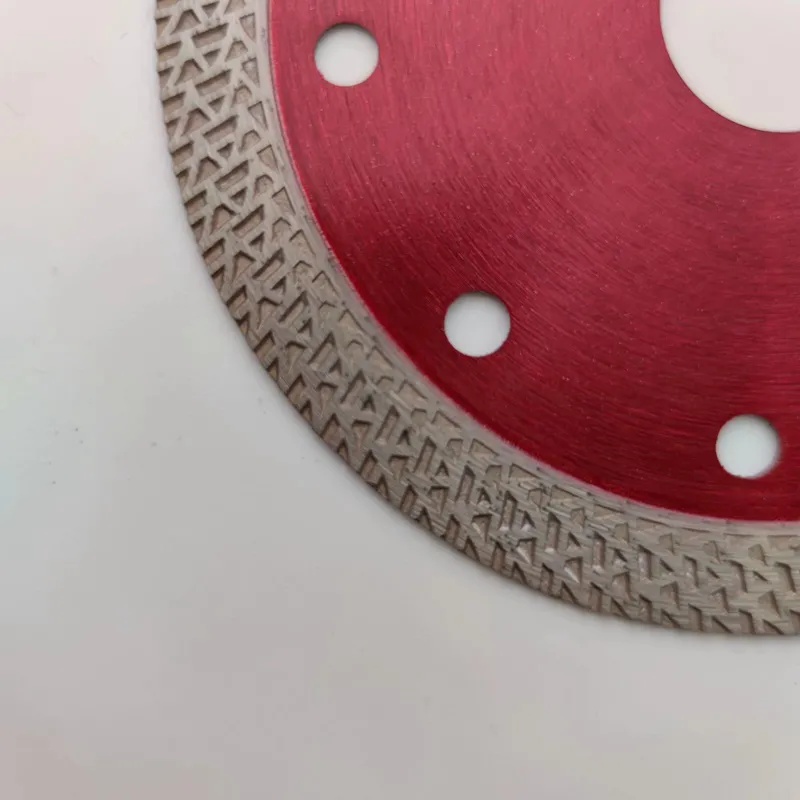

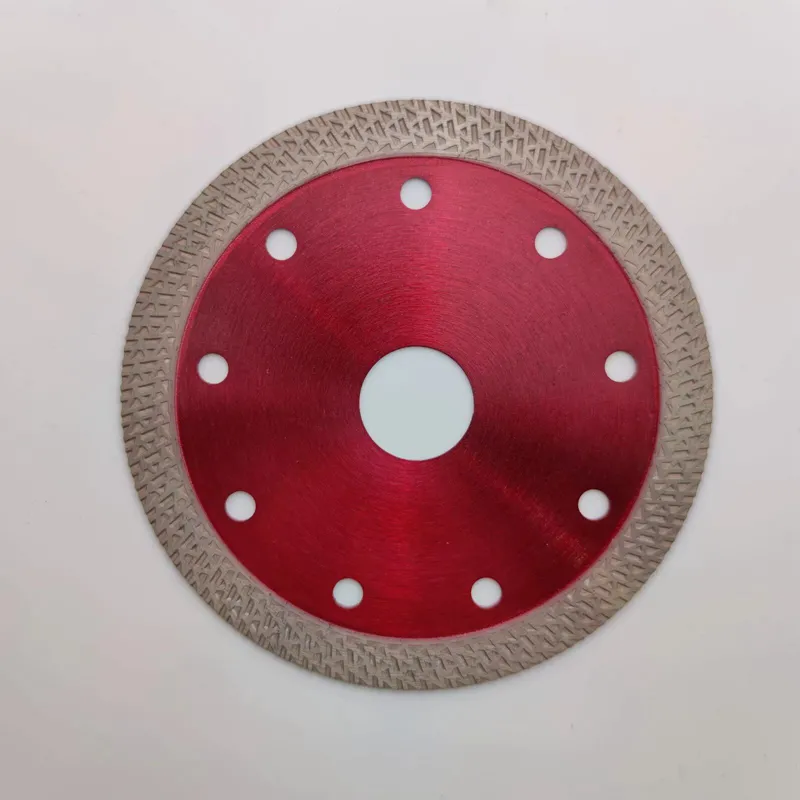

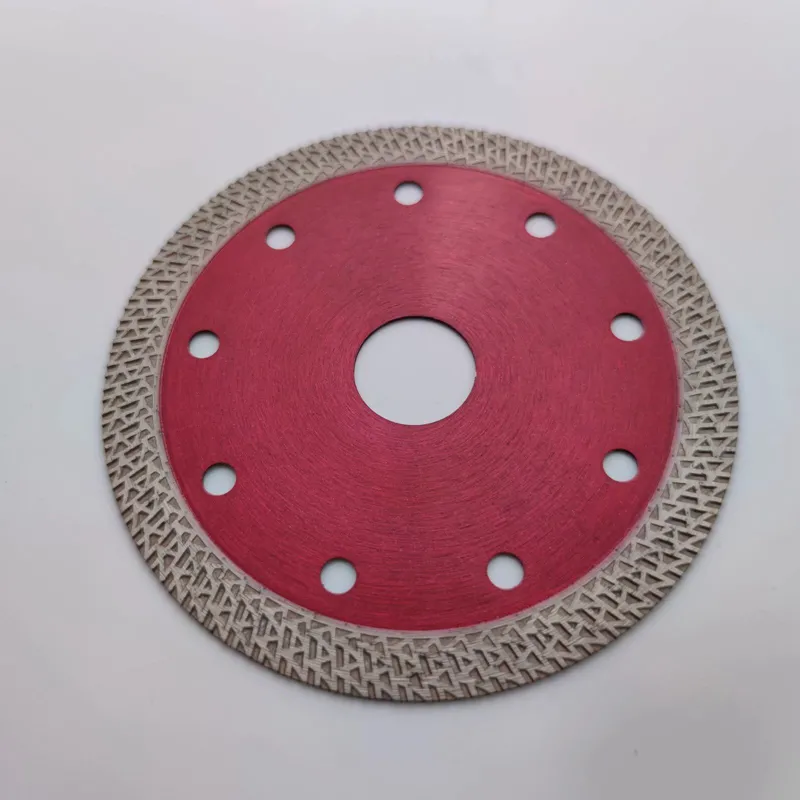

K Turbo Tile Diamond Blade:
Super thin blade is sinter hot-pressed, it has a longer cutting life than another normal sinter Hot-pressed blade.
Designed professionally for cutting hard tile, ceramic tile, porcelain, this Tile blade is chosen soft bond, getting easier, smoother, faster, and chipping-free cutting performance.
• Diameter: 105mm-230mm
• Segment Height: 10mm
• Compatible Equipment: Angle grinder, Circular saw, Tile saw
Features
1. Excellent cutting speed.
2. Chipping-free cutting performance.
3. Light and easily-carried.
4. The cooling holes on the core can reduce the temperature during cutting.
5. Long cutting life.
Delivery Time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment. If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
Equipment
Diamond K turbo diamond blades are primarily used with hand-held angle grinders for cutting ceramic tiles.
During cutting, ensure proper water cooling to prevent overheating and wear, and maintain a steady cutting speed to avoid chipping or cracking the tiles. Always wear safety gear like goggles and gloves for protection.

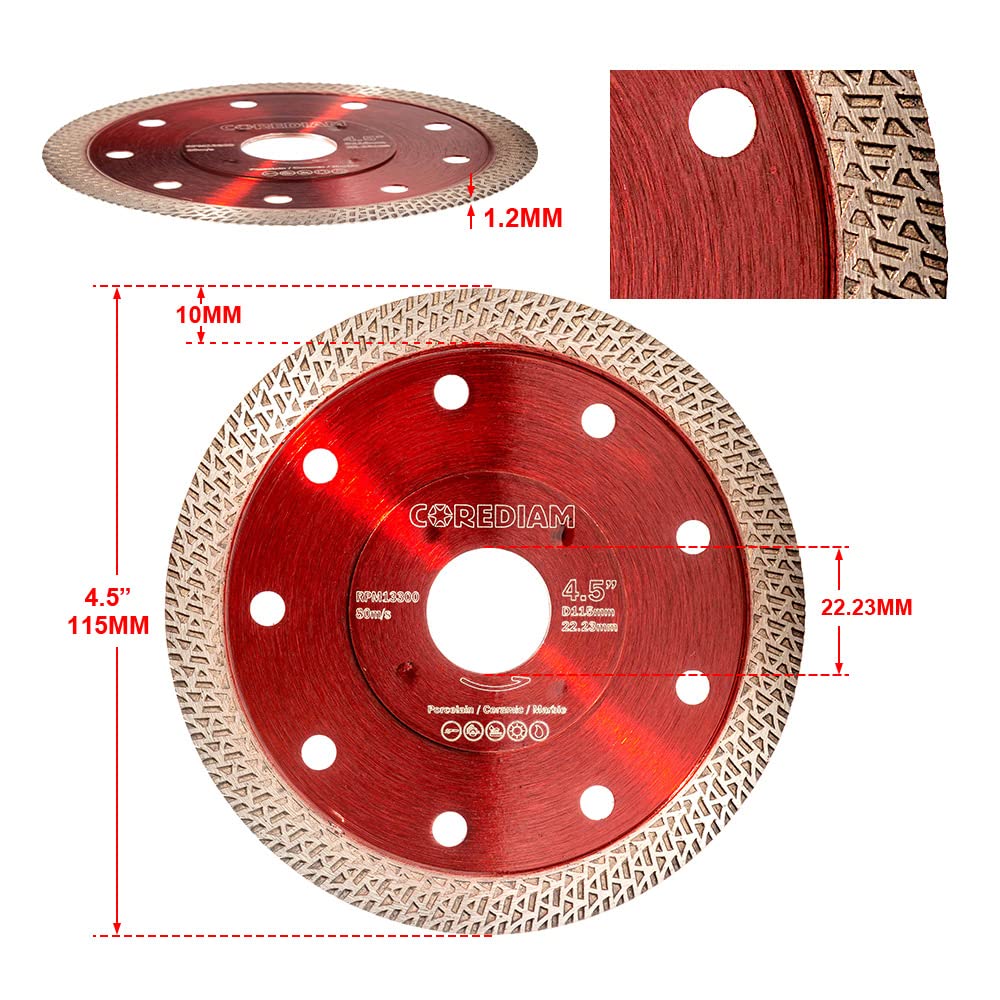

Specification
| Item No. | Diameter | Segment Height | Segment Thickness | Arbor |
| CTSK10510 | 105mm | 10mm | 1.2mm | 22.23/20mm |
| CTSK11010 | 110mm | 10mm | 1.2mm | 22.23/20mm |
| CTSK11510 | 115mm | 10mm | 1.2mm | 22.23mm |
| CTSK12510 | 125mm | 10mm | 1.2mm | 22.23mm |
| CTSK18010 | 180mm | 10mm | 1.8mm | 22.23mm |
| CTSK23010 | 230mm | 10mm | 1.8mm | 22.23mm |
OEM Package

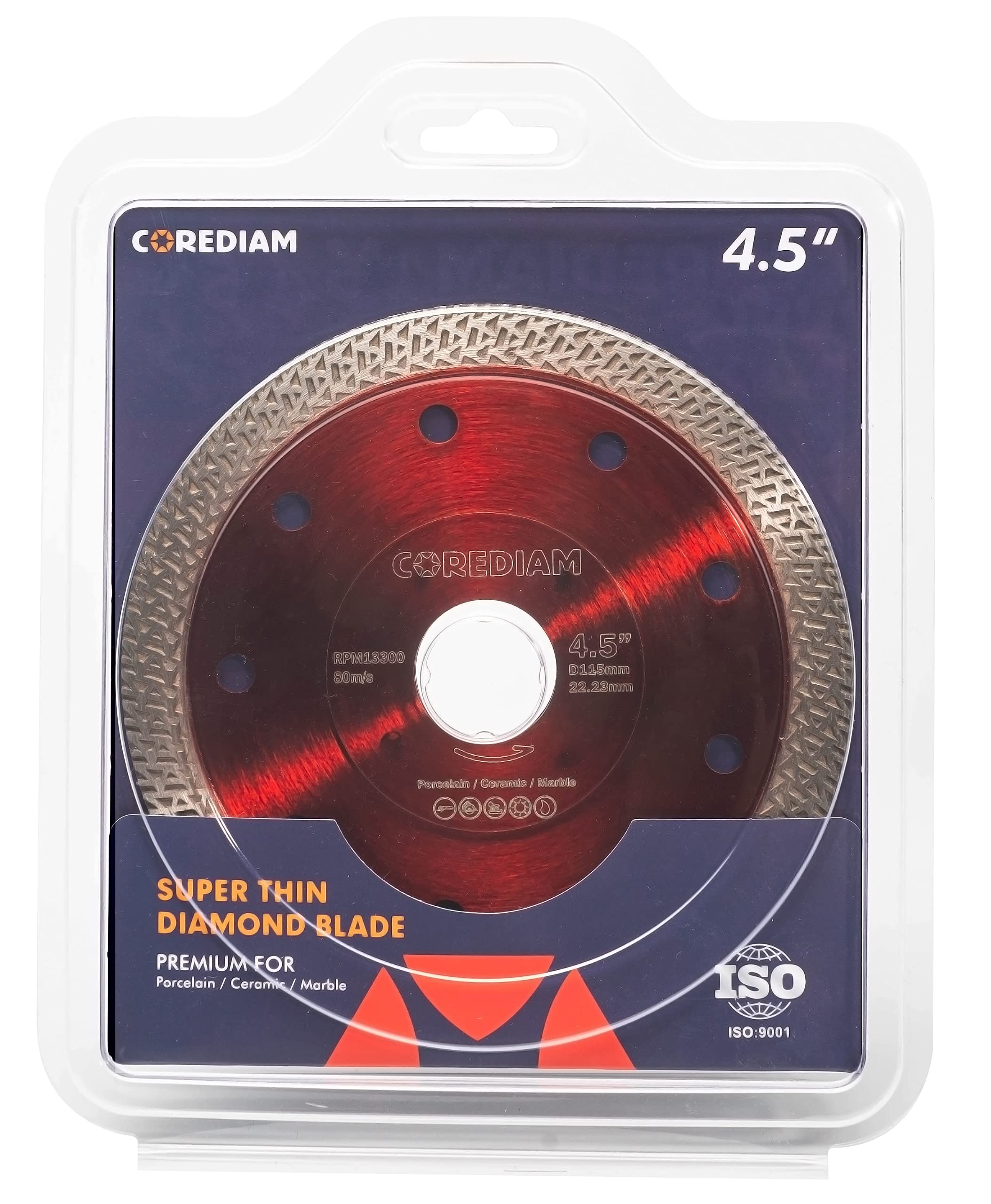

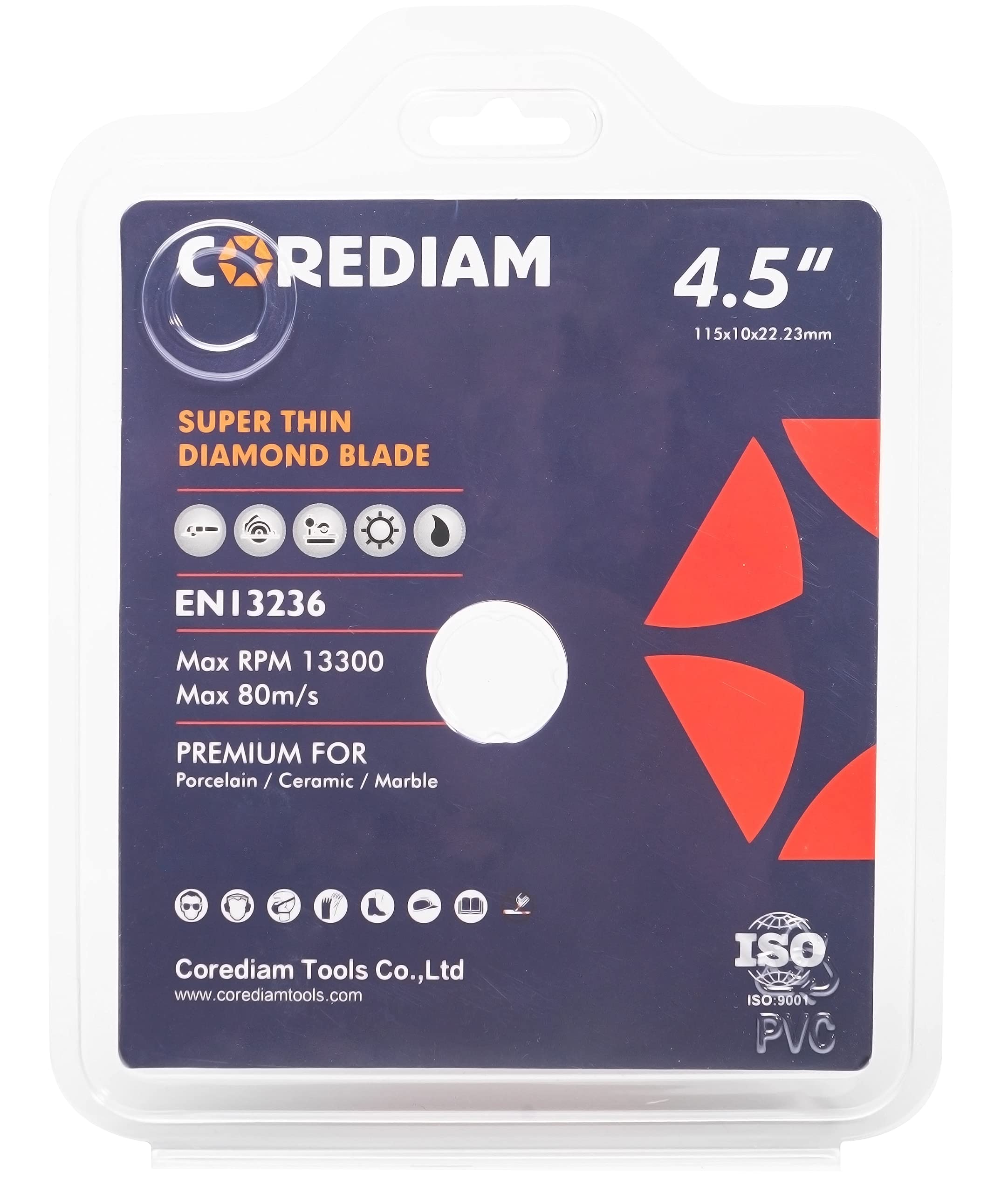

Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
