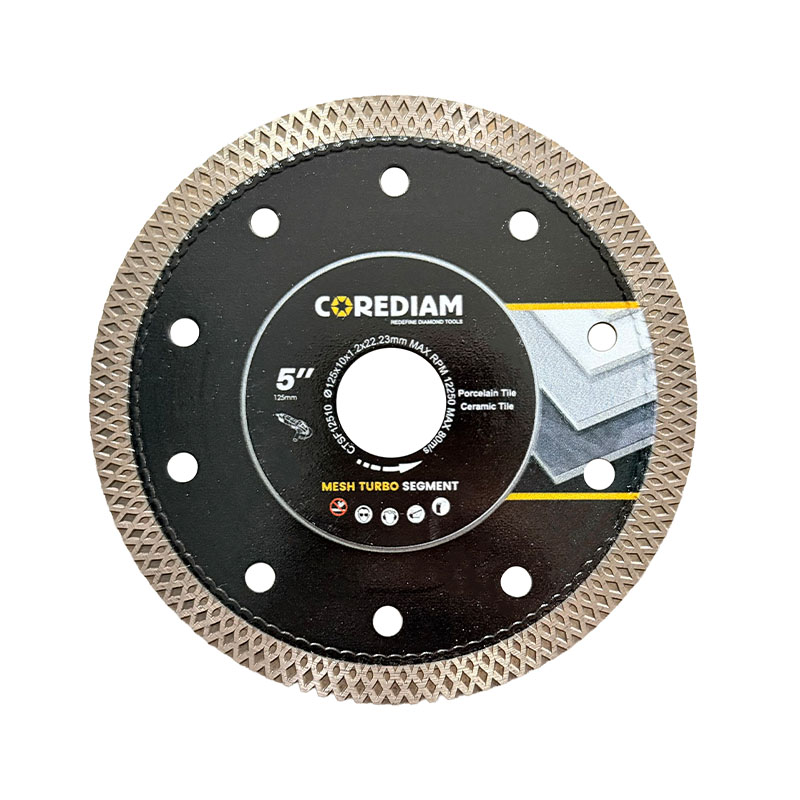

Mesh Turbo Tile Diamond Blade:
Super thin blade is sinter hot-pressed, it has a longer cutting life than another normal sinter Hot-pressed blade.
Designed professionally for cutting hard tile, ceramic tile, porcelain, this Tile blade is chosen soft bond, getting easier, smoother, faster, and chipping-free cutting performance.
• Diameter: 125mm 5"
• Segment Height: 10mm
• Segment thickness: 1.2mm
• Arbor: 22.23mm
• Compatible Equipment: Angle grinder, Circular saw, Tile saw
Description
Thin sintered mesh turbo diamond blade for angle grinders, made for cutting hard material such as porcelain tile,ceramic tile. At just 1.2mm thick it cuts fast and clean.
1. Chipping-free cutting performance.
2. Light and easily-carried.
3. The cooling holes on the core can reduce the temperature during cutting.
4. Long cutting life.
Specification
| Item No. | Diameter | Segment Height | Segment Thickness | Arbor |
| CTSF10510 | 105mm | 10mm | 1.2mm | 22.23/20mm |
| CTSF11010 | 110mm | 10mm | 1.2mm | 22.23/20mm |
| CTSF11510 | 115mm | 10mm | 1.2mm | 22.23mm |
| CTSF12510 | 125mm | 10mm | 1.2mm | 22.23mm |
| CTSF18010 | 180mm | 10mm | 1.8mm | 22.23mm |
| CTSF23010 | 230mm | 10mm | 1.8mm | 22.23mm |
Equipment
Diamond mesh turbo diamond blades are primarily used with hand-held angle grinders for cutting ceramic tiles.
During cutting, ensure proper water cooling to prevent overheating and wear, and maintain a steady cutting speed to avoid chipping or cracking the tiles. Always wear safety gear like goggles and gloves for protection.
OEM Package
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
