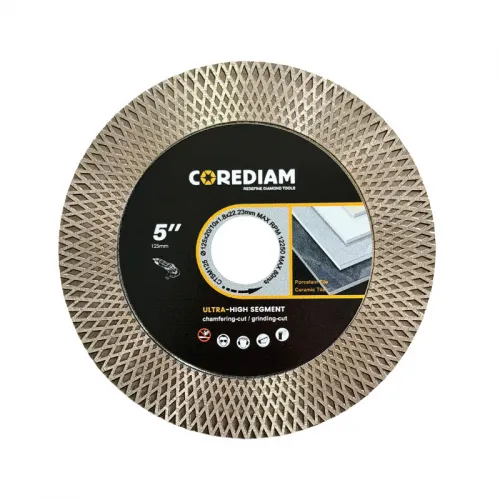

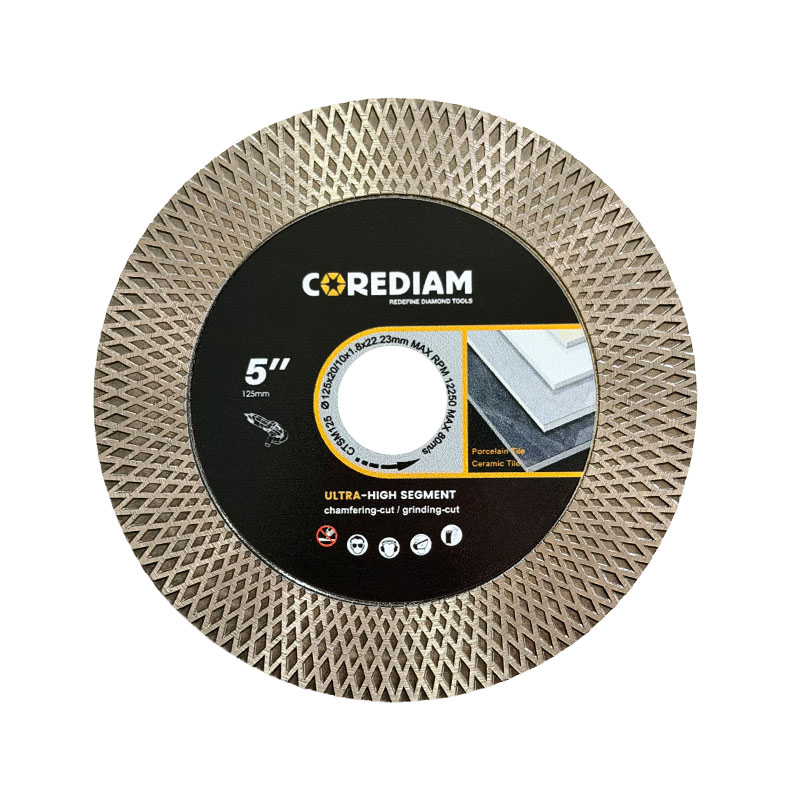

This 125mm ultra high mesh turbo diamond blade is specifically designed for the precise cutting of tiles,procelain,ceramic tile, ensuring smooth cuts without any chipping.
• Diameter: 125mm(5 inch)
• Segment thickness: 1.8mm
• Segment height: 20/10mm
• Arbor: 22.23mm
Description
1. The Mesh turbo segment design increases cooling and dust extraction to achieve the fast cutting speed with minimum chippings, soft and fine edge cutting.
2. Superior Quality Designed for fast cutting and stable life for porcelain tile, ceramic tile, marble, granite, slate and similar materials.
3. The blade is suitable to be used on hand-held angle grinders, circular saws, tile saws. Please follow the safety symbols before the cutting work starts.
4. The reinforced steel core of the blade is guaranteed in enough strength in high speed cutting especially in dry condition.
5. It's Universal application in dry or wet cutting.
6. Arbor Size: 22.23mm.
1). Sinter hot-pressing technology.
2). Wet Use.
3). Reinforced steel cores for stability.
4). Smooth cutting, free of chipping
5). Long cutting life
Specification
| Item No. | Diameter | Segment Height | Segment Thickness | Arbor |
| CTSM105 | 105mm | 20/10mm | 1.4mm | 20mm |
| CTSM115 | 115mm | 20/10mm | 1.6mm | 22.23mm |
| CTSM125 | 125mm | 20/10mm | 1.8mm | 22.23mm |
Delivery Time
Our leading time will be about 1 week for batch order.
How is the quality?
First, we have a very serious control system.
Second, in the face of different markets, we have different quality levels. The main promotion for Euro and US markets is the premium level. The main promotion for the Middle East Market is the standard level.
Third, the different quality level has different cutting speed and working life.
Manufacturing & Quality Control
Packaging
Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
