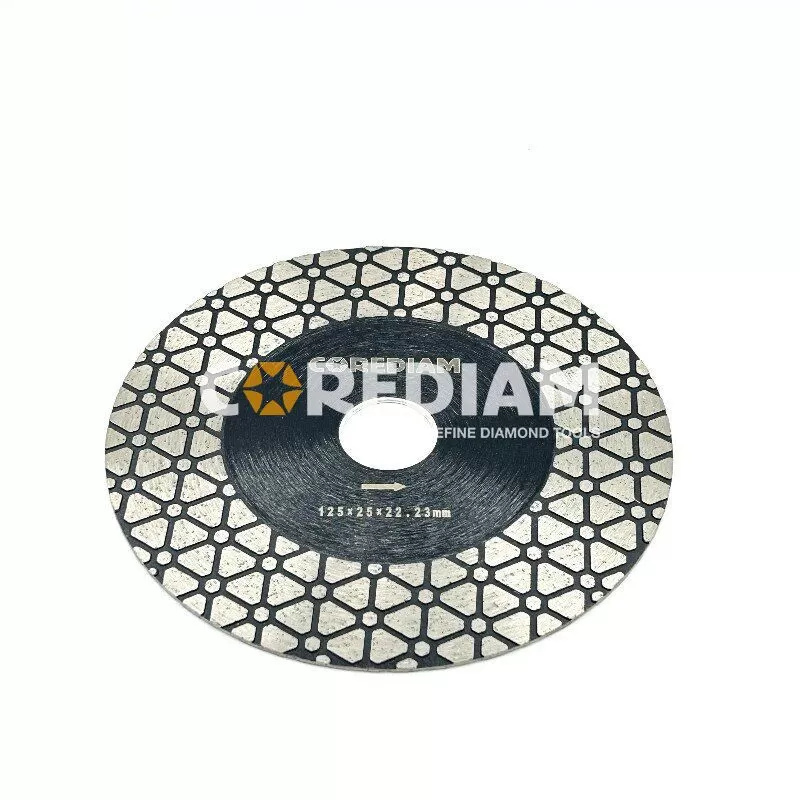

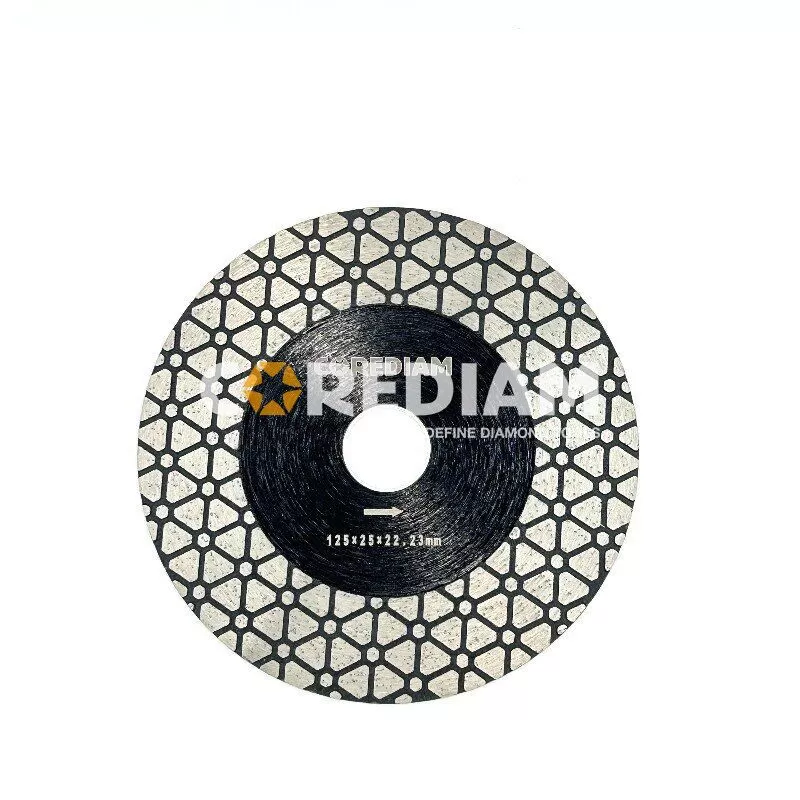

125mm Sinter Hot-pressed Super Thin Blade

   1. The Mesh turbo segment design increases cooling and dust extraction to achieve the fast cutting speed with minimum chippings, soft and fine edge cutting.


   2. Superior Quality Designed for fast cutting and stable life for porcelain tile, ceramic tile, marble, granite, slate and similar materials.

   3. The blade is suitable to be used on hand-held angle grinders, circular saws, tile saws. Please follow the safety symbols before the cutting work starts.

   4. The reinforced steel core of the blade is guaranteed in enough strength in high speed cutting especially in dry condition.

   5. It's Universal application in dry or wet cutting.

   6.  Arbor Size: 7/8" with 5/8" copper bushing.


Manufacturing technologySinter hot-pressing
Diameter range105-125mm
Segment25mm, Mesh segments thickness super thin
Applicationwet cutting tile, ceramic, ceramic tile, porcelain with a clear edge
Install equipmentAngle grinder, handheld circular saw



Inquire Now Next Product
Features of Segment Super Thin Blade Specification Delivery Time Corediam Introduction Manufacturing & Quality Control Package

Features of Segment Super Thin Blade

1). Sinter hot-pressing technology.

2). Wet Use.

3). Reinforced steel cores for stability.

4). Smooth cutting, free of chipping.

5). Long cutting life.



Specification

Item No.DiameterSegment HeightSegment ThicknessArbor
CTSO10525105mm20mm1.4mm20mm
CTSO11525115mm20mm1.6mm22.23mm
CTSO12525125mm25mm1.8mm22.23mm


OEM service offered.








  • 125mm Sinter Hot-pressed Super Thin Blade

  • 125mm Sinter Hot-pressed Super Thin Blade

Delivery Time

Our leading time will be about 1 week for batch order.

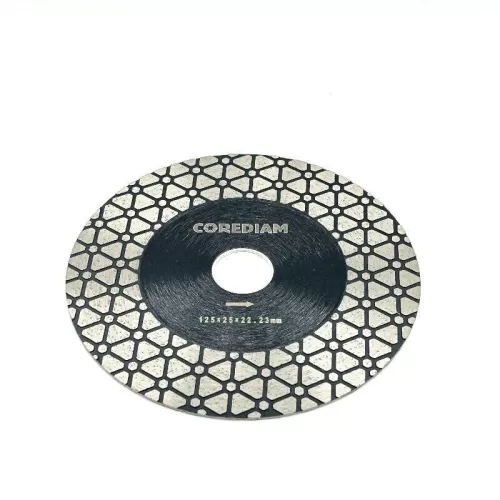

Super Thin Tile Blade With Mesh Segment

Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.



Super Thin Tile Blade With Mesh Segment

Super Thin Tile Blade With Mesh Segment

Manufacturing & Quality Control


Package
