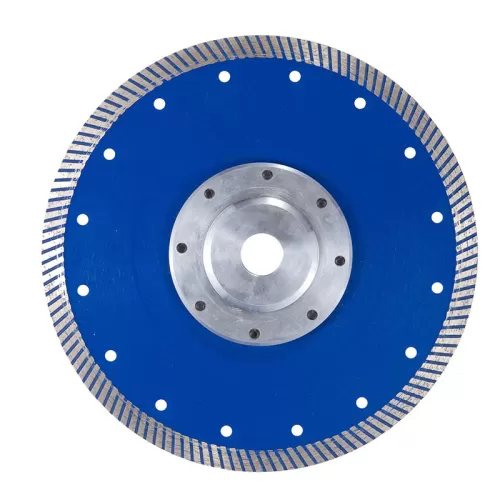

It is sinter hot-pressed, the segment height is 10mm. It can be widely used in wet cutting granite, marble and other stone materials with good efficiency. Turbo type segments can make fast cutting speed with a clean edge and no chipping. Specially designed fine turbo teeth and the mature bond system offers extremely fast and smooth cutting.
Cutting materials & equipment
Cutting materials: granite, marble and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw
Features
- Universal dry and wet cutting blades.
- Good cutting result: smooth and stable cutting, stone waste reduction./wet cutting
- Fast cutting speed with a clean edge and no chipping.
- Specially designed fine turbo teeth and mature bond system provides extremely fast and smooth cutting.
Specification
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| STBB10508 | 105mm | 10mm | 2.2mm | 22.23mm |
| STBB11508 | 115mm | 10mm | 2.2mm | 22.23mm |
| STBB12508 | 125mm | 10mm | 2.2mm | 22.23mm |
| STBB15008 | 150mm | 10mm | 2.2mm | 22.23mm |
| STBB18008 | 180mm | 10mm | 2.5mm | 22.23mm |
| STBB23008 | 230mm | 10mm | 2.7mm | 22.23mm |
| STBB30008 | 300mm | 10mm | 3.2mm | 25.40mm |
| STBB35008 | 350mm | 10mm | 3.2mm | 25.40mm |
Production process
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch
Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
