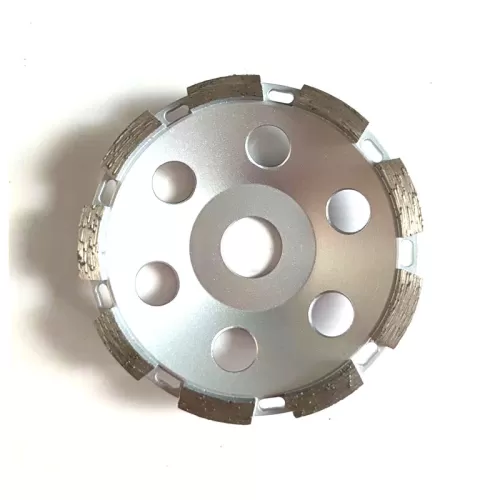

Single-row diamond cup wheel introduction
| Manufacturing technology | Silver Brazing |
| Diameter range | 4'',4.5'', 5'', 6'', 7'' |
| Segment height | 5.5mm |
| Arbor | 7/8",5/8"-11,M14 |
| Application | grinding kinds surface of concrete, hard concrete, cured concrete, fast&smooth grinding, and reasonable lifespan. |
Advantages
Ideal for aggressive grinding and chamfering
Popular single row design
Light steel core design is also available
The high-performance grinding product, with excellent efficient and reasonable lifespan
Specification
| Item No. | Diameter | Segment No. | Segment Thickness | Arbor |
| CGWS10005 | 100mm | 8 | 5.5mm | 7/8",5/8"-11, M14 |
| CGWS11505 | 115mm | 9 | 5.5mm | 7/8",5/8"-11, M14 |
| CGWS12505 | 125mm | 10 | 5.5mm | 7/8",5/8"-11, M14 |
| CGWS15005 | 150mm | 12 | 5.5mm | 7/8",5/8"-11, M14 |
| CGWS18005 | 180mm | 12 | 5.5mm | 7/8",5/8"-11, M14 |
Delivery Time
Our production capacity of cup wheels can be 5000 pieces per month, so we make sure to give a short delivery time.
1 week for sample order, and 2-3 weeks for batch orders.
Types of Equipment & Testing Process
Corediam OME Packing & Delivery.
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the cup wheel. We can also make the package as your design, and provide package design service too.
