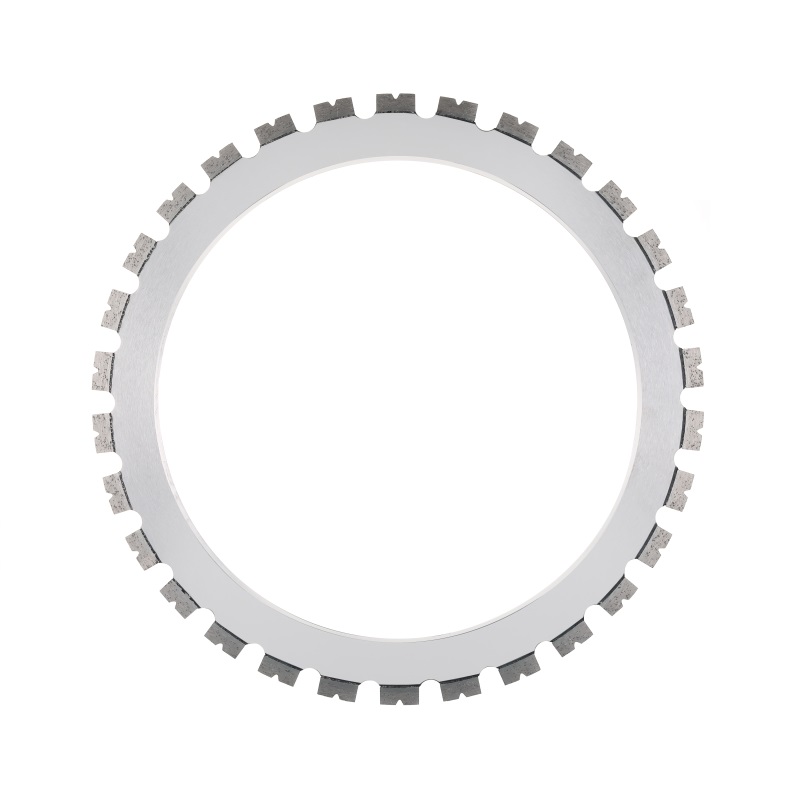

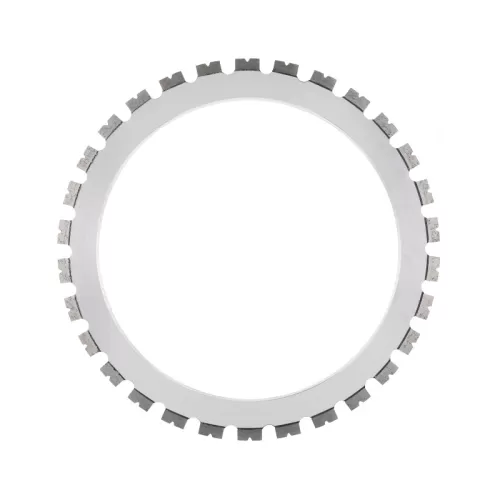

V segment ring saw blade from china diamond tools manufacturer


The ring saw blade with V segment for deep cutting in reinforced concrete,precast panels and hard stone.It can be used for cutting small openings and adjusting windows and door openings, also you can use diamond ring saw blades for pipe cutting in installation jobs.

Features Application Specification OEM Package Corediam Introduction

Features

1). Laser welded technology, the segmented type with efficient cutting all range of materials.

2). Wet Use.

3). Max cutting depth of 270mm with 370mm Laser welded ring saw blade.

4). Superior efficiently working with petrol, hydraulic or electric ring saws.

5). No vibration in cutting through steel bars.

6). Deep and precise cutting.

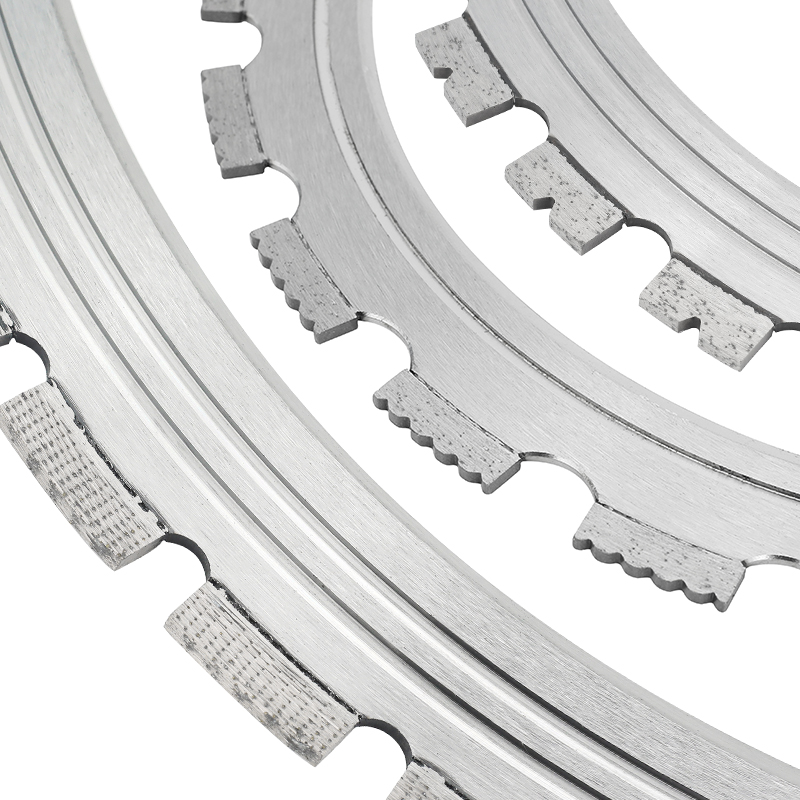

7). Different blade shapes are available.

V segment ring saw blade from china diamond tools manufacturer

Application

These blades are used for cutting various kinds of cured concrete, reinforced concrete, concrete slab with superior efficiency.


* The 400 mm ring saw blade allows for cutting depths up to 300 mm.


* Ideal for completing cuts in doors and windows in extra-thick walls.


* Ideal for deep cuts in confined spaces.


* Deep cutting depth and clean corners.


Specification

Item No.DiameterSegment HeightSegment Width
CRLV37010370mm10mm4.2mm
CRLV42010420mm10mm4.2mm

400mm(16") Ring saw blade: depth of cut - 300mm

Blade system: 1 grooves,2 grooves or 3 grooves.

Blade water feed: water



OEM Package

Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.



Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
