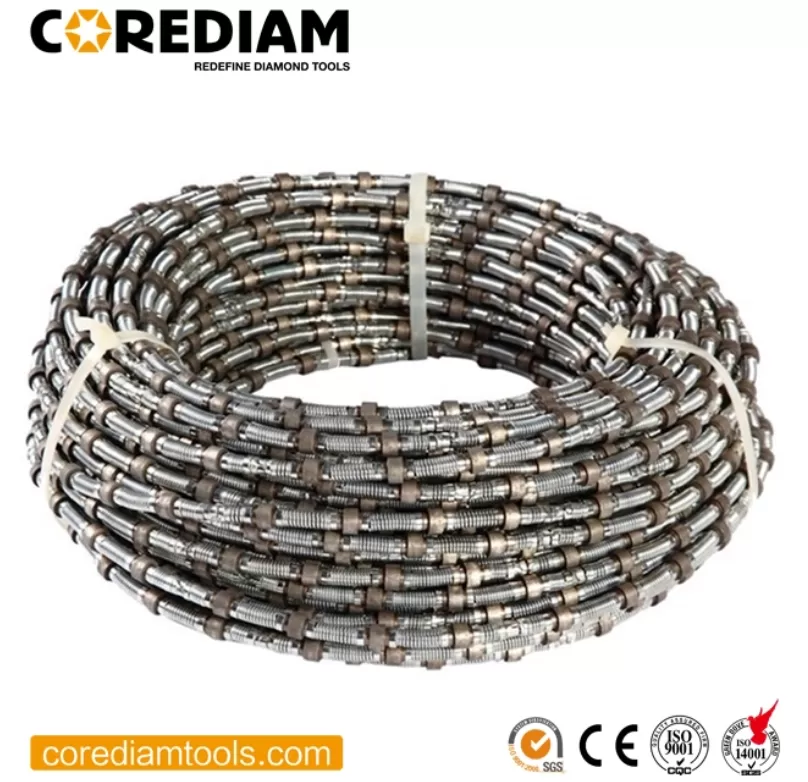

Diamond wire introduction
Diamond wire saw is undoubtedly a revolution in stone quarrying, which is made of sinter hot-pressed diamond beads with rubber injection
Main diameters for marble quarrying is 11.0mm, 11.5mm.

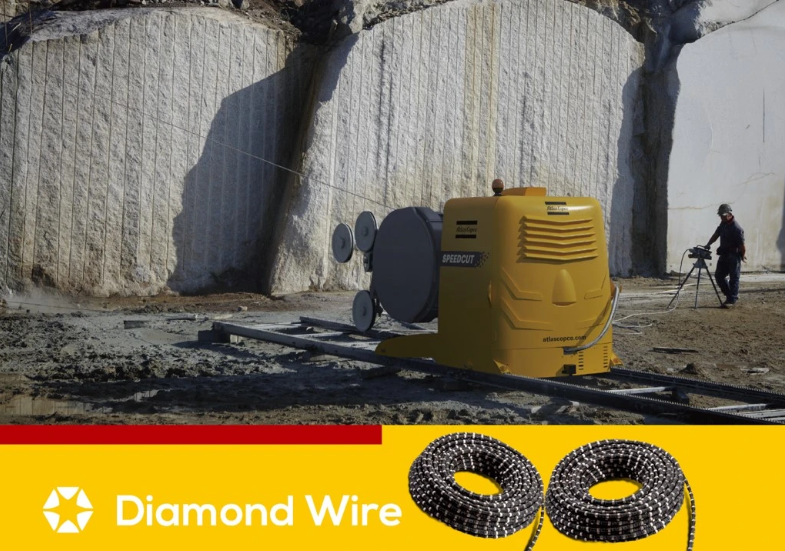

It is widely used in flexible granite quarrying, block shaping
Features&cutting performance
- High quarrying efficiency, safety and environmental operation ;
- High capacity with regular blocks, no internal injuries, can produce large-size blocks;
- Low cost quarrying.
Specification
| Item No. | Bead Diameter | Beads No./Meter | Fixing |
| SMWS08526 | 8.5mm | 26 | Rubber/Plastic/Rubber+Spring |
| SMWS09028 | 9mm | 28 | Rubber/Plastic/Rubber+Spring |
| SMWS10533 | 10.5mm | 33 | Rubber/Plastic/Rubber+Spring |
| SMWS11033 | 11.0mm | 33 | Rubber/Plastic/Rubber+Spring |
| SMWS11533 | 11.5mm | 33 | Rubber/Plastic/Rubber+Spring |
Cutting performance
| Cutting materials | Line speed m/s | Cutting speed sqm/m | Wife life sqm/m |
| low rigidity marble | 30-35 | 8-15 | 40-60 |
| mid-hard marble | 28-35 | 6-10 | 25-40 |
| hard marble | 25-30 | 4-8 | 15-25 |
Delivery time
1 week for samples
2-3 weeks for batch orders.
