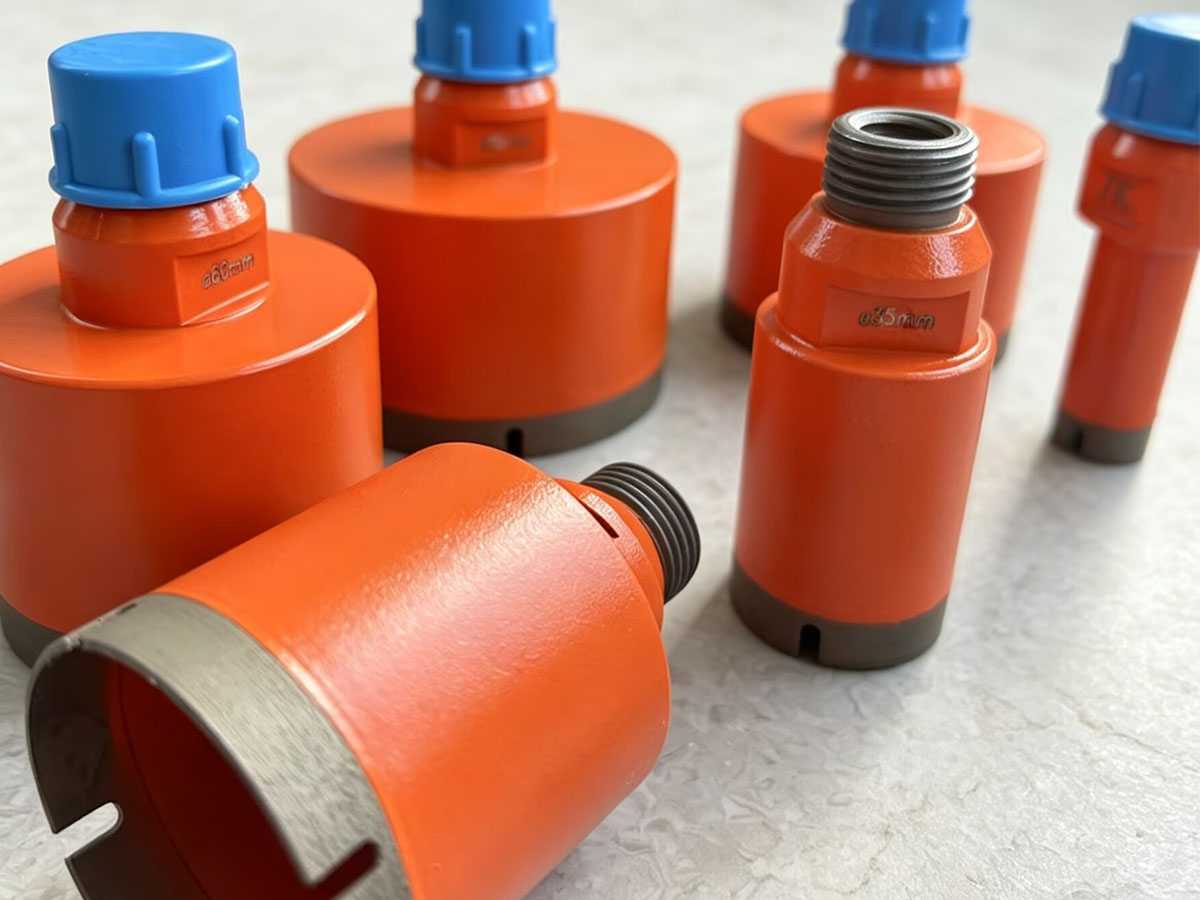

Dekton hole saw bits with crown segment

Dekton Hole Saw Bits :


Diamond core bits are designed to drill clean, circular holes in dekton materials.


• Dekton Core Bit Diameters Ø6mm-Ø120mm

• Segment Thickness: 1.2mm

• Thread: M14

• Crown segment


Inquire Now
Features of Concrete diamond saw blade Specification Drilling Test

Features of Concrete diamond saw blade

This diamond core bit is designed specifically for drilling dekton.

It is manufactured using a high-frequency welding process and features a sintered crown segment, which effectively increases drilling life. It is also suitable for use in wet environments, reducing dust and providing clean, precise holes.



Specification

Item No.Diameter    Segment HeightSegment thicknessThread
SDCD0066mm10mm1.2mmM14
SDCD0088mm10mm1.2mmM14
SDCD01010mm10mm1.2mmM14
SDCD01212mm10mm1.2mmM14
SDCD01414mm10mm1.2mmM14
SDCD01616mm10mm1.2mmM14
SDCD01818mm10mm1.2mmM14
SDCD02020mm10mm1.2mmM14
SDCD02525mm10mm1.2mmM14
SDCD02828mm10mm1.2mmM14
SDCD03030mm10mm1.2mmM14
SDCD03535mm10mm1.2mmM14
SDCD04040mm10mm1.2mmM14
SDCD04545mm10mm1.2mmM14
SDCD05050mm10mm1.2mmM14
SDCD05555mm10mm1.2mmM14
SDCD06060mm10mm1.2mmM14
SDCD06565mm10mm1.2mmM14
SDCD07070mm10mm1.2mmM14
SDCD07575mm10mm1.2mmM14
SDCD08080mm10mm1.2mmM14
SDCD09090mm10mm1.2mmM14
SDCD100100mm10mm1.2mmM14
SDCD120120mm10mm1.2mmM14

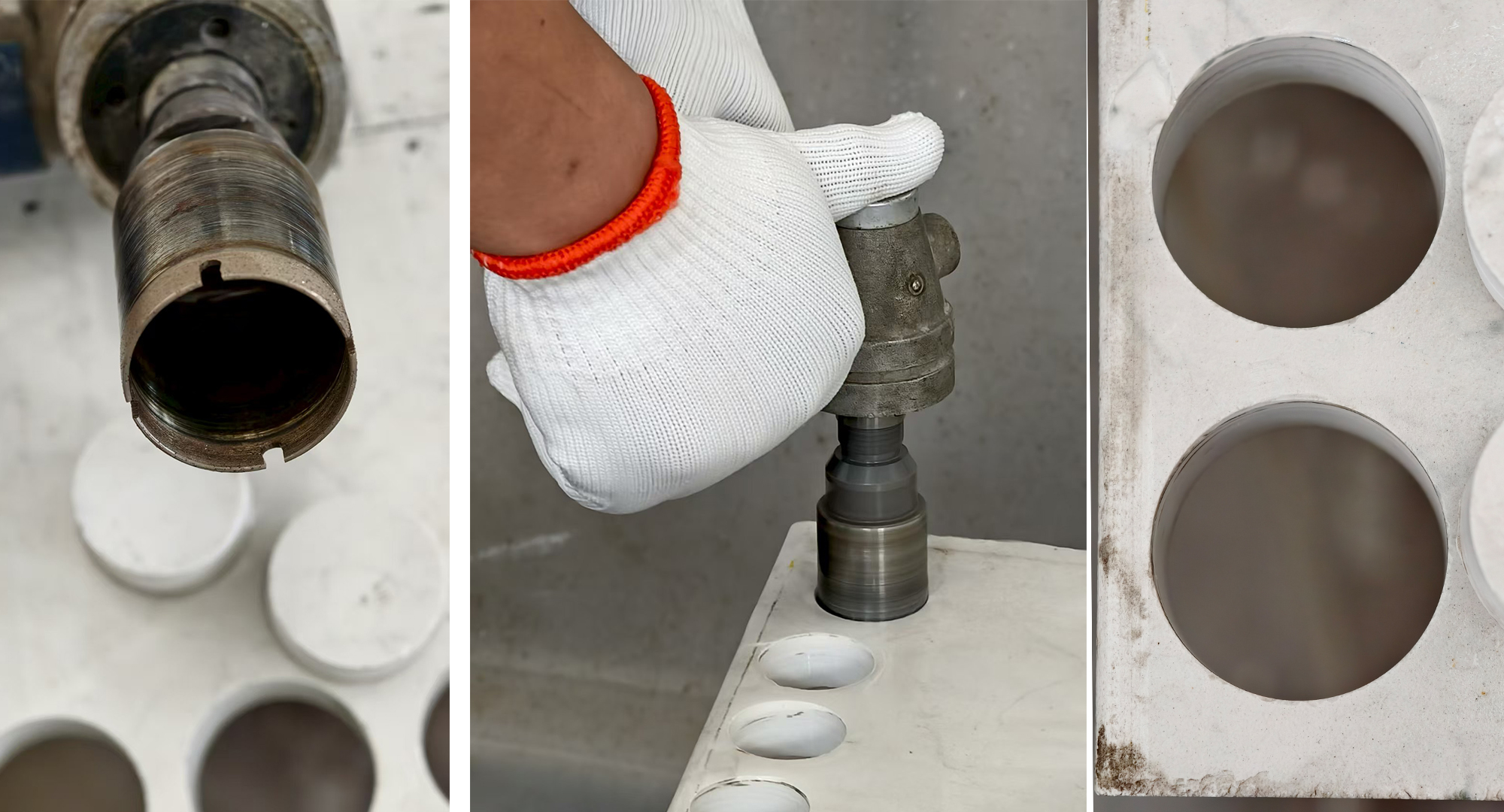

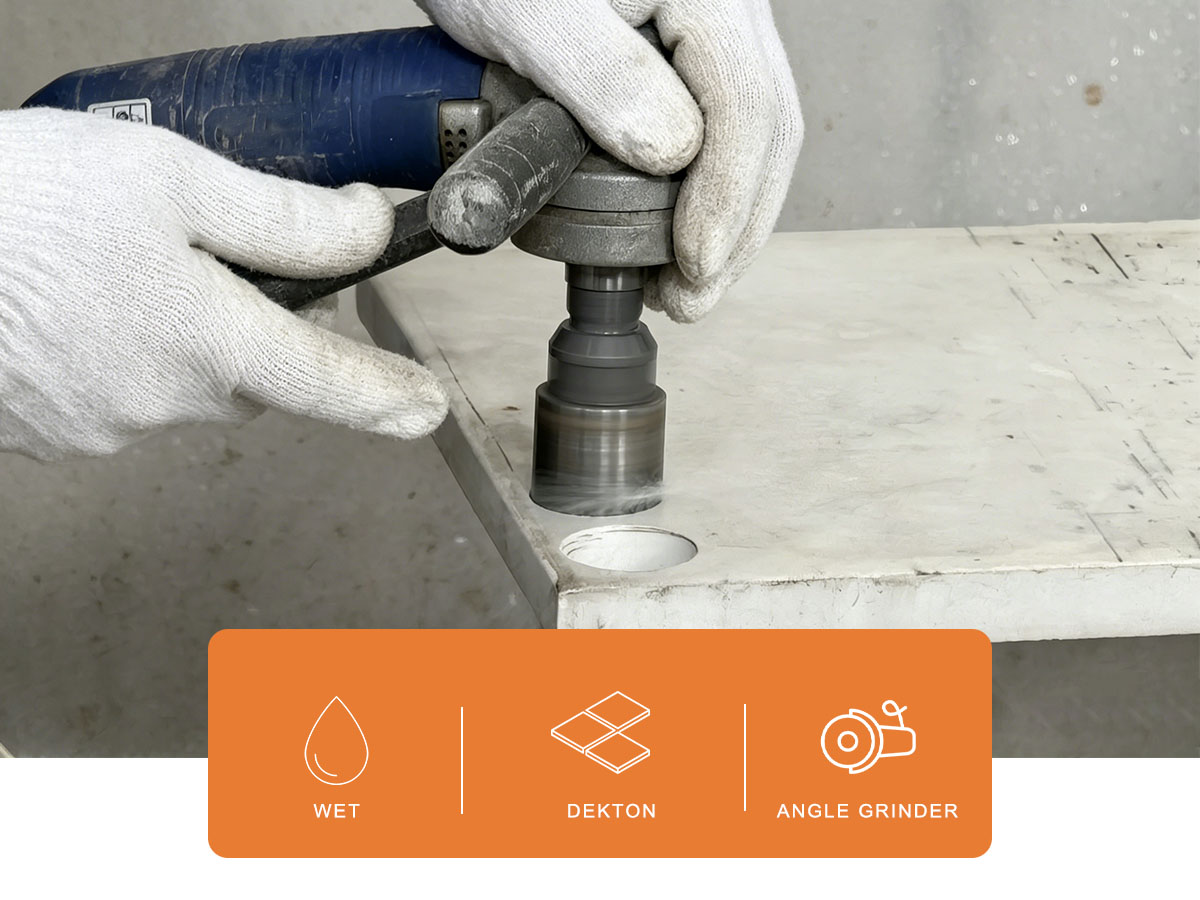

Drilling Test

Silver Brazed Hole Saw Bits - Dekton drilling

•  Wet drilling

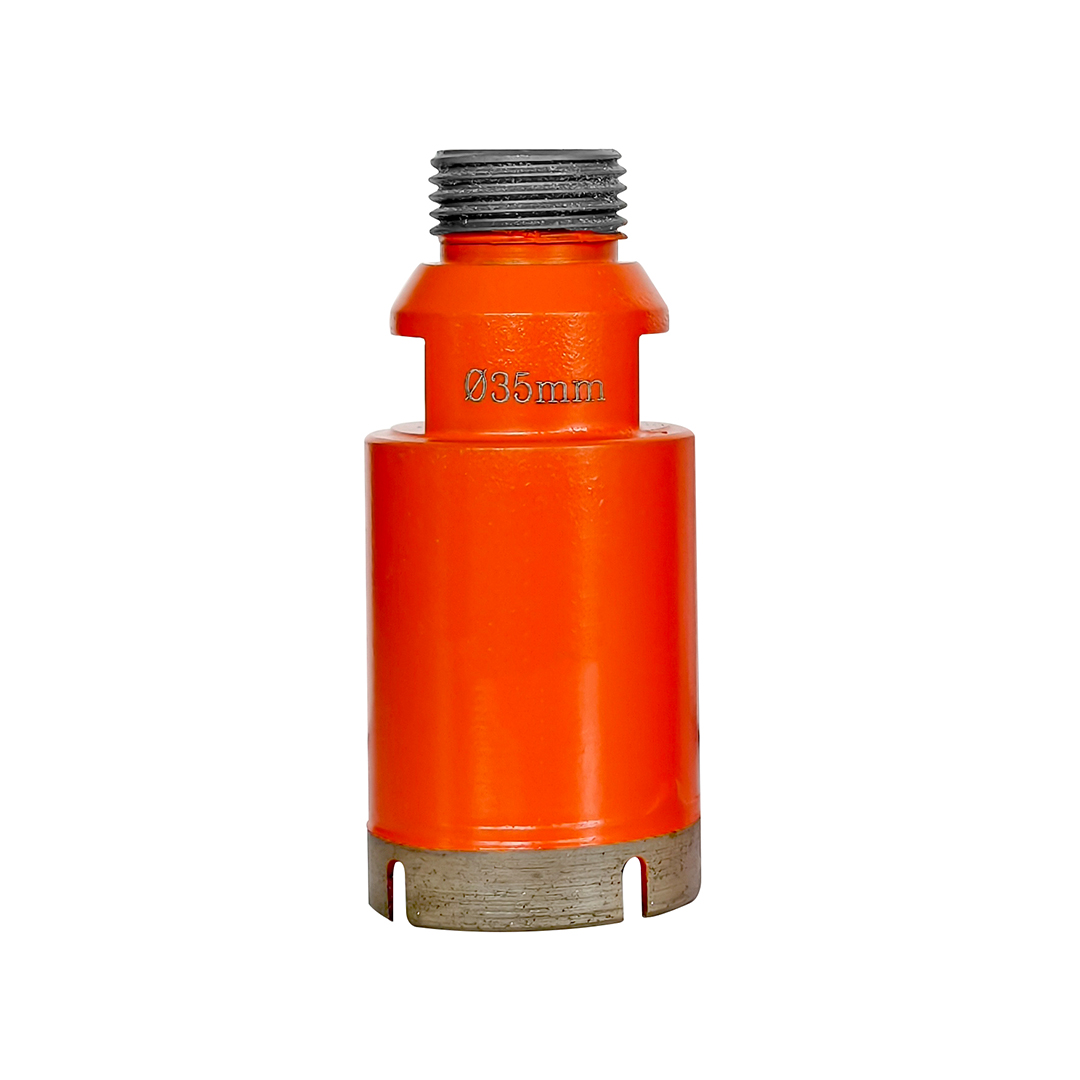

•  Ø35×10×M14  Total Length: 80mm   Effective Length: 36mm

•  Crown segment


Dekton hole saw bits with crown segment
