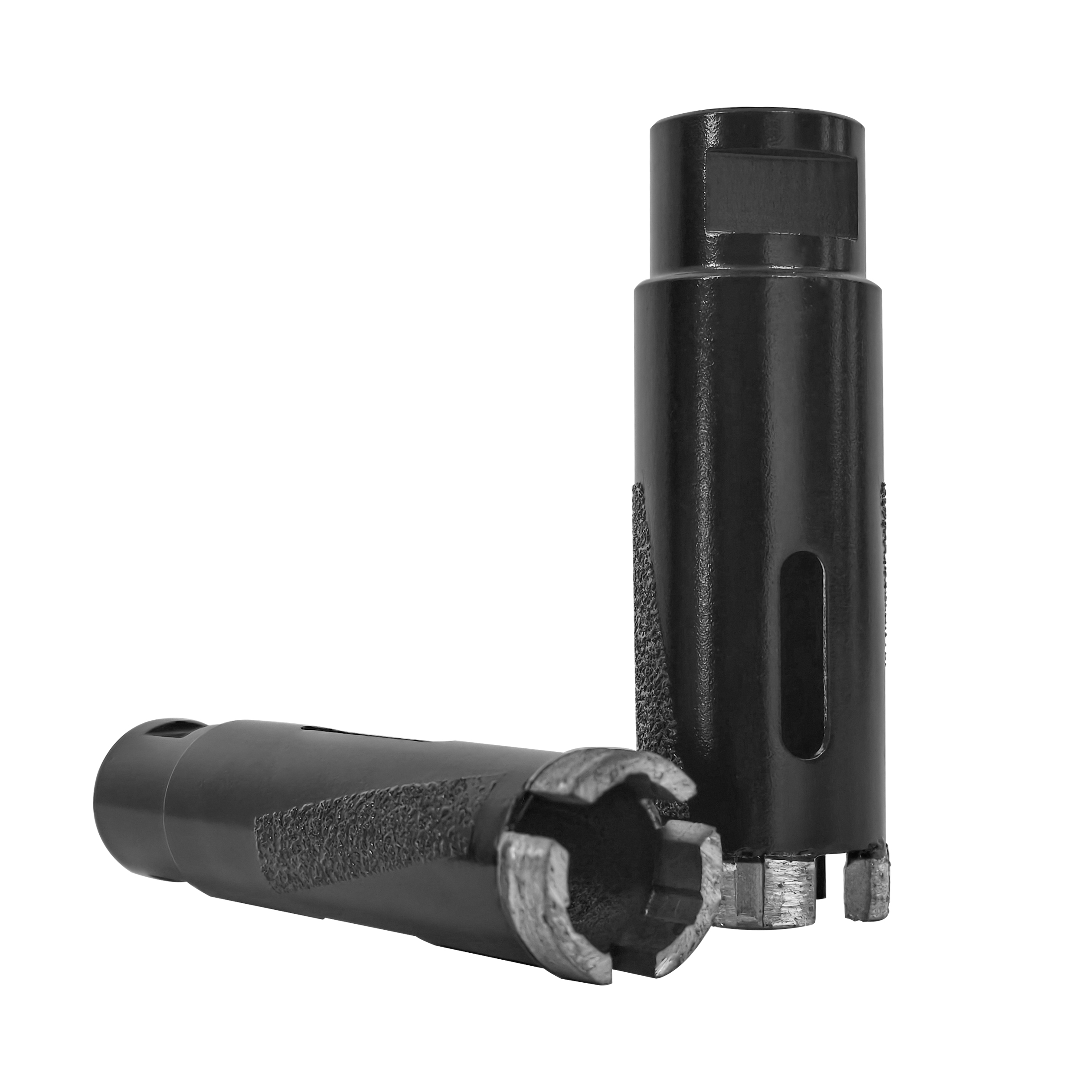

Diamond Hole Saw Bits :
Diamond core bits are designed to wet drilling granite and other stone materials.
• Laser welded technology
• Diamond Core Bit Diameters Ø20mm-Ø102mm
• Thread: M14
• Angle Grinder
• Wet drilling
Description
Diamond core drill bits are designed to drill clean, circular holes in various materials,such as granite, marble and other stone materials.
It is manufactured using a laser welding process, which effectively increases drilling life. It is also suitable for use in wet environments, reducing dust and providing clean, precise holes.
Specification
| Item No. | Diameter | Segment Size | Segment No. | Tube Thickness | Thread | |
| SHCD020 | 3/4" | 20mm | 17.5x3.2x9mm | 3 | 1.75mm | M14 |
| SHCD022 | 7/8" | 22mm | 17.5x3.2x9mm | 3 | 1.75mm | M14 |
| SHCD025 | 1" | 25mm | 17.5x3.2x9mm | 3 | 1.75mm | M14 |
| SHCD030 | 1-1/8" | 30mm | 18.5x3.2x9mm | 3 | 1.75mm | M14 |
| SHCD032 | 1-1/4" | 32mm | 15x3.2x9mm | 4 | 1.75mm | M14 |
| SHCD035 | 1-3/8" | 35mm | 17x3.2x9mm | 4 | 1.75mm | M14 |
| SHCD038 | 1-1/2" | 38mm | 19x3.2x9mm | 4 | 1.75mm | M14 |
| SHCD040 | 1-5/8" | 40mm | 17x3.2x9mm | 5 | 1.75mm | M14 |
| SHCD044 | 1-3/4" | 44mm | 18x3.2x9mm | 5 | 1.75mm | M14 |
| SHCD051 | 2" | 51mm | 20x3.2x9mm | 5 | 1.75mm | M14 |
| SHCD056 | 2-1/4" | 56mm | 19x3.2x9mm | 6 | 1.75mm | M14 |
| SHCD063 | 2-1/2" | 63mm | 18x3.2x9mm | 7 | 1.75mm | M14 |
| SHCD076 | 3" | 76mm | 17x3.2x9mm | 9 | 1.75mm | M14 |
| SHCD083 | 3-1/4" | 83mm | 19x3.2x9mm | 9 | 1.75mm | M14 |
| SHCD089 | 3-1/2" | 89mm | 19x3.2x9mm | 10 | 1.75mm | M14 |
| SHCD102 | 4" | 102mm | 20x3.2x9mm | 11 | 1.75mm | M14 |
