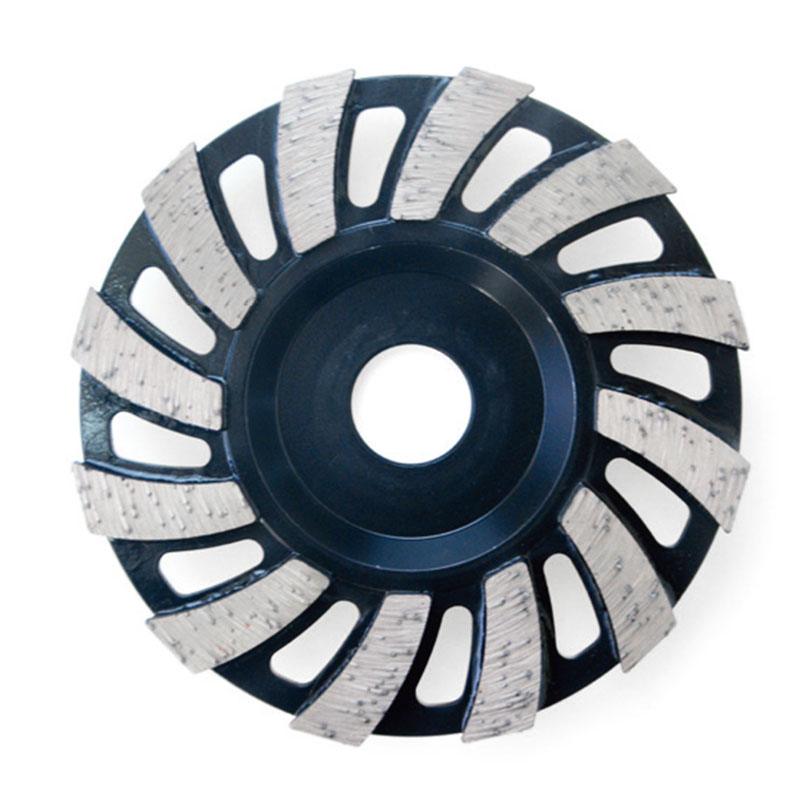

Turbo Diamond Grinding Cup Wheel
Diameter: 105mm-180mm
Segment Thickness: 5.5mm
Arbor: 22.23mm
Description
Diamond Turbo Grinding Cup Wheel is designed for fast and fine surface grinding on different kinds of concrete with a light steel core.
Concrete diamond cup wheel is applied from soft to abrasive concrete and other masonry material. Brazing production technology can ensure high welding strength, make sure segments unbroken during grinding operation.
Available diameters: 105mm,115mm,125mm,180mm
Segment Size: 32×5.5mm
Arbor: 22.23mm
Application:
• Concrete
• Terrazo
• Masonry
• Stone
Specification
| Item No. | Diameter | Segment No. | Segment Thickness | Arbor |
| CGWX105 | 105mm | 7 | 5.5mm | 22.23mm |
| CGWX115 | 115mm | 8 | 5.5mm | 22.23mm |
| CGWX125 | 125mm | 10 | 5.5mm | 22.23mm |
| CGWX180 | 180mm | 14 | 5.5mm | 22.23mm |
OEM Package
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
Corediam Introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
Certifications
Backed by 10+ internationally recognized certifications, Corediam manufactures every diamond tool under strict quality management standards, providing reliable performance trusted by professional distributors and contractors worldwide.
ISO9001 | ISO14001
Exhibition
Meet Corediam at the world's leading trade shows, including Germany's Eisenwarenmesse, Russia MITEX, and Saudi BIG 5. Every year, we connect face-to-face with global distributors and contractors to better understand local markets and deliver trusted diamond tool solutions.
