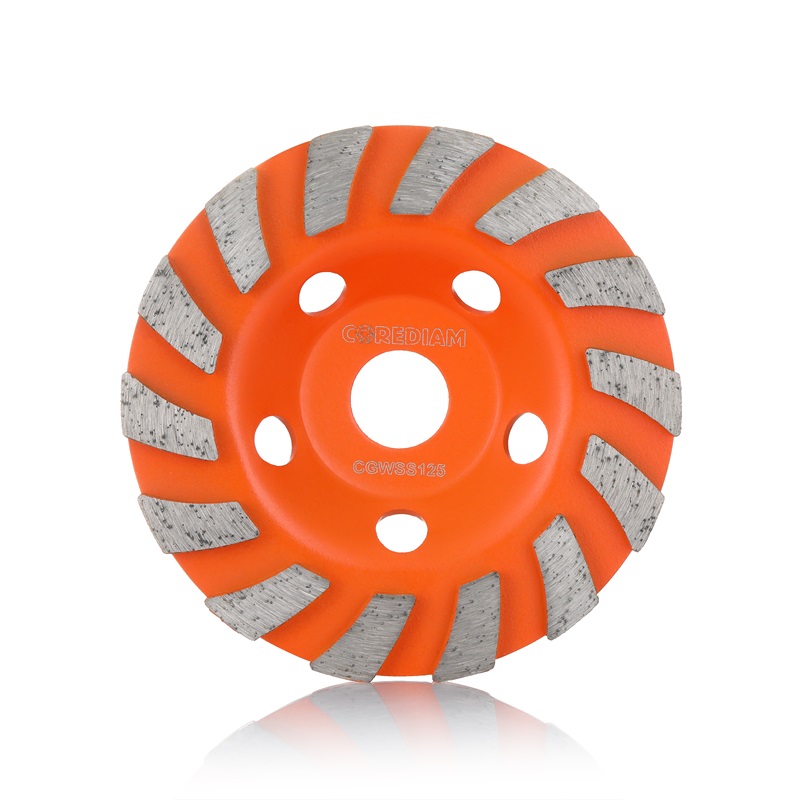

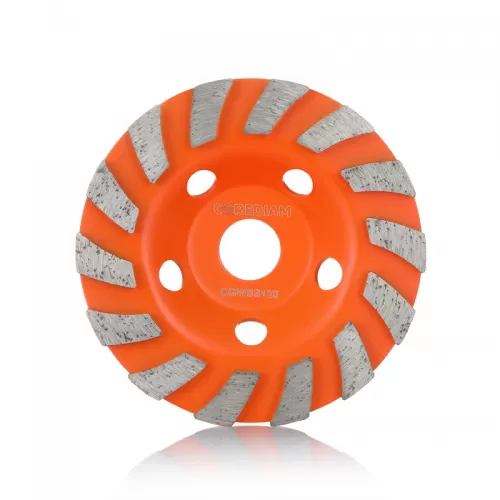

125mm Single-row diamond grinding cup wheel
• Sinter hot-pressed technology
• Diameter: 100mm-180mm
• Grinding materials: Concrete,masonry and stone
• Anlge grinder
Description
Single-row diamond grinding wheels are designed to grind a variety of hard materials, such as concrete, stone, and masonry.
• The holes in the steel core help to remove surface dust and extend its service life.
• Ideal for aggressive grinding and chamfering
• Wet and dry grinding
• Consistent Performance,Higher cost performance
Specification
| Item No. | Diameter | Segment No. | Segment Thickness | Arbor |
| CGWSS10005 | 100mm | 8 | 5.0mm | 20mm |
| CGWSS11505 | 115mm | 9 | 5.0mm | 22.23mm |
| CGWSS12505 | 125mm | 10 | 5.0mm | 22.23mm |
| CGWSS15005 | 150mm | 12 | 5.0mm | 22.23mm |
| CGWSS18005 | 180mm | 12 | 5.0mm | 22.23mm |
Delivery Time
Our production capacity of cup wheels can be 5000 pieces per month, so we make sure to give a short delivery time.
1 week for sample order, and 2-3 weeks for batch orders.
Types of Equipment & Testing Process
Corediam OME Packing & Delivery.
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the cup wheel. We can also make the package as your design, and provide package design service too.
