High-Efficiency Diamond Granite Cutting Blade, low noise!
Introduction
It has two production processes, silver welding and copper welding technology.
This saw blade is made of silver welding process and sandwich steel core,so it has good sharpness and high efficiency in the process of cutting. Meanwhile, the noise is very low during working.
It is ideal for wet cutting of granite.
Can be installed on stone saws,tile saws and masonry saw.
Good cutting result: smooth cutting, flat surface, and even size. Stable cutting, narrow cutting gap, stone waste reduction.
Features

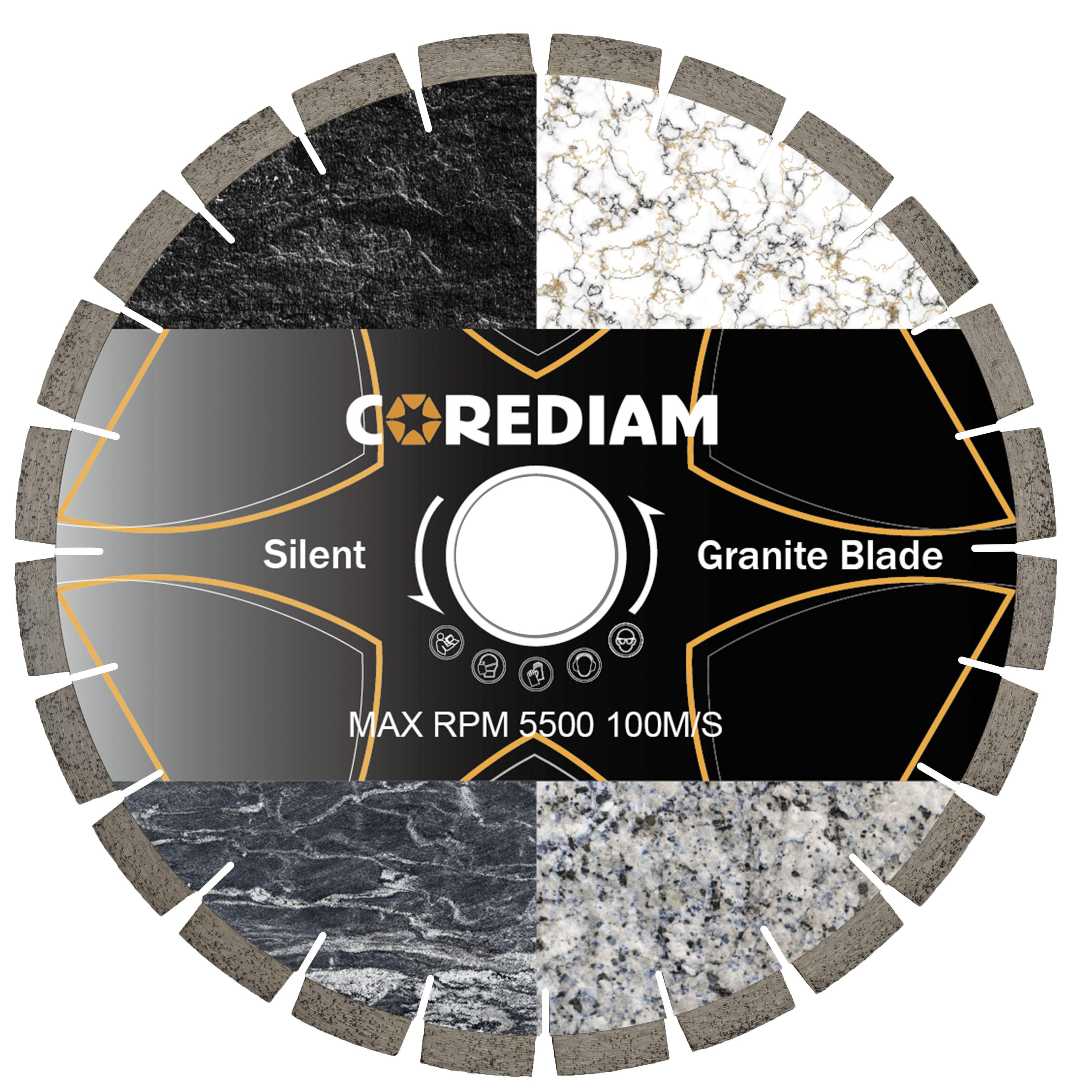

Granite silent diamond blade:
○ Silver brazing technology.
○ Sandwish steel core,low noise.
○ Wet cutting.
○ Stone saws,tile saws and masonry saw.
○ Different grades are available: standard, premium, professional.
○ Wide U slot design, efficient chip removal.
○ Thick base, impact resistance.
Advantages
The granite blade has good sharpness and high efficiency, low noise. Meanwhile, granite cutting disc has a long lifespan.
Specification
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| SGBB25015 | 250mm | 15mm | 3.0mm | 60mm |
| SGBB30015 | 300mm | 15mm | 3.2mm | 60mm |
| SGBB35015 | 350mm | 15mm | 3.2mm | 60/50mm |
| SGBB40015 | 400mm | 15mm | 3.8mm | 60/50mm |
| SGBB45015 | 450mm | 15mm | 4.4mm | 60/50mm |
| SGBB50015 | 500mm | 15mm | 4.4mm | 60/50mm |
| SGBB60015 | 600mm | 15mm | 4.5mm | 60/50mm |
Package
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
Corediam Service
We Corediam provide a full diamond blade solution for your project, offering customized diamond blades dependent on the demand of your granite cutting project.
