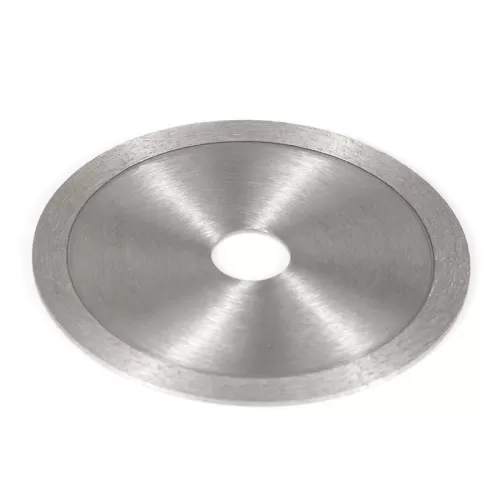

Sinter Hot-pressed Continuous Tile Cutting Blade

Continuous Tile Cutting Blade is manufacturing by sinter hot-pressing production line. The diamond saw blade is universal wet cutting blades, designed for professionally cutting and nondestructive grooving on ceramic, tile, porcelain, and you also can use it for cutting marble and granite. It can provide very fast, precise, smooth cutting with minimum chipping. Tile saw blades can be installed on Angle Grinder, Circular Saw, Tile Saw equipment. The tile will have a very clear edge during the cutting job.

Pregunte ahora

Application Specification Delivery Time Sinter Hot-pressed Diamond Saw Blade Manufacturing Technique Packing and Delivery Tags

Application

These blades are used for professionally cutting ceramic tile and porcelain with good efficiency.

Sinter Hot-pressed Continuous Tile Cutting Blade

Specification

Item No.	Diameter	Segment Height	Segment Width	Arbor
CTSA105	105mm	7/10mm	1.7mm	22.23mm
CTSA115	115mm	7/10mm	1.7mm	22.23mm
CTSA125	125mm	7/10mm	1.7mm	22.23mm
CTSA150	150mm	7/10mm	1.7mm	22.23mm
CTSA180	180mm	7/10mm	1.7mm	22.23mm
CTSA200	200mm	7/10mm	1.7mm	22.23mm
CTSA230	230mm	7/10mm	1.7mm	22.23mm
CTSA250	250mm	7/10mm	1.7mm	22.23mm
CTSA300	300mm	7/10mm	2.2mm	25.4/50/60mm
CTSA350	350mm	7/10mm	2.4mm	25.4/50/60mm
CTSA400	400mm	7/10mm	2.6mm	25.4/50/60mm
