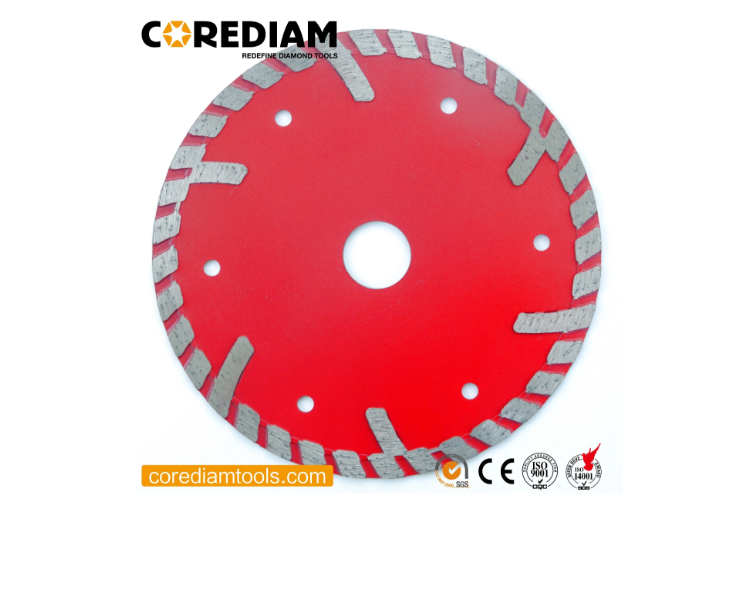

125mm Sintered hot-pressed Turbo blade

125mm Sinter hot-pressed Turbo Diamond Blade

It is sinter hot-pressed, the segment height is 9mm. It can be widely used in wet cutting granite, marble and other stone materials with good efficiency. Turbo type segments can make fast cutting speed with a clean edge and no chipping. Specially designed fine turbo teeth and the mature bond system offers extremely fast and smooth cutting.

Cutting materials & equipment Features Specification Production process Delivery time Package Quality control systerm

Cutting materials & equipment

Cutting materials: granite, marble and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw

Features

- Universal dry and wet cutting blades.
- Good cutting result: smooth and stable cutting, stone waste reduction./wet cutting
- Fast cutting speed with a clean edge and no chipping.
- Specially designed fine turbo teeth and mature bond system provides extremely fast and smooth cutting.

Specification

Item No.	Diameter	Segment Height	Segment Width	Arbor
STBC10508	105mm	9mm	2.2mm	22.23mm
STBC11508	115mm	9mm	2.2mm	22.23mm
STBC12508	125mm	9mm	2.2mm	22.23mm
STBC15008	150mm	9mm	2.2mm	22.23mm
STBC18008	180mm	9mm	2.5mm	22.23mm
STBC23008	230mm	9mm	2.7mm	22.23mm
STBC30008	300mm	9mm	3.0mm	25.40mm
STBC35008	350mm	9mm	3.0mm	25.40mm

Production process

Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch

Delivery time

Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.

For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

Package

Quality control systerm
