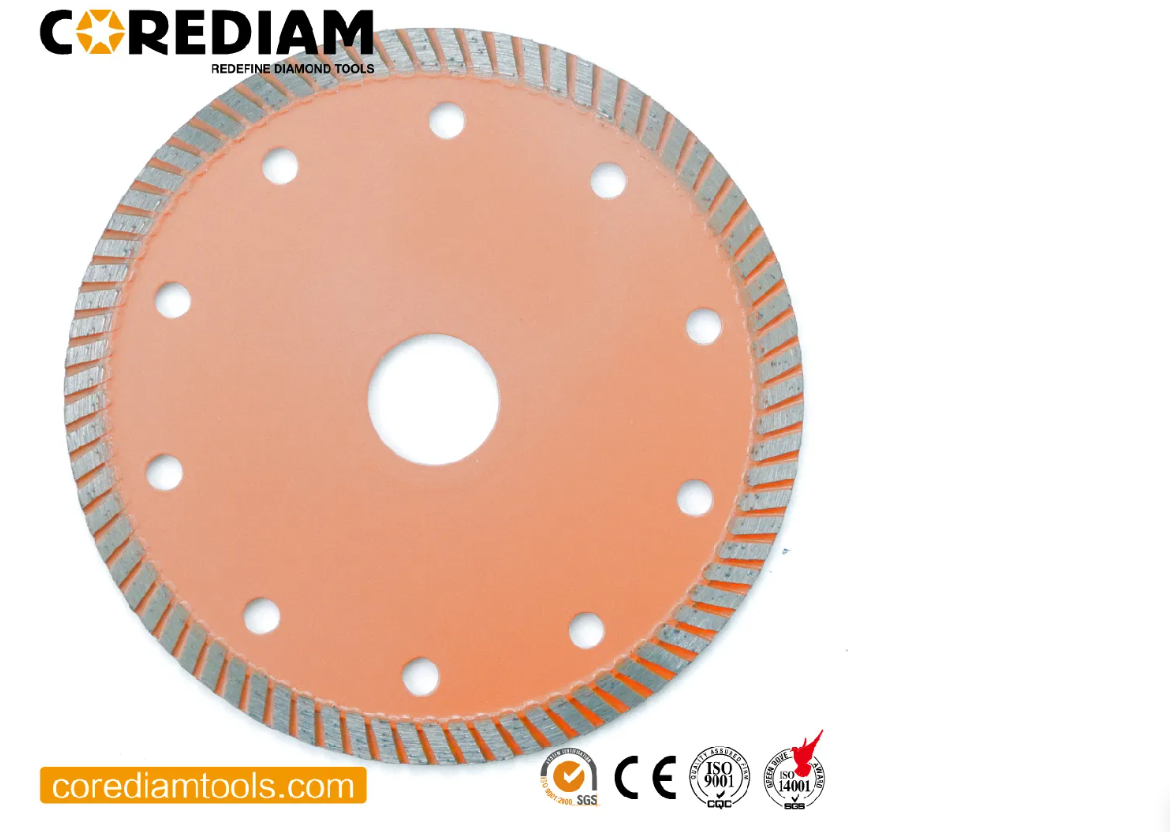

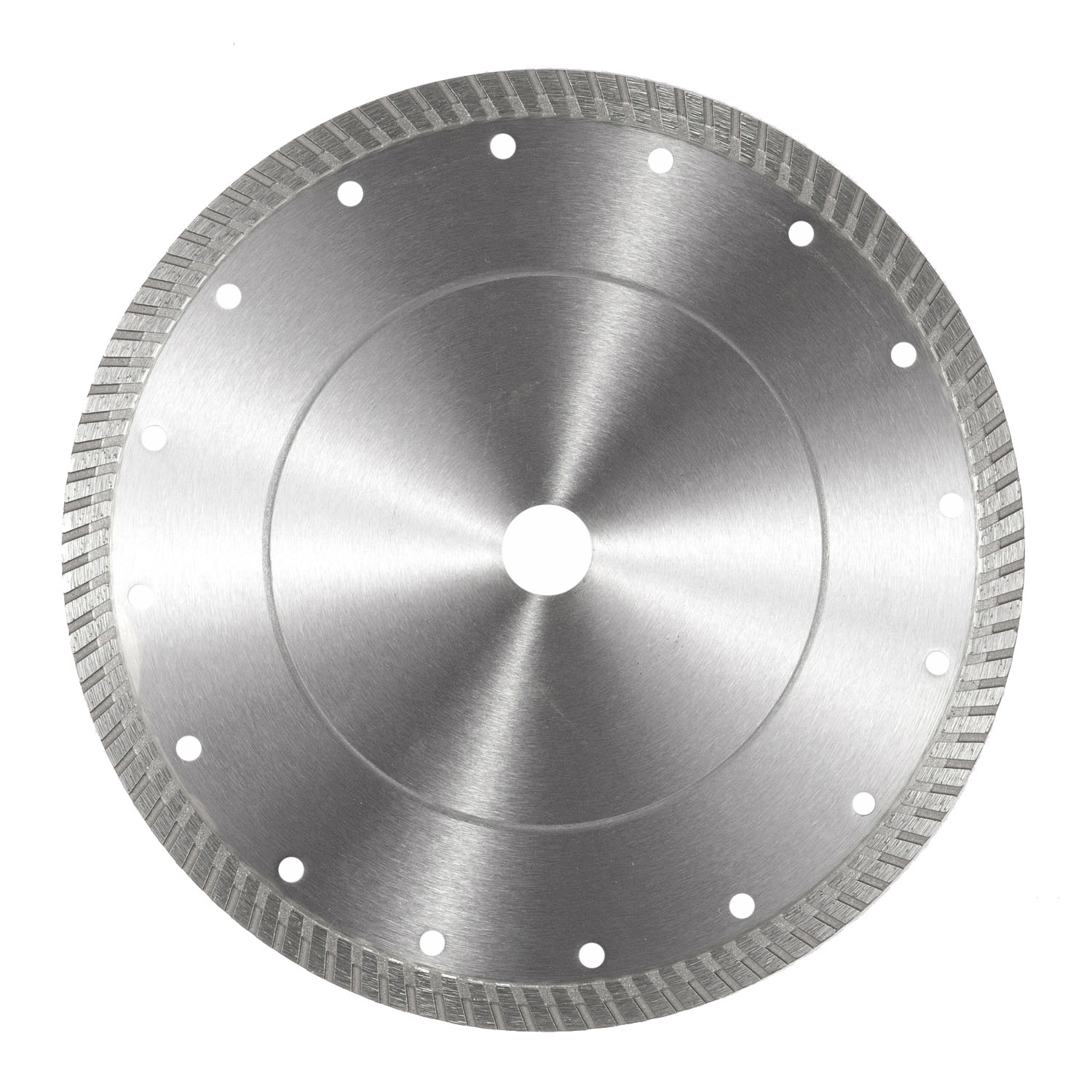

Sintered hot-pressed Turbo blade

The diameter of this turbo type blade is 230mm. It is sinter hot-pressed, the segment height is 8mm, we can also supply blade with segment height 10mm. It can be widely used in wet cutting granite, marble and other stone materials with good efficiency. Turbo type segments can make fast cutting speed with a clean edge and no chipping. Specially designed fine turbo teeth and the mature bond system offers extremely fast and smooth cutting.

Cutting materials & equipment Features Specification Production process Delivery time Package Quality control systerm

Cutting materials & equipment

Cutting materials: granite, marble and other stone materials with good efficiency.
Install equipment: angle grinder, circular saw, tile saw

Features

- Universal dry and wet cutting blades.
- Good cutting result: smooth and stable cutting, stone waste reduction./wet cutting
- Fast cutting speed with a clean edge and no chipping.
- Specially designed fine turbo teeth and mature bond system provides extremely fast and smooth cutting.

Specification

Item No.	Diameter	Segment Height	Segment Width	Arbor
STBA10508	105mm	8mm	2.2mm	22.23mm
STBA11508	115mm	8mm	2.2mm	22.23mm
STBA12508	125mm	8mm	2.2mm	22.23mm
STBA15008	150mm	8mm	2.2mm	22.23mm
STBA18008	180mm	8mm	2.5mm	22.23mm
STBA23008	230mm	8mm	2.7mm	22.23mm
STBA30008	300mm	10mm	3.2mm	25.40mm
STBA35008	350mm	10mm	3.2mm	25.40mm

Production process

Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch

Delivery time

Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.

For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

Package

Quality control systerm
