Using electroplating deposition process, the diamond is electroplated on the segment,which is hard and wear-resistant,without sand loss.
Smooth surface, precision.
forging, reduce chipremoval resistance andincrease drilling speed.
Nickel-plated surface treatment,rust-proof and beautiful.
Features

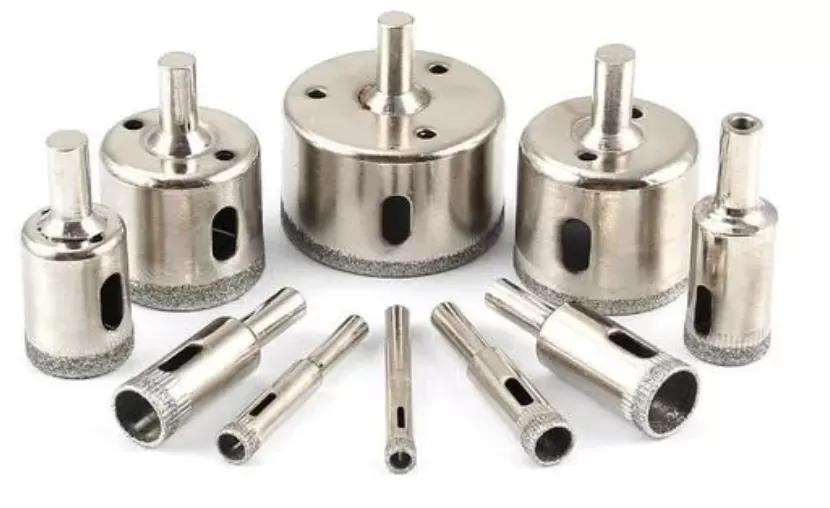

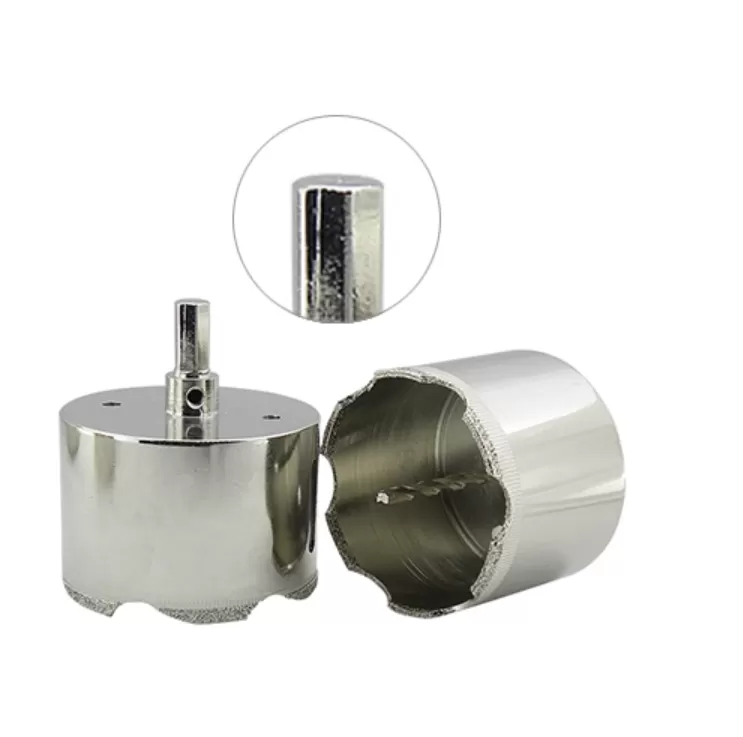

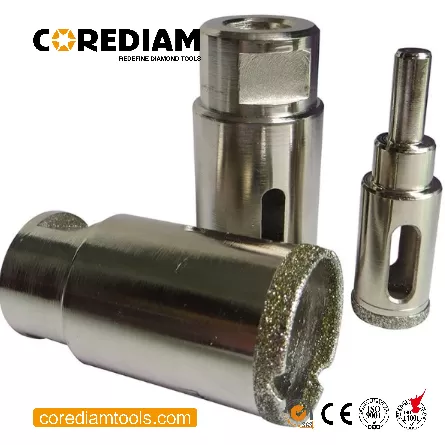

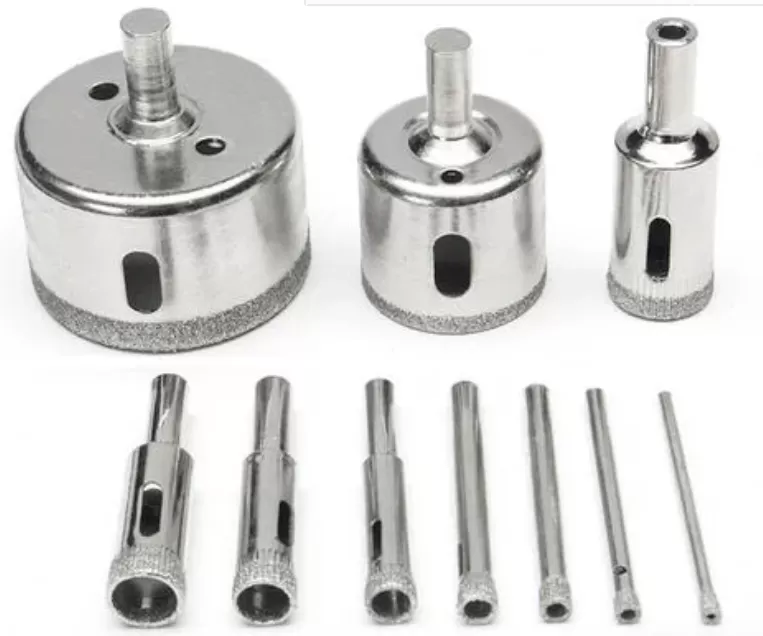

Electroplated diamond drill bits are mainly used for glass drilling, and can also be used for ceramic drilling, which are very sharp and save working time!
Specification
| Item NO. | Diameter | Total length | Working length | Diamond width | Shank | Grit |
| SECD22 | 22mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD25 | 25mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD28 | 28mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD30 | 30mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD32 | 32mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD35 | 35mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD38 | 38mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD40 | 40mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD43 | 43mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD45 | 45mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD50 | 50mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD55 | 55mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD60 | 60mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD65 | 65mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD70 | 70mm | 85mm | 60mm | 5mm | Round | #60/70 |
| SECD75 | 75mm | 85mm | 60mm | 5mm | Round | #60/70 |
Delivery time
1 weeks for samples after order confirmed.
2-3 weeks for batch order after payment confirmed.
Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
OEM package
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
