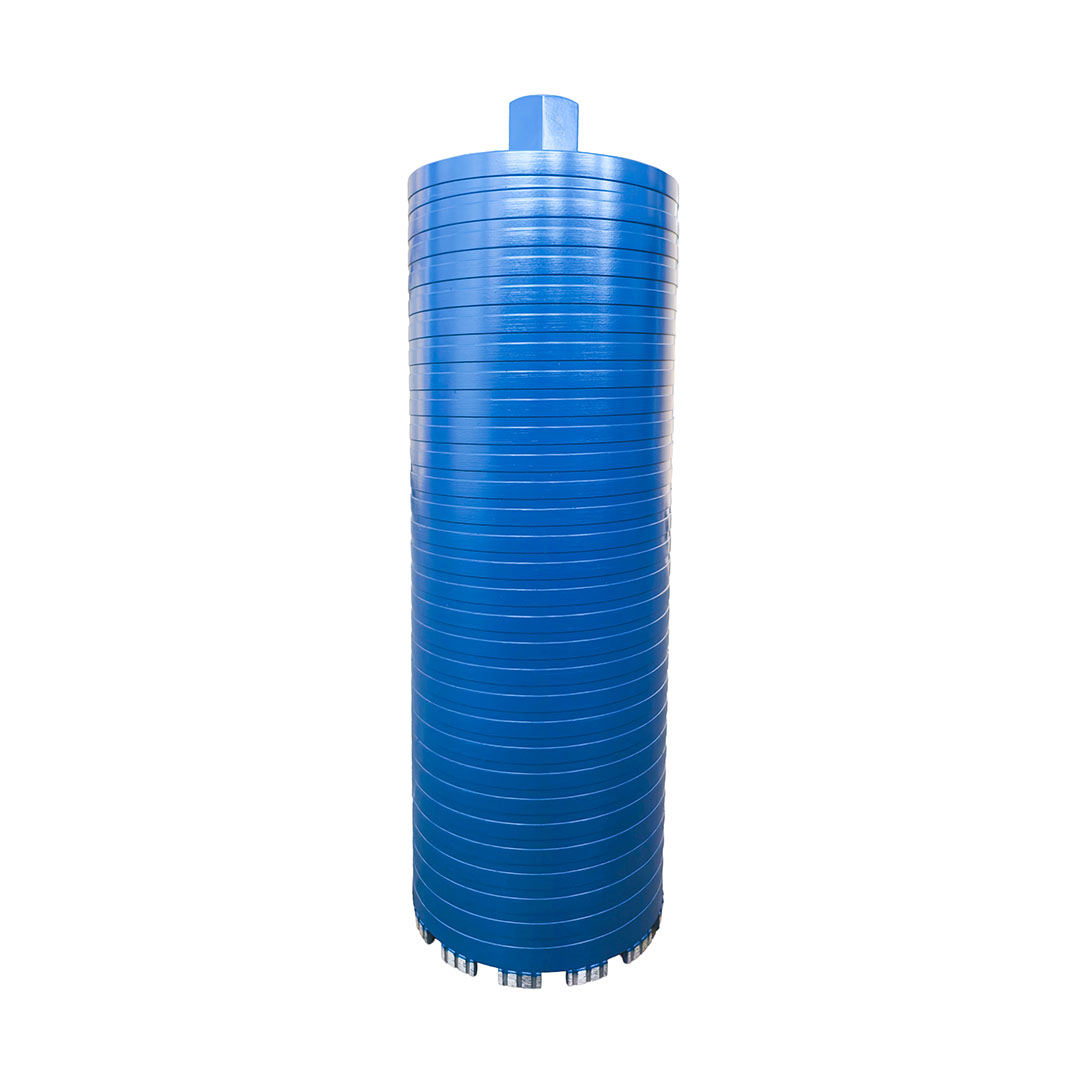

162×450mm Dry Diamond Core Drill Bits


For Dry drilling in concrete,reinforced concrete and other hard building materials.


• Laser welded technology

• Turbo segment

• Core Bit Diameters Ø25 - Ø250mm

• Segment Height: 10mm

• Thread: 1-1/4" UNC


Description Features Specification Application

Description

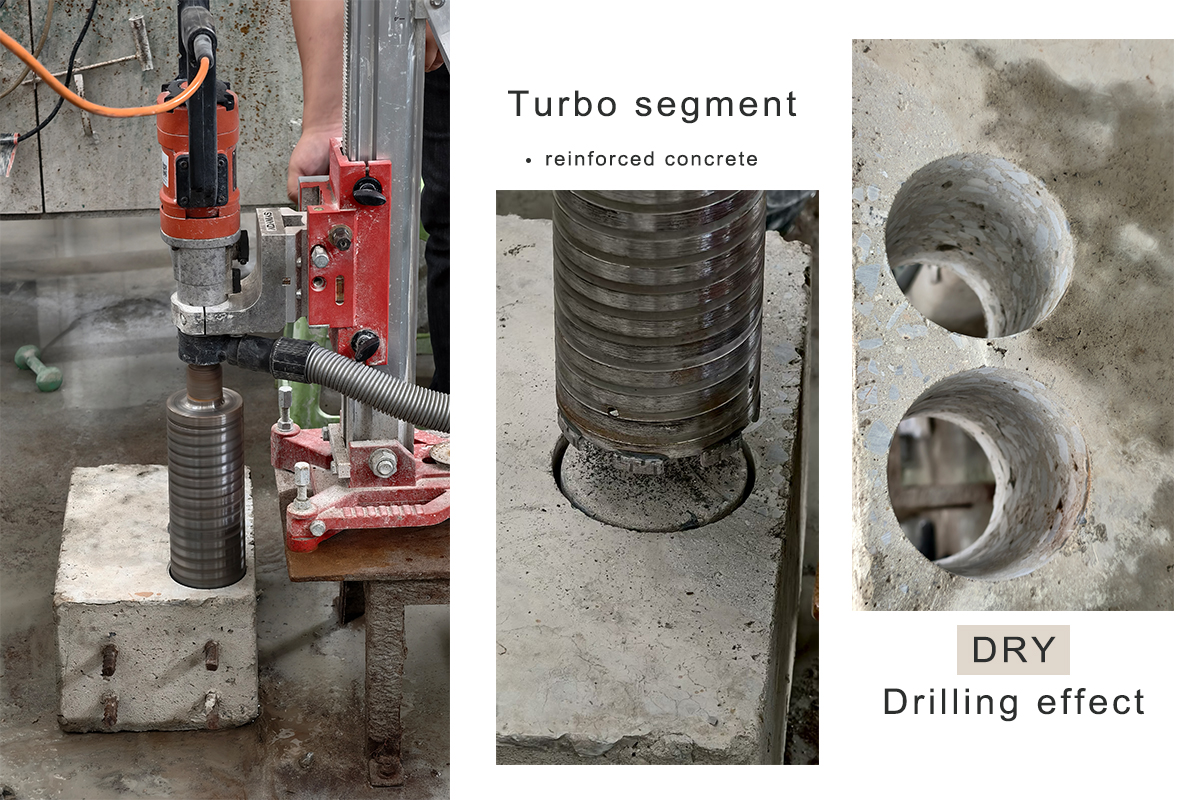

This micro-percussion dry core drill is a dedicated handheld drilling machine for drilling through reinforced concrete, masonry and other hard building materials, and is ideal for tasks that require high efficiency and durability.

Features

• Dry Use

• Laser welded technology,stable performance

• Turbo segment,better debris removal and extended working time

▷ Precise and fast drilling performance

▷ 450mm working length, deep drilling

▷ Material versatility: reinforced concrete and masonry

Specification

Item No.DiameterSegment SizeSegment NumberThreadWorking Length
CDCT02525mmCrown
1 1-1/4" UNC450/300mm
CDCT03232mm16x10x3.5mm3 1-1/4" UNC450/300mm
CDCT04242mm20x10x3.5mm3 1-1/4" UNC450/300mm
CDCT05252mm24x12x3.5mm41-1/4" UNC450/300mm
CDCT06262mm24x10x3.5mm51-1/4" UNC450/300mm
CDCT06767mm24x10x3.5mm61-1/4" UNC450/300mm
CDCT07676mm24x10x3.5mm61-1/4" UNC450/300mm
CDCT08282mm24x10x3.5mm71-1/4" UNC450/300mm
CDCT09292mm24x10x3.5mm81-1/4" UNC450/300mm
CDCT102102mm24x10x3.5mm91-1/4" UNC450/300mm
CDCT112112mm24x10x3.5mm91-1/4" UNC450/300mm
CDCT122122mm24x10x3.5mm101-1/4" UNC450/300mm
CDCT127127mm24x10x3.5mm111-1/4" UNC450/300mm
CDCT132132mm24x10x3.5mm111-1/4" UNC450/300mm
CDCT142142mm24x10x3.5mm121-1/4" UNC450/300mm
CDCT152152mm24x10x4.0mm121-1/4" UNC450/300mm
CDCT162162mm24x10x4.0mm131-1/4" UNC450/300mm
CDCT182182mm24x10x4.0mm131-1/4" UNC450/300mm
CDCT202202mm24x10x4.0mm151-1/4" UNC450/300mm
CDCT225225mm24x10x4.0mm161-1/4" UNC450/300mm
CDCT250250mm24x10x4.0mm171-1/4" UNC450/300mm



Application

● Concrete

● Brick

● Reinforced concrete

● Masonry

● Hard building materials
