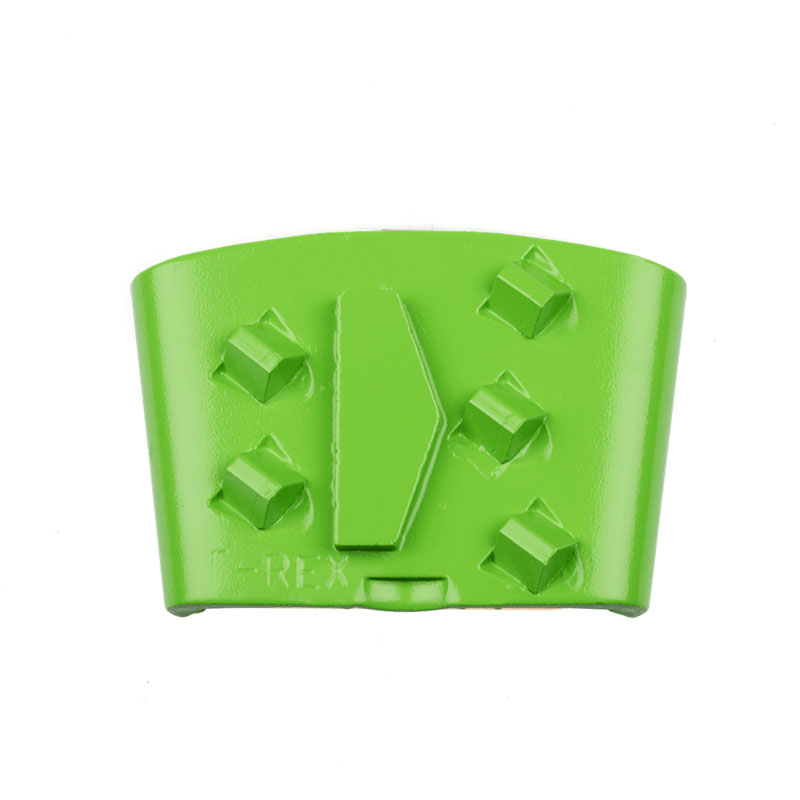

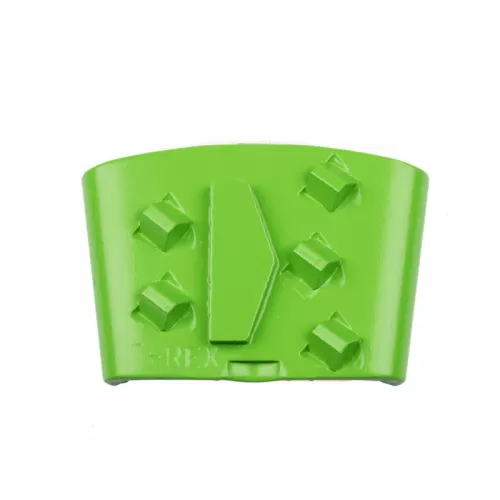

HTC Diamond Grinding Shoes For Floor Grinder
HTC diamond grinding plate for grinding concrete with superior efficiency.
Different segment types to choose: Flat segment,coffin segment,arrow segment,column segment;
Different metal bond hardness: Extra soft,soft,medium,medium hard,hard;
Applications
HTC Grinding Plate with PCD segment is used for removing the epoxy coating on the surface of the concrete with superior efficiency.
Specification
| Item No. | Segment No. | Segment size | Metal bond |
| HTC Diamond Grinding Plate | 5×1/4PCD + 1×diamond support segment | 1/4PCD | HTC |
Note
To choose the right diamond floor grinding shoe and diamond grinding cup wheels from suppliers, you must know the hardness of your concrete.
Concrete can be soft, hard, abrasive, dusty and brittle, etc. There are no two floors are ever the same, typically they are more abrasive when the floor is new or have a high sharp sand content. The more abrasive the floor the harder bond you will need to get the best performance out of the diamonds.
Bond - The strength of the metal binder that holds the diamond grit in the segment. Typically the harder the bond the longer the life. Soft concrete needs the hard bond, medium-hard bond for medium concrete, and soft bond for hard concrete.
OEM Package
Besides the neutral white box package, we have the OEM finishing package such as individual blister and paper insert for the blade. We can also make the package as your design, and provide package design service too.
