Stone Core Drill Bits
Home - Products - Stone Tools - Stone Core Drill Bits - Vacuum brazed Diamond Hole core bits for marble

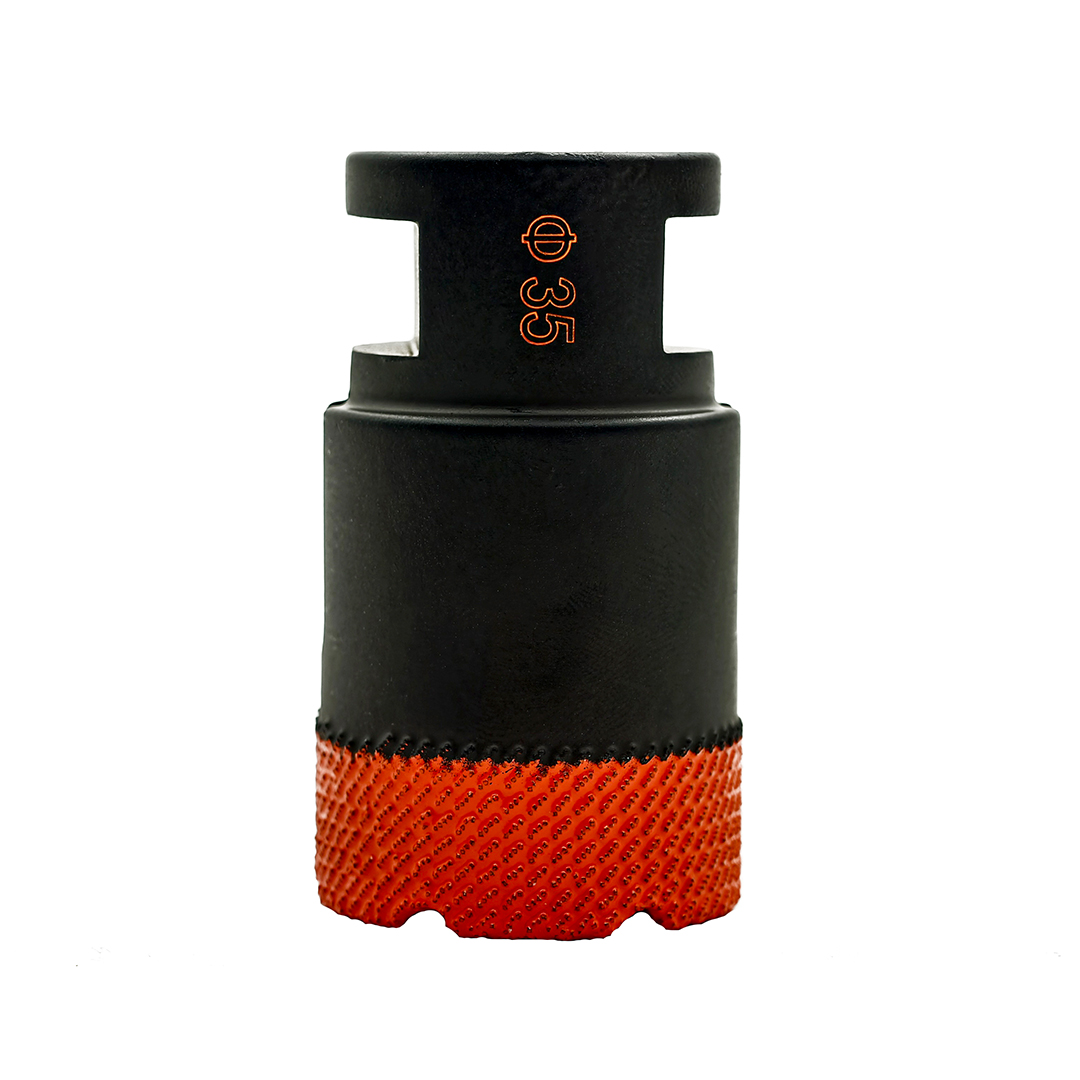

Vacuum brazed Diamond Hole core bits for marble

Vacuum brazed core drill is brazed in vacuum equipment, which ensures diamonds have the good combination with the tube.


Common sizes of vacuum brazed core bit are ranging from 5mm to 100mm in size.


Vacuum brazed core bits is used for professionally drilling kinds of any hard material including Ceramic, Porcelain, Marble.

Description Features Specification

Description

Vacuum Brazed Hole Saw Drill


  1. Diameter:5-100mm

  2. Segment height: 10/15mm

  3. Thread: M14

  4. Total length:60/75mm

Features

○ Vacuum brazed hole drill bits are compatible with most angle grinders.


○ Vacuum-brazed technology, can offer superior performance and extended life.


○ Unique U-shaped tooth profile and chip evacuation design facilitate chip removal and cooling.


○ Chip evacuation design cools the water and removes chips or other particles that escape during drilling.


○ Dry drill without water.


○ Versatile Applications: Diamond drill bits are ideal for easy dry drilling in ceramic, porcelain, marble, glass, granite, stone, masonry, and brick.


Specification

<tbody data-cke-widget-editable="tbody" data-cke-enter-mode="2" cke_widget_editable_focused">

Item No.DiameterSegment HeightArborTotal Length
SVCD0055mm10mmM1460mm
SVCD0066mm10mm  M1460mm
SVCD0088mm10mm  M1460mm
SVCD01010mm10mm  M1460mm
SVCD01212mm10mm  M1460mm
SVCD01414mm10mm  M1460mm
SVCD01616mm10mm  M1460mm
SVCD02020mm15mm  M1460mm
SVCD02525mm15mm  M1475mm
SVCD02828mm15mm  M1475mm
SVCD03030mm15mm  M1475mm
SVCD03535mm15mm  M1475mm
SVCD04040mm15mm  M1475mm
SVCD04545mm15mm  M1475mm
SVCD05050mm15mm  M1475mm
SVCD05555mm15mmM1475mm
SVCD06060mm15mmM1475mm
SVCD06565mm15mmM1475mm
SVCD07070mm15mmM1475mm
SVCD07575mm15mmM1475mm
SVCD08080mm15mmM1475mm
SVCD09090mm15mmM1475mm
SVCD100100mm15mmM1475mm
