Dekton Cutting Blade
Home - Products - Stone Diamond Tools - Stone Cutting Blades - Dekton Cutting Blade - Dekton Diamond Cutting Blade With Narrow U slot

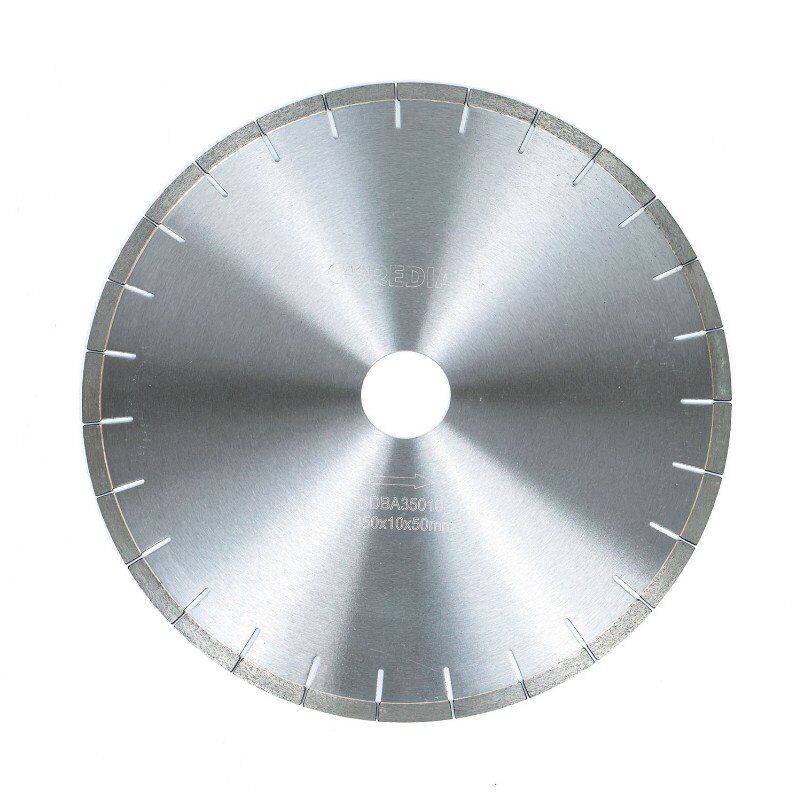

Dekton Diamond Cutting Blade With Narrow U slot

This diamond saw blade is designed for Dekton cutting, fast and smooth cutting, long lifespan.


Dekton blade has narrow U slots, it also has good sharpness and high efficiency during working. At the same time, it has the better cutting result: slippy cutting, flat surface, and even size. Stable cutting, narrow cutting gap, stone waste reduction.


This diamond cutting blade will be your best choice during Dekton cutting.


Diameter range from 250-600mm, segment height: 10mm, Arbor: 60/50mm.

Inquire Now
Description Features Application Brazed marble blade production process Delivery time Corediam Introduction

Description

SDBA Silver Brazed Diamond Cutting Blade for Dekton

The Corediam SDBA is a silver-brazed diamond blade with narrow U-slots, made for wet cutting Dekton on bridge saws and compatible stone saws. We built it for slab sizing and for fabrication work where edge condition matters, such as countertops and wall panels. It is also used for wet cutting porcelain and ceramic slabs.

  • Diameters: 250, 300, 350, 400, 450, 500 and 600 mm (10″ to 24″)

  • Segment height: 10 mm on every model

  • Standard bore: 60 mm, with other bores available on request

  • Construction: silver brazed segments with narrow U-slots

  • Cutting condition: wet cutting only

  • Supply: OEM branding, samples within two weeks, export to more than 50 countries


SDBA Blade Sizes and Specifications

Dekton diamond blade for clean and less chipping cut with bridge saw

Item No.DiameterSegment HeightSegment ThicknessArbor
SDBA250250mm10mm3.0mm60mm
SDBA300300mm10mm3.2mm60mm
SDBA350350mm10mm3.2mm60mm
SDBA400400mm10mm3.4mm60mm
SDBA450450mm10mm3.4mm60mm
SDBA500500mm10mm3.6mm60mm
SDBA600600mm10mm4.0mm60mm




















Features

1. Manufacturer technology: Silver brazed


2. Advantage:

• It has good sharpness and high efficiency in the process of cutting, the segments are not easy to fall off during work.

• Narrow cutting gap, stone waste reduction.

• Clean cuts and no chipping.


3. Suitable: wet cutting

4. Equipment: Stone saw,Bridge saw



Bridge Saw Fit and Custom 400 mm Blade

The standard SDBA400 has a 400 mm diameter, a 60 mm bore and 3.4 mm thick segments. For a custom 400 mm Dekton cutting blade, use SDBA400 as the reference and identify exactly what you need changed.

  • Replacing an existing blade. Send the current model or label, outside diameter, bore and any mounting drawing. Two blades with the same outside diameter can have different bores or mounting requirements.

  • Changing blade diameter. Check the diameters and cutting depth supported by your saw for the slab thickness and cut angle. Supply the spindle speed so the selected blade’s operating limits can be checked against the machine specifications.

  • Requesting a nonstandard specification. List the requested bore, diameter or segment dimensions and attach a drawing if available. Corediam can review feasibility and confirm the specification, sample requirements and lead time for the requested configuration.


SDBA Construction: Silver Brazed with Narrow U-Slots

Silver brazing joins the diamond segments to the steel core with silver solder. The narrow U-slots between segments are there to help with edge condition and to let water reach the cut. The narrow kerf also removes less slab material per cut. Because this construction is intended for wet use, always cut with plenty of water directed into the cut.

Segment attachmentHow it is madeTypical use
Silver brazed (SDBA)Segments are brazed to the steel core with silver solder.Wet cutting of stone and slab materials on bridge saws. Not for dry cutting.
Laser weldedSegments are joined to the core by laser welding.Widely used for concrete and asphalt cutting, including dry work.
SinteredThe rim is formed by sintering and is common on tile and ceramic blades.Tile, ceramic and some slab blades, in continuous rim and segmented types.


Cutting Tips for Dekton with SDBA

Follow the saw, slab and blade manufacturers' instructions first. These practices are common to good Dekton fabrication:

  • Support the slab fully. Cut on a flat, supported surface. Vibration is a main cause of chipped edges.

  • Use plenty of water. Point the water right into the cut and keep it flowing for the whole cut. SDBA is for wet cutting only.

  • Feed slower than for granite. Ultra-compact slabs need a steady, slower feed. Slow down again at the entry and exit of the cut and during miter cuts.

  • Start the cut from outside the slab. Avoid plunge cuts, and do not pull the blade back through the cut.

  • Check for tension strips. Some slabs have them at the perimeter. Remove them before you cut, as the slab maker advises.

  • Run a test cut on scrap. Colors and thicknesses behave differently, so test every new slab type.

  • Inspect the blade. Check for cracks, missing segments and vibration before every shift. Stop at once if the blade runs rough.

Chipping troubleshooting

What you seeCommon causesWhat to check
Chips at the exit of the cutFeed too fast at the exit, or the slab is unsupported where the blade leaves it.Slow the feed near the exit and support the slab on both sides of the cut line.
Chips along the top edgeWorn or glazed blade, feed too fast, or not enough water.Blade condition, water flow at the cut, and feed rate against the manufacturer's advice.
Wavy cut or vibrationLoose flanges, wrong bore or reducing ring, spindle runout, or an unsupported slab.Bore fit, flange seating and spindle runout before you cut again.
Chipped miter faceFeed too fast for an angled cut, or the saw angle is not exactly 45°.Verify the angle, slow the feed and cut a test pair before the job.
Slab cracks during the cutInterrupted water flow, tension strips left in, or the slab shifts on its support.Continuous water supply, slab edges and support under the whole piece.

For broader fabrication guidance, see our Dekton cutting guide.


SDBA vs. SDBC and SDBD

These series share several published sizes. Specify the series code as well as the diameter and bore so the quote identifies the blade construction you need.

SeriesWhich requirement to put on your RFQ
SDBASpecify SDBA when you are replacing this model or need its silver-brazed, narrow U-slot configuration for wet slab cutting.
SDBCSpecify the silent blade series when your purchase calls for that construction. Include any noise-related acceptance criteria.
SDBDSpecify the ultra-thin silent steel core when that construction is required. Ask for the core dimensions for your chosen model if they affect your process.

For an assortment that covers several cutting requirements, browse the full Dekton cutting blade range.


Why Buy SDBA from Corediam

  • Manufacturer. Corediam Tools designs and manufactures diamond tools for construction, stone and DIY markets, with more than 20 years in the industry.

  • Export experience. We supply customers in more than 50 countries, so we know different saw makes, bore sizes and market requirements.

  • OEM and branding. We support OEM branding, labels and packaging.

  • Fast response. We aim to reply within 8 hours.

  • Documents. We hold more than 10 certificates and patents. Tell us which documents your project needs.


Application

Wet cutting dekton,porcelain and ceramic materials


Cutting Test:

Cutting materialsCutting equipment Cutting conditionsCutting speedLifespan
Marble Bridge sawWet cutting2-2.5m/min600-700m


Test Results:


Fast & stable cutting | minimum chipping and good edge

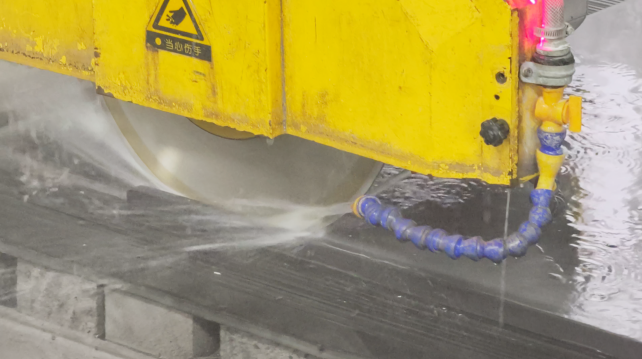

Dekton Cutting Blade Narrow U slot

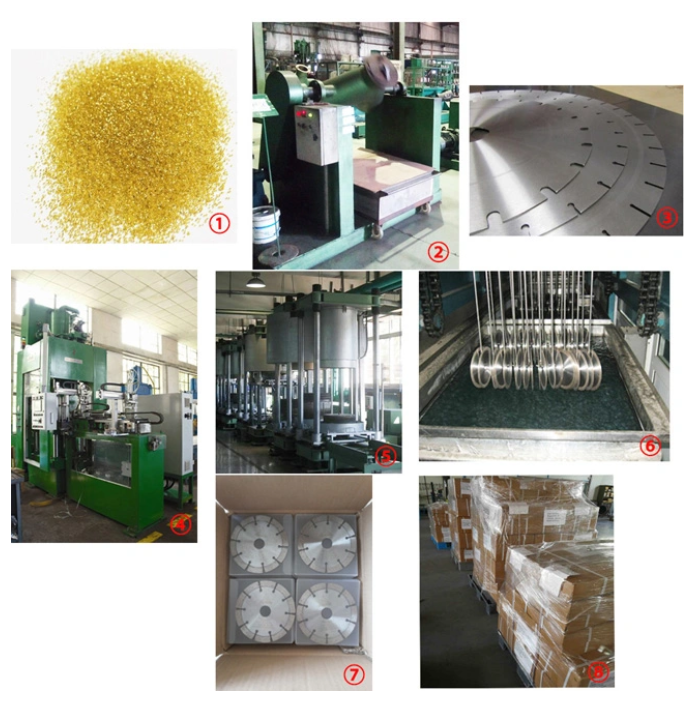

Brazed marble blade production process

Raw material→ powder mixing → Steel core process → cold press → segment sintering → welding → surface treatment → package → dispatch

400mm Dekton Cutting Blade

Delivery time

Delivery time depends on the order quantity and customization requirements.

Generally, production can be completed in 30-35 days.


For sample test, we can finish preparation within 2 weeks
Our leading time will be about 2-3 weeks for the batch order.


SDBA Purchasing FAQs

What is the SDBA Dekton cutting blade?

SDBA is a silver-brazed diamond blade with narrow U-slots for wet cutting Dekton, porcelain and ceramic slabs on bridge saws and stone saws. It is available from 250 to 600 mm with a 10 mm segment height.

Can SDBA be used for dry cutting?

No. SDBA is designed for wet cutting only. Dry cutting can overheat the segments and the core, which is a safety risk. Use plenty of water on every cut.

Is a 400 mm (16″) SDBA blade with a 50 mm bore a standard model?

The published SDBA400 specification lists a 60 mm bore. For a 50 mm bore, send your saw model and mounting dimensions and we will confirm availability and how the blade will be supplied.

What are the inch sizes of the SDBA models?

SDBA350 is 14″, SDBA400 is 16″, SDBA450 is 18″, SDBA500 is 20″ and SDBA600 is 24″. SDBA250 and SDBA300 are 10″ and 12″.

Which diameter should I choose for my bridge saw?

Choose the diameter your saw is built for and check the cutting depth for your slab thickness and cut angle. Send us the saw model and spindle rpm if you are unsure, and we will help match the blade to the machine.

How do I check whether SDBA reduces chipping on my slabs?

Request a sample and cut your actual material, thickness and cut type. Compare visible chips, cut accuracy and finishing allowance against your current blade under equivalent conditions. For miter work, include a joint fit check on the trial pieces.

Can SDBA make 45° miter cuts?

Tell us the cut angle, slab thickness and saw model when you request a sample, and we will confirm the suitable configuration before you order. Always cut a test pair first and check the joint.

Can SDBA cut Neolith, Lapitec or Laminam?

Our published application covers Dekton, porcelain and ceramic slabs. For other sintered slab brands, send the slab brand and thickness and trial a sample before you buy in volume.


Request an SDBA Sample or Bulk Quote

Send your saw model, blade diameter, required bore, slab material and thickness, cut type and quantity by size. Attach a blade label for a replacement order or a mounting drawing for a custom configuration. Ask for the proposed blade specification, sample schedule and batch price in the same inquiry.

Request an SDBA Sample or Quote





Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.


Why choose Corediam Tools ?

1. 20+ experiences in diamond tool industry

2. Exported to 50+ countries worldwide,Understanding different market demands

3. Fast Response with 8 hours

4. OEM & Branding Support

5. 15+ international industry exhibitions,Face-to-face communication

6. 10+ Certificates and patents


Dekton Cutting Blade Narrow U slot
