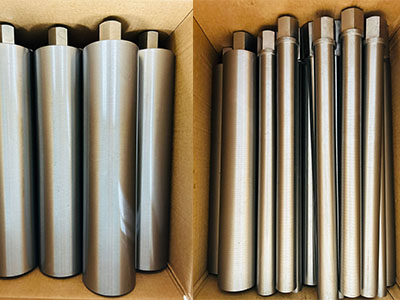

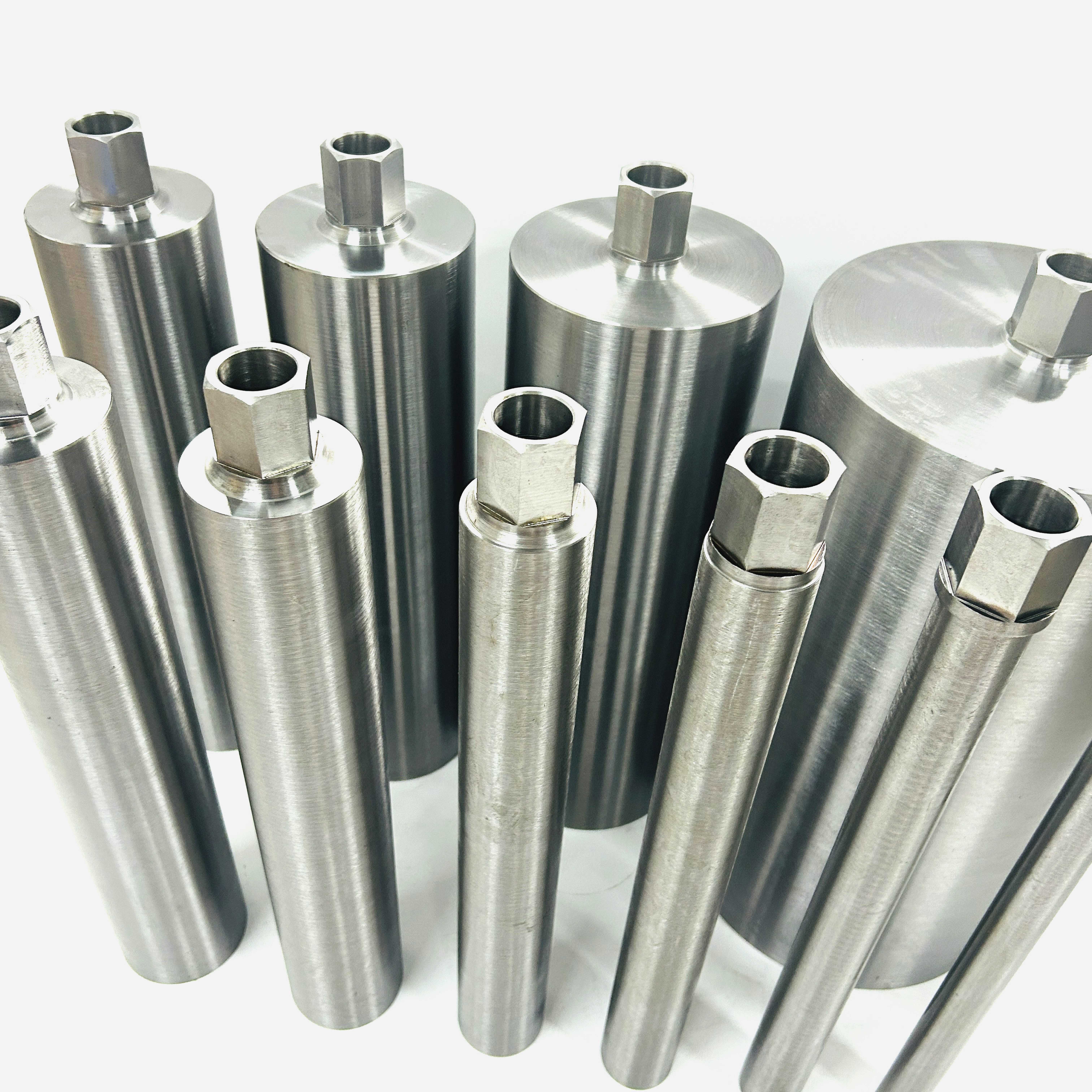

Core drill barrel
Applications: barrels of wet core drills as requested size...
The type of diamond core drill can be wet core bits with different segment shapes, such as flat segment, Great Wall segment, turbo segment,dotted segment etc.
| Manufacturing | Lathing, welding |
| Diameter range | 10mm-650mm |
| Working length | 450mm, OEM working length accept |
| Adaptor | 1 1/4'' UNC |
| Application | To be used for laser welding and retipping diamond segments to diamond core drill bits |
Specification
| Item No. | Barrel diameter (mm) | Barrel Thickness (mm) | Effective Length | Adapter |
| CCDB01015 | 10 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB01215 | 12 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB01415 | 14 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB01615 | 16 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB01815 | 18 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB02015 | 20 | 1.5 | 450mm | 1 1/4"UNC |
| CCDB02220 | 22 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB02420 | 24 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB02520 | 25 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB02620 | 26 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB02820 | 28 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03020 | 30 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03220 | 32 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03420 | 34 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03520 | 35 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03620 | 36 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03720 | 37 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB03820 | 38 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB04020 | 40 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB04520 | 45 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB05020 | 50 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB05520 | 55 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB06020 | 60 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB06520 | 65 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB07020 | 70 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB07520 | 75 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB08020 | 80 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB10020 | 100 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB11220 | 112 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB12020 | 120 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB12520 | 125 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB13020 | 130 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB14020 | 140 | 2.0 | 450mm | 1 1/4"UNC |
| CCDB15025 | 150 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB16025 | 160 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB17025 | 170 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB18025 | 180 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB20025 | 200 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB22325 | 223 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB24825 | 248 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB29825 | 298 | 2.5 | 450mm | 1 1/4"UNC |
| CCDB34830 | 348 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB39830 | 398 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB44830 | 448 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB49830 | 498 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB54830 | 548 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB59830 | 598 | 3.0 | 450mm | 1 1/4"UNC |
| CCDB64830 | 648 | 3.0 | 450mm | 1 1/4"UNC |
Features

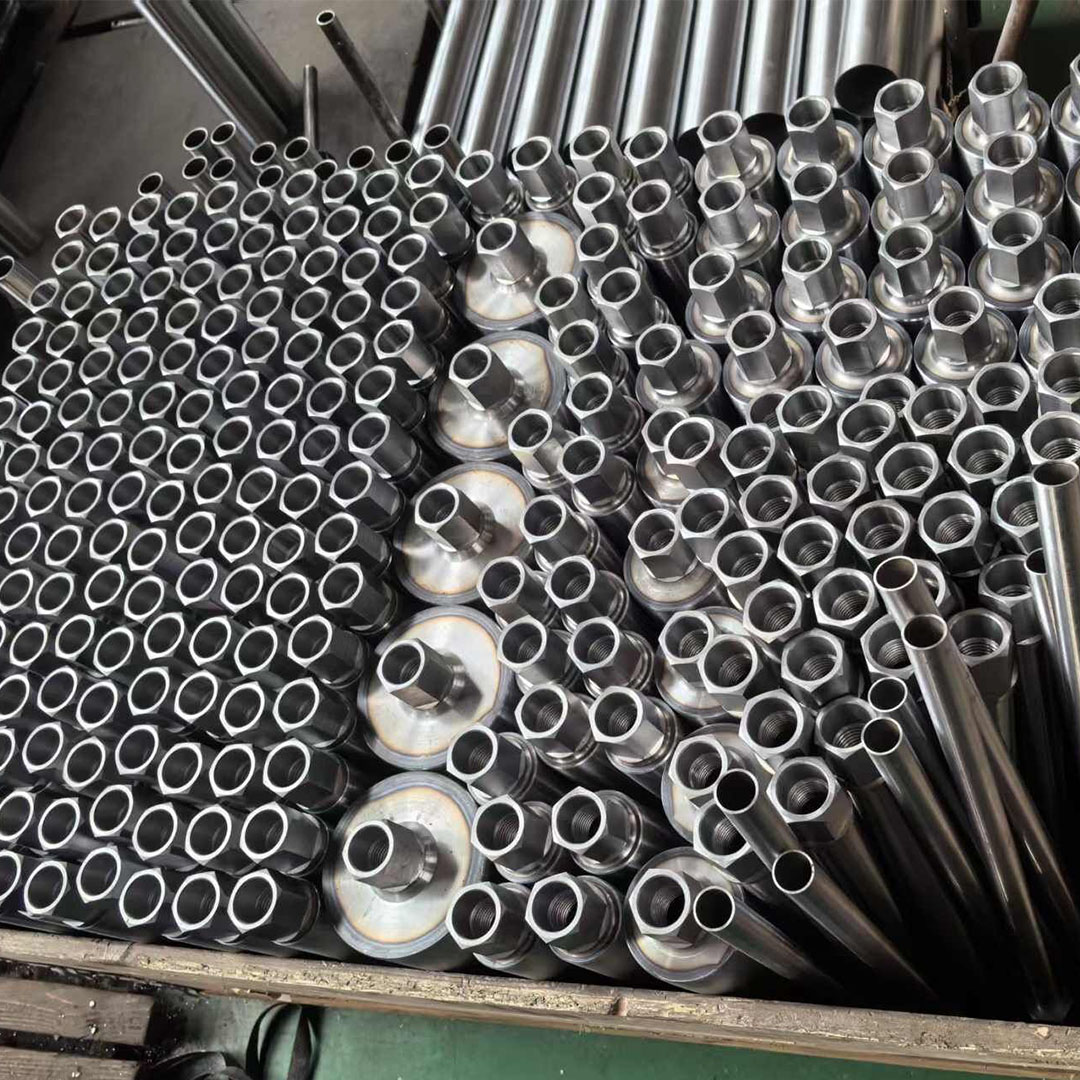

Manufacturer technology: lathing and welding
Suitable: wet drilling concrete, reinforced concrete, masonary with superior efficiency.
Delivery
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
Package

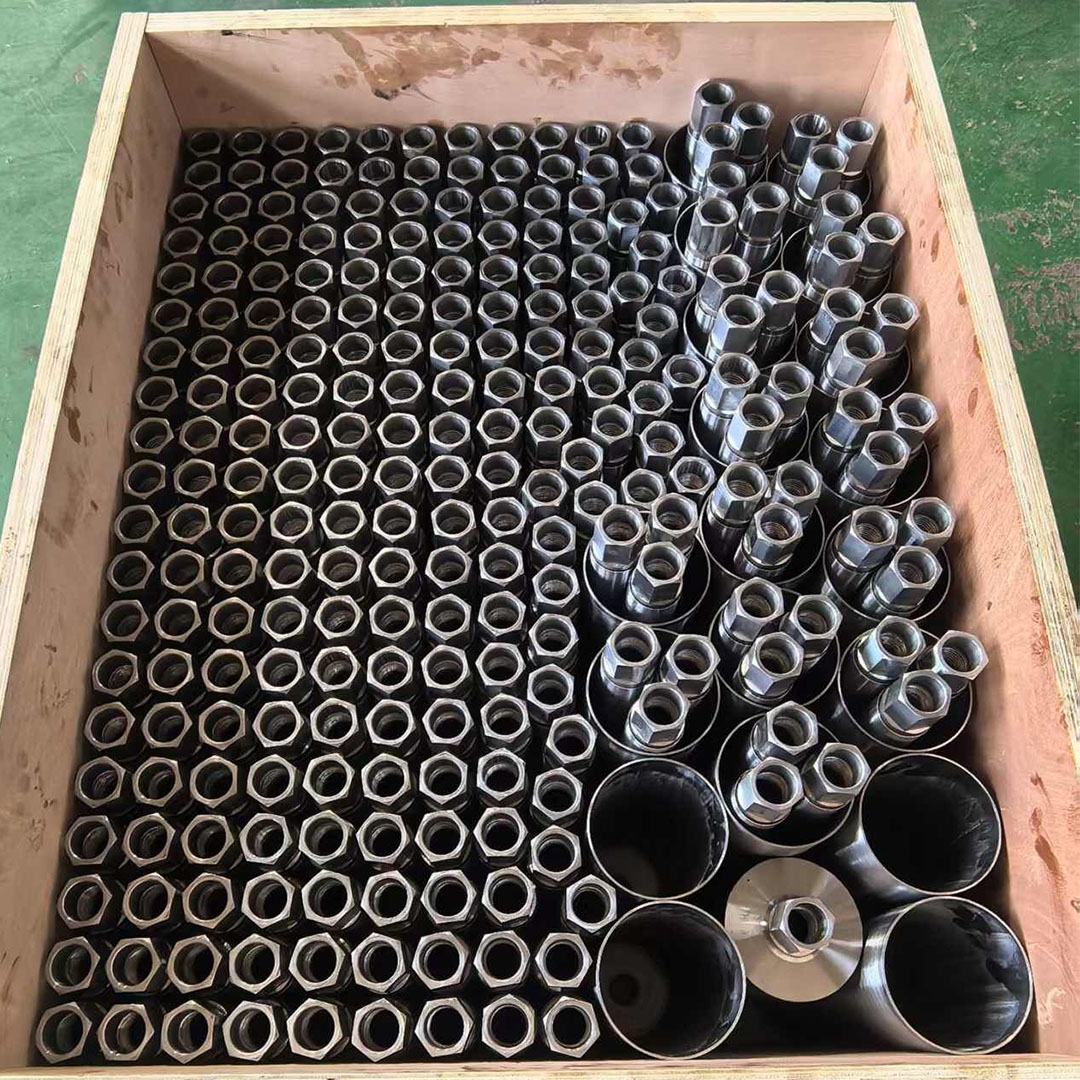

Wooden box packaging;
Shipping Methods:
We offer flexible shipping options including sea freight , air freight , and international express (DHL/UPS/FedEx). Exact methods depend on your needs.
Payment Terms:
T/T (Bank Transfer), PayPal, Credit Card. Other options can be discussed.
