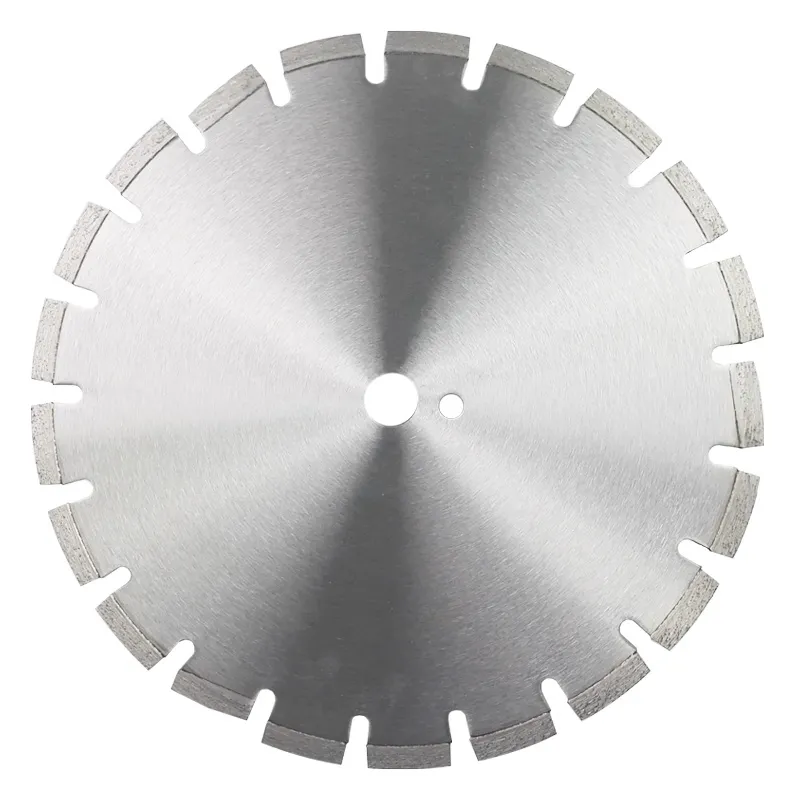

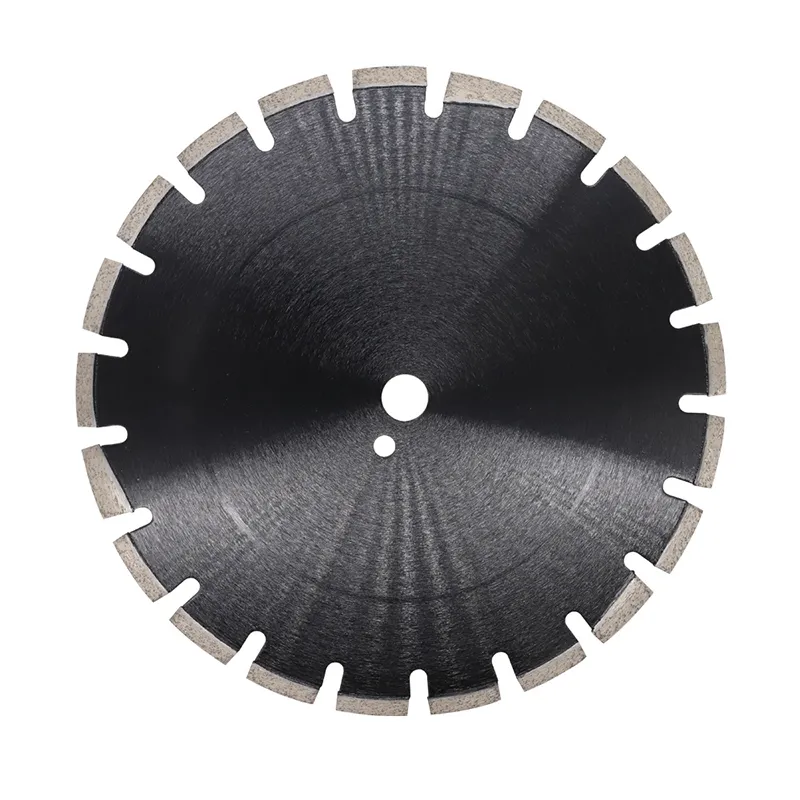

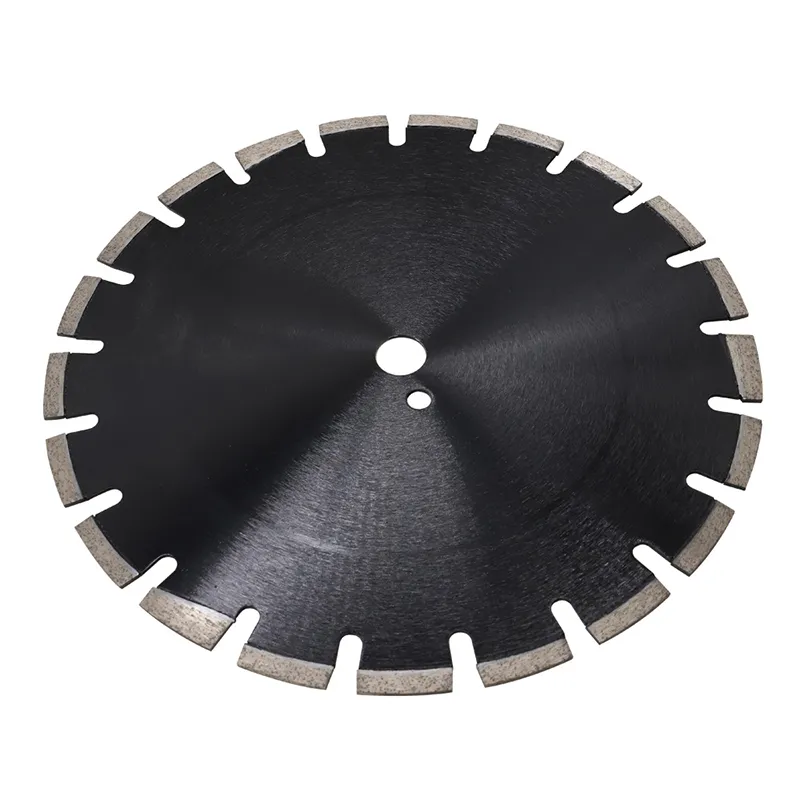

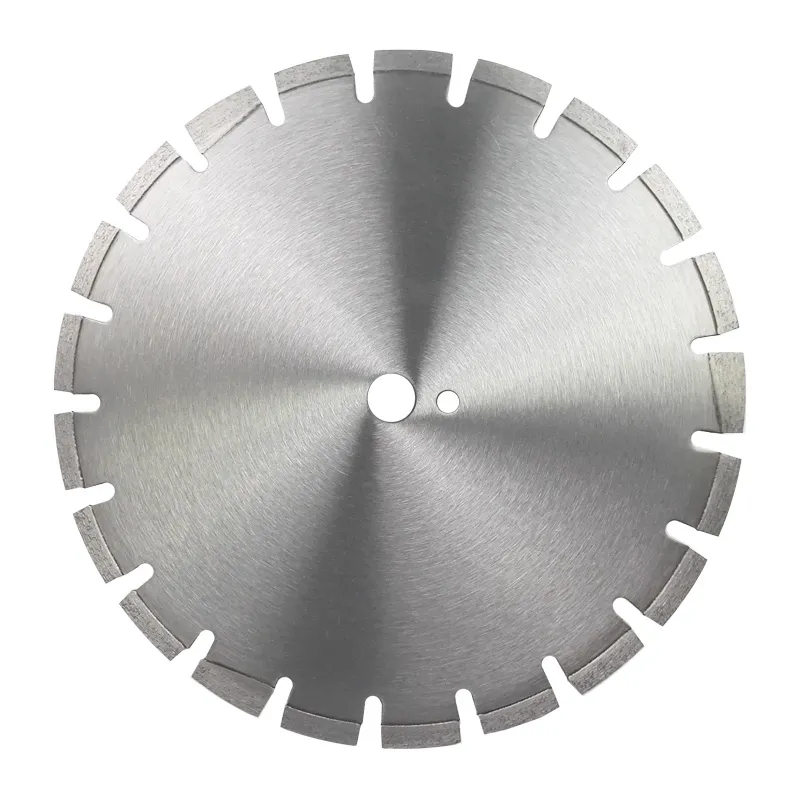

Asphalt cutting blade with U slot can be installed on handheld saw, floor saw, walk-behind saw, using for dry or wet cutting asphalt, green concrete and abrasive materials.
EN13236 standards products guarantee a safe cutting conditions.
Protective segments protect the steel core from undercutting.
Standard, premium and professional quality levels blades options are as your request. High tension steel core asphalt blades are suitable for every popular brand handheld power saws and low power road saws.
Description
High performance diamond saw blades designed for asphalt, with undercut protection to prevent segment loss
Cutting materials:
• Asphalt
• Green Concrete
• Block
• Other abrasive materials
Recommended for handheld saws and walk-behind saws
1. It has three protective teeth for undercut protection.
2. The segmented design has better heat dissipation and reduces asphalt adhesion, which is very suitable for cutting abrasive materials.
3. It can cut in dry or wet conditions, but in order to achieve maximum cutting performance of the saw blade, water can be used to cool the saw blade.
4. Asphalt saw blades are more abrasive and have a longer service life.
5. There are different diameters to choose from, and it is suitable for different equipment. 12-inch saw blades are used for hand-held power saws, and 18-inch saw blades are used for walk behind saw.
Specification
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| CALU30010 | 300mm | 10mm | 3.2mm | 25.4/20mm |
| CALU35010 | 350mm | 10mm | 3.2mm | 25.4mm |
| CALU40010 | 400mm | 10mm | 3.2mm | 25.4mm |
| CALU45010 | 450mm | 10mm | 3.6mm | 25.4mm |
| CALU50010 | 500mm | 10mm | 3.6mm | 25.4mm |
| CALU55010 | 550mm | 10mm | 3.6mm | 25.4mm |
| CALU60010 | 600mm | 10mm | 4.5mm | 25.4mm |
Tips
• Match the right material: Asphalt saw blades are suitable for cutting some soft materials, such as green concrete and asphalt. If used for cutting concrete materials, it will accelerate the wear of the saw blade.
• Clean the blade regularly: Asphalt materials are highly abrasive, they may adhere to the blade during the cutting process, blocking the gap and affecting heat dissipation.
• Safety measures: Wear protective devices such as goggles, earplugs, and eye masks to ensure that the equipment is fixed firmly.
How is the quality?
First, we have a very serious control system.
Second, in the face of different markets, we have different quality levels. The main promotion for Euro and US markets is the premium level. The main promotion for the Middle East Market is the standard level.
Third, the different quality level has different cutting speed and working life.
Delivery time
Sample delivery:
If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
Corediam Introduction
As a professional diamond saw blade manufacturer, Corediam provides reliable diamond disc for tools distributors, importers, wholesalers and professional tool brands worldwide. Our diamond saw blades are engineered for precision, cutting speed and long service life, with solutions available for construction, stone processing, road cutting and other industrial applications.
Looking for a reliable OEM diamond saw blade supplier?
Tell us your required blade diameter, application, specifications and branding requirements. Our team can recommend a suitable solution and develop the OEM details with you.
