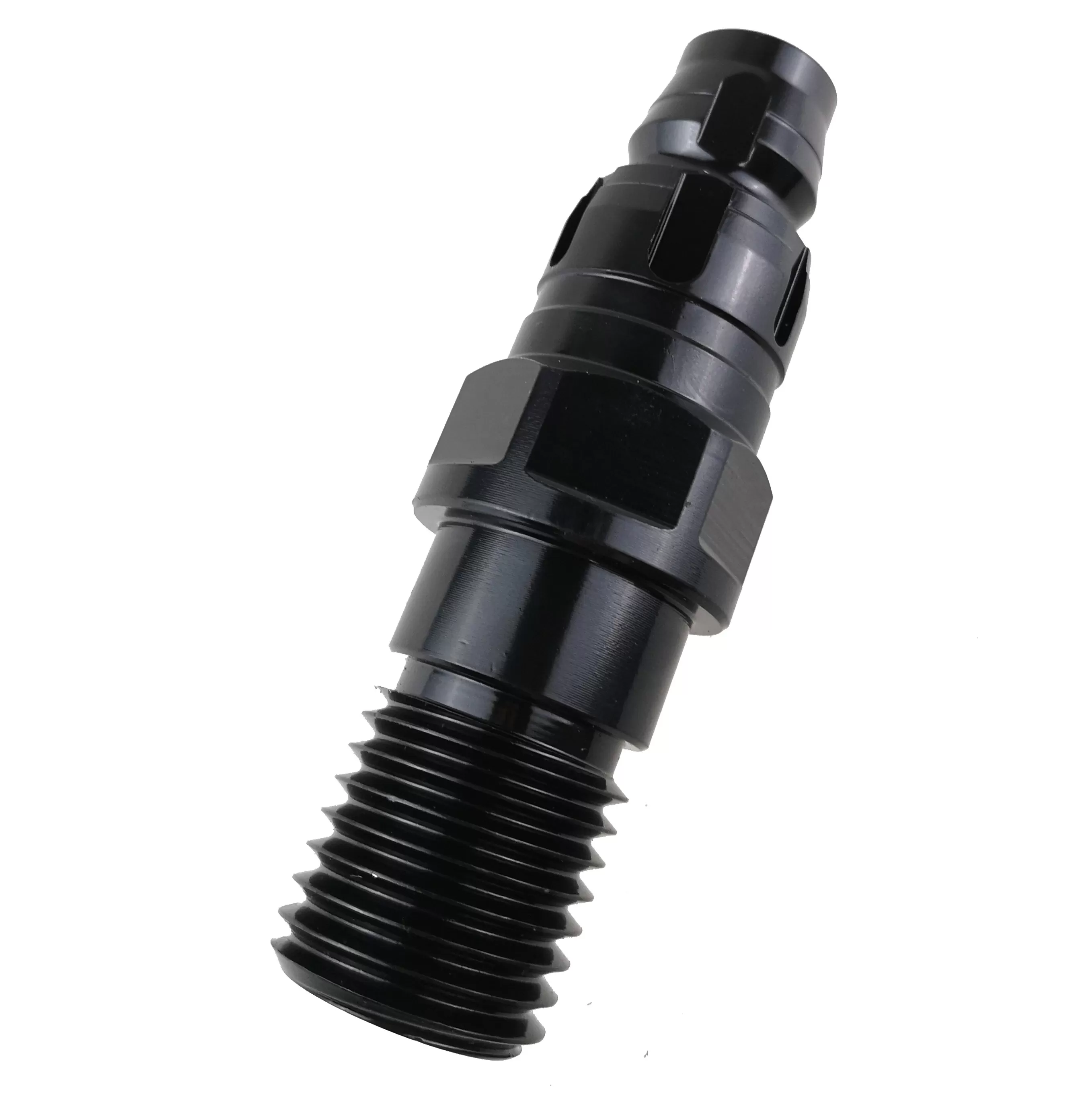

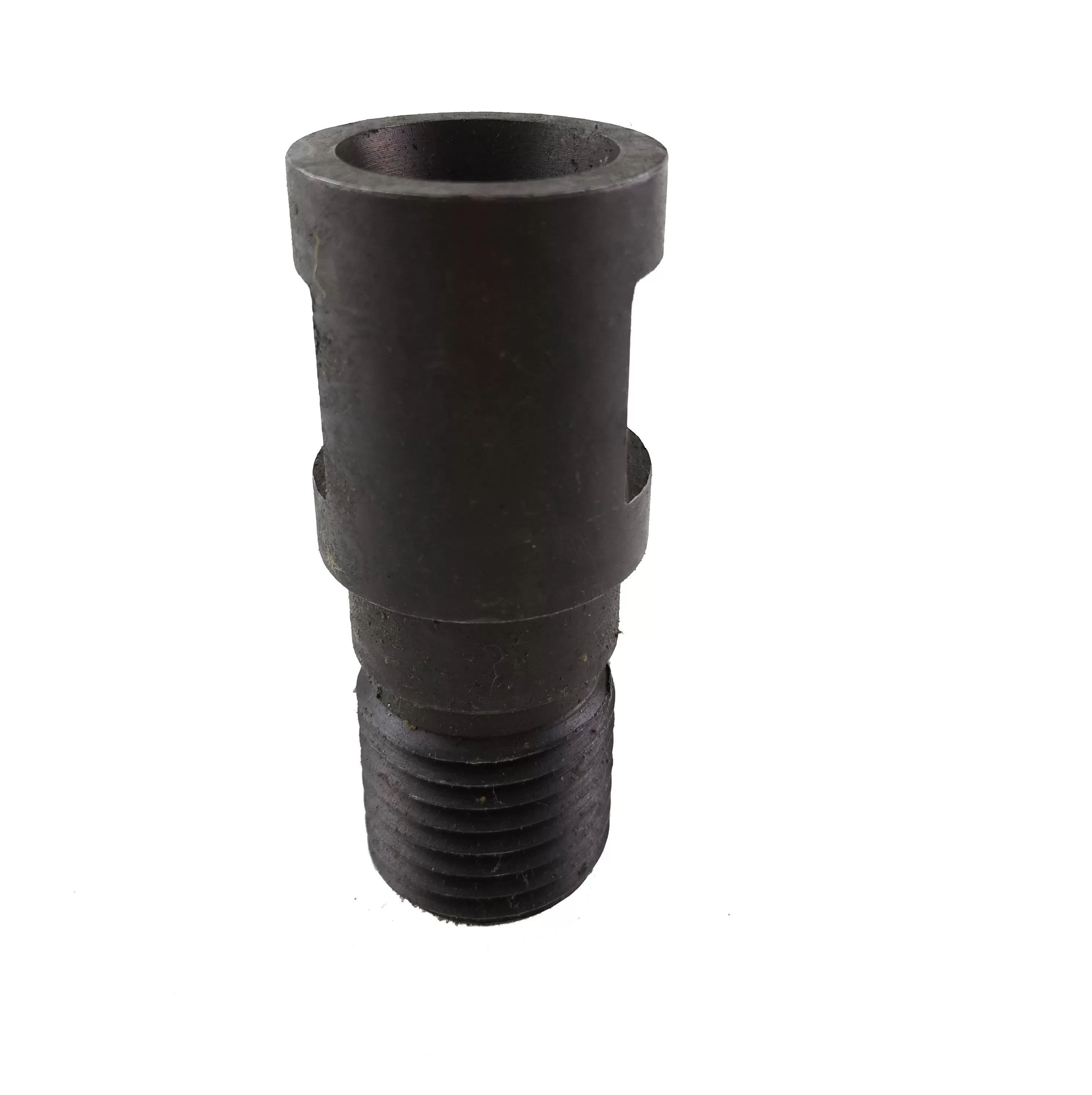

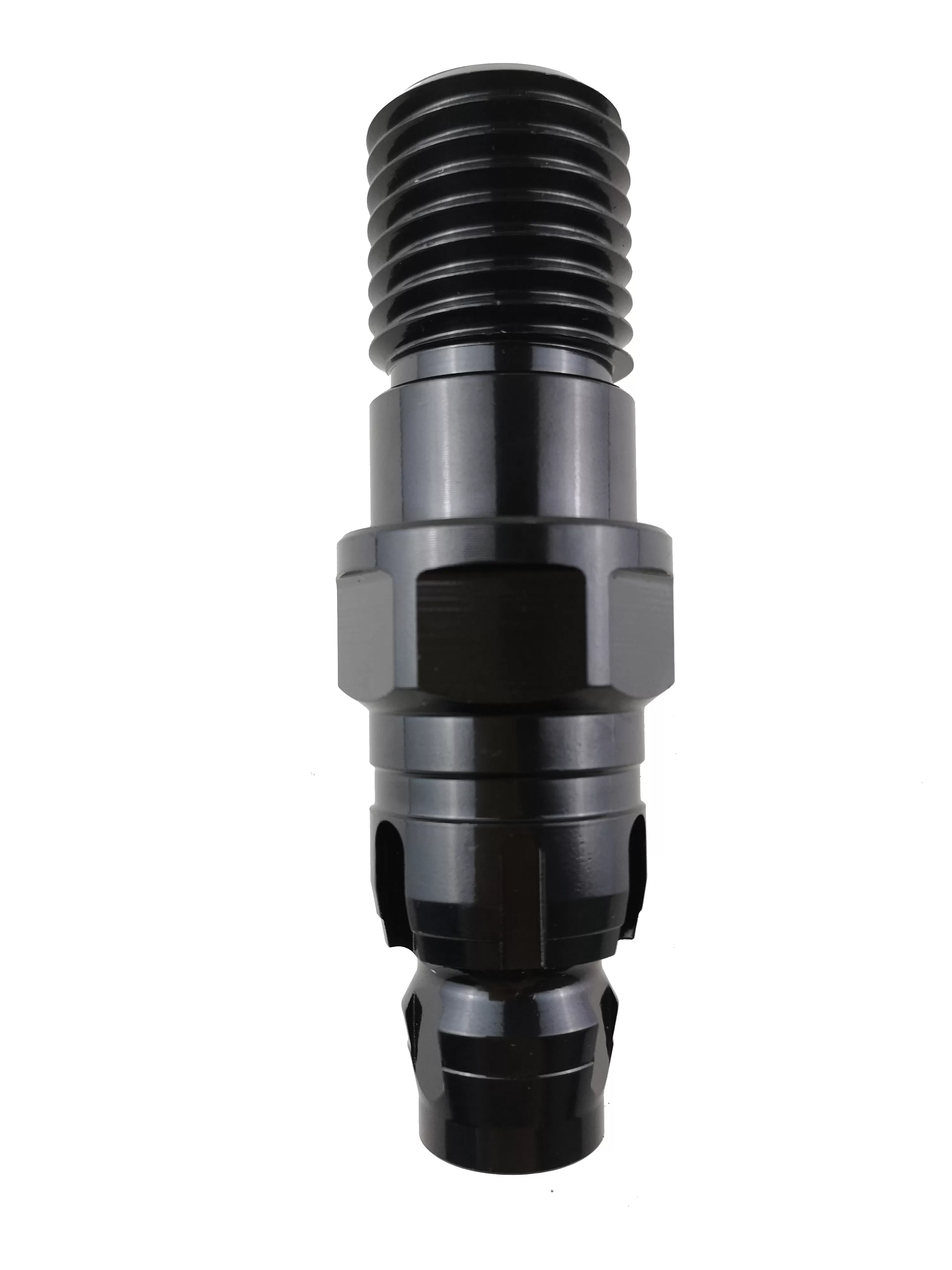

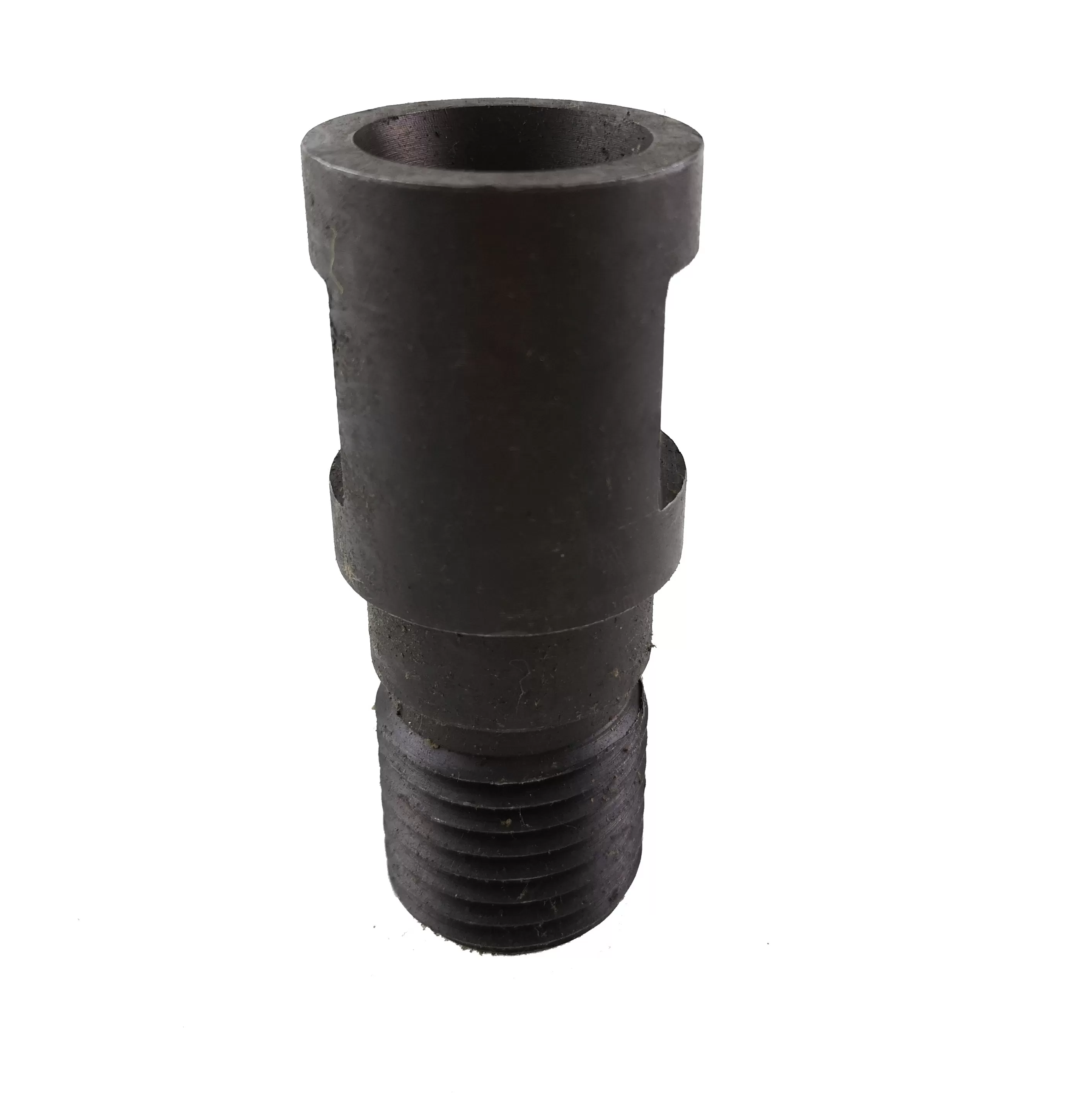

Steel Adaptor for Core Drill Bit

The Corediam Core Drill Bit Adapter is designed for professional diamond drilling systems where the machine connection and core bit thread do not match directly. It provides a practical way to use compatible core bits across different drilling setups, reduce unnecessary replacement of existing tools and simplify accessory sourcing.

Key Information

• Product type: Steel thread conversion adapter

• Machine-side options: M14, M16, 1/2" BSP, 1-1/4" UNC and 5/8"-11

• Core-bit-side options: M14, M16 and 5/8"-11

• Typical purpose: Connecting diamond core bits to drilling equipment with a different thread or arbor

• Order support: Standard configurations, sample evaluation, batch supply and OEM packaging

• Packing: Export cartons reinforced with straps

Send us your drill model, spindle specification, core bit thread, male/female requirement and order quantity to confirm the correct configuration.

What Does the Adapter Solve?

Diamond drilling contractors, tool distributors and private-label buyers often manage core bits and drilling machines sourced from different markets. The bits may still be suitable for the drilling application, but their thread may not fit the available machine spindle.

A correctly matched adapter can help you:

• Connect an existing diamond core bit to a different drilling spindle or arbor.

• Support metric, BSP and UNC connection requirements within one product range.

• Reduce duplicated core bit inventory for different machine interfaces.

• Supply conversion accessories together with wet or dry core bits.

• Build a more complete diamond drilling accessory range for distributors.

• Replace lost, damaged or incompatible connection components without changing the entire drilling setup.

How to Select the Right Core Drill Bit Adapter？

1. Confirm the Drilling Machine Connection

Check the machine manual, spindle marking or existing accessory. Do not select an adapter only from the machine brand or general equipment type, because different models may use different connections.

2. Identify the Core Bit Thread

Confirm the thread printed on the bit, shown in the product specification or measured from the connection. Common international searches include 1/2" BSP core drill adapter, 1-1/4" UNC diamond core adapter, M14 core bit adaptor and 5/8"-11 core drill arbor adapter.

3. Confirm Male and Female Orientation

Thread diameter alone is not enough. A male connection cannot replace a female connection of the same nominal size. Photos of both the machine spindle and bit connection are helpful when the marking is unclear.

4. State Whether the Drilling Is Wet or Dry

The thread is the first compatibility requirement, but wet drilling may also require a water path or a separate water-feed accessory. Tell us whether your bit is used for wet concrete drilling, dry masonry drilling or another operating method.

5. Provide the Core Bit Diameter and Equipment Type

Large-diameter drilling on a rig-mounted machine and small-diameter drilling on a handheld unit create different operating conditions. These details help confirm that the requested connection is appropriate for your setup.

6. Confirm Order and Packaging Requirements

For distribution or private-label programs, include the expected quantity, SKU mix, labeling, carton quantity and packaging format in the inquiry.

Applications

These adapters are used as connection accessories rather than cutting components. Typical purchasing and operating situations include:

• Connecting diamond core bits to core drilling machines with different thread systems.

• Adapting wet or dry core bits for compatible drilling equipment.

• Converting between metric and imperial connection standards.

• Supporting replacement and maintenance stock for drilling contractors.

• Expanding the accessory range offered by diamond tool distributors.

• Supplying matched adapters with complete core drilling tool orders.

• Standardizing accessory SKUs for regional markets and private-label product lines.

Why Connection Accuracy Matters

An adapter is a small component, but incorrect geometry can disrupt the entire drilling setup. Buyers should evaluate more than whether the two thread names appear similar.

The important points include:

• Thread dimension and pitch

• Male/female orientation

• Concentric alignment

• Secure engagement depth

• Adapter length

• Clearance around the machine spindle

• Compatibility with the intended drilling method

• Stable connection during repeated installation and removal

Corediam applies dimensional and connector-thread inspection within its quality-control process for core drilling components. This helps purchasing teams reduce fitment disputes and maintain more consistent accessory specifications across repeat orders.

FAQ

What Is the Difference Between an Adapter and an Extension Rod?

An adapter changes the connection between the drilling machine and core bit. An extension rod increases drilling reach while normally retaining the same compatible connection system. Confirm whether you need thread conversion, additional working length or both.

Can One Adapter Fit Every Diamond Core Bit?

No. Compatibility depends on the thread standard, diameter, pitch and male/female orientation at both ends. The machine connection and bit connection must be confirmed separately.

Which Standard Connection Options Are Shown on This Page?

The listed machine or arbor options are M14, M16, 1/2" BSP, 1-1/4" UNC and 5/8"-11. The listed tool-side thread options are M14, M16 and 5/8"-11. Contact Corediam to confirm the exact two-end combination available for your order.

Can I Use the Same Adapter for Wet and Dry Drilling?

The correct answer depends on the adapter structure and drilling setup. Thread compatibility must be confirmed first. For wet drilling, also confirm whether the connection must allow water delivery or work with a separate water-feed component.

Can Corediam Review a Custom Connection?

Custom requirements can be evaluated from a drawing, sample or fully defined dimensions. State the thread standard, pitch, gender, overall length, quantity and application so the technical team can review manufacturability.

Request the Correct Connection

Send your machine connection, core bit thread and male/female orientation to Corediam. We will review the specification and help you confirm a suitable steel diamond core bit adapter for your drilling tool order.
