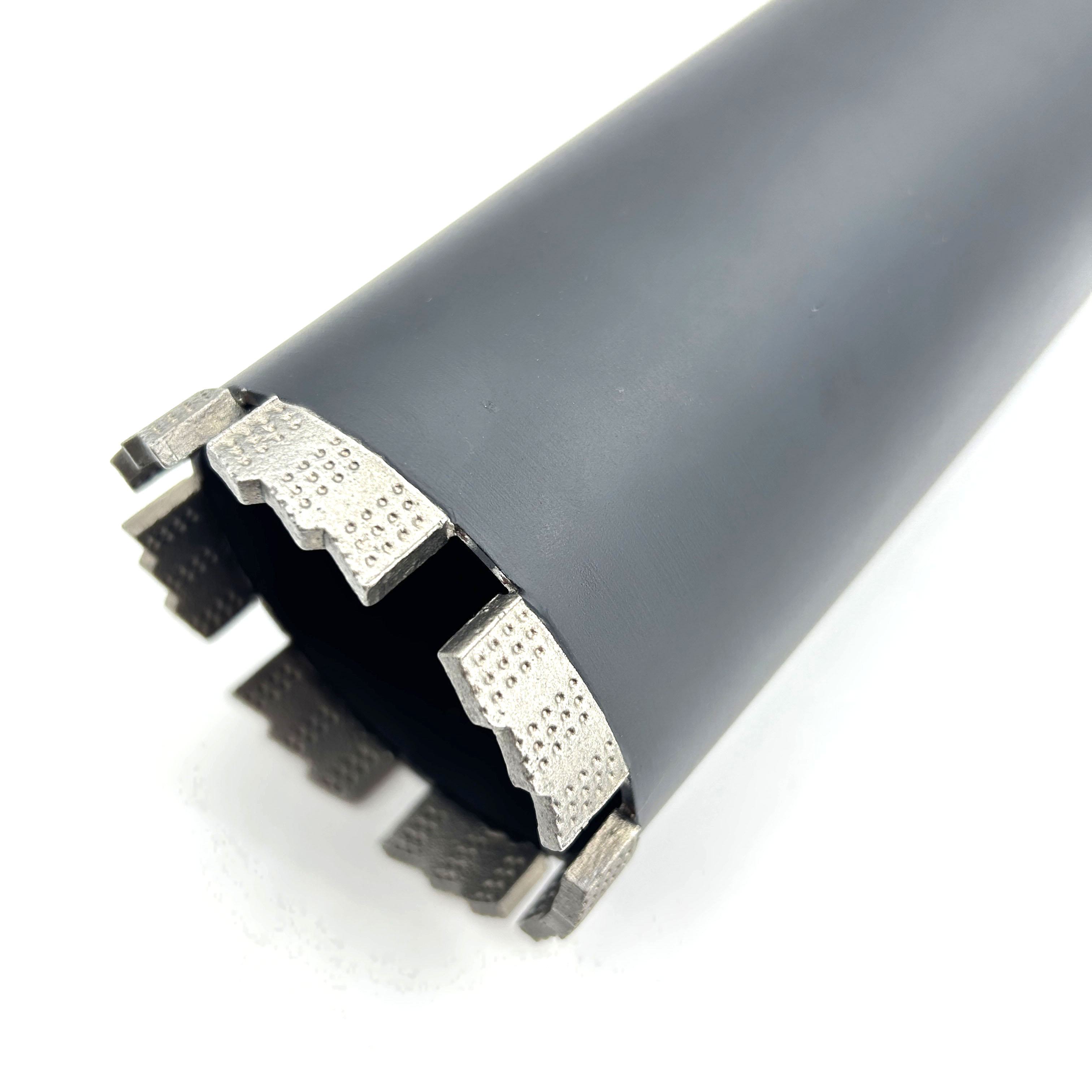

Shark Segment diamond core bits

Diamond shark segment core drill bits



Production process: laser welding technology

Drilling materials: concrete, reinforced concrete

Drilling types: wet drilling


The available sizes of laser welded core drill are from 1 '' (25mm) to 16''(400mm) in size.

Special segments design make the segments have very excellent sharpness, achieving fast drilling.

Segments height, working length and connection type can be customized according to your requirement.

Inquire Now Next Product
Features of Diamond Core Drill Bits Drilling Application Specification of Laser Welded Diamond Core Drill Bits Manufacturing Process and Quality Control Corediam Introduction

Features of Diamond Core Drill Bits

1) Laser welded technology.

2) Segment welding strength guaranteed in drilling works.

3) High quality 20# seamless steel barrel

4) Good control in Dynamic balance during rotation

5) Sharp and fast drilling speed with stable long lifespan

6) Different Quality level to choose


The  wet core drill is laser welded by the advanced Dr. Fritsch full-automatic laser welding machine, which ensures the core bits to achieve high welding strength.

Laser Welded Wet Diamond Core Bits

Drilling Application

Applications: drilling concrete, reinforced concrete, asphalt-over concrete with superior efficiency.

Specification of Laser Welded Diamond Core Drill Bits

Product CodeDiameterSegment HeightEffective LengthThread
CWDS0264501026mm10mm450mm1-1/4" UNC
CWDS0324501032mm10mm450mm1-1/4" UNC
CWDS0374501037mm10mm450mm1-1/4" UNC
CWDS0424501042mm10mm450mm1-1/4" UNC
CWDS0514501051mm10mm450mm1-1/4" UNC
CWDS0634501063mm10mm450mm1-1/4" UNC
CWDS0764501076mm10mm450mm1-1/4" UNC
CWDS0824501082mm10mm450mm1-1/4" UNC
CWDS010245010102mm10mm450mm1-1/4" UNC
CWDS10845010108mm10mm450mm1-1/4" UNC
CWDS11245010112mm10mm450mm1-1/4" UNC
CWDS12245010122mm10mm450mm1-1/4" UNC
CWDS1275010127mm10mm450mm1-1/4" UNC
CWDS13245010132mm10mm450mm1-1/4" UNC
CWDS14245010142mm10mm450mm1-1/4" UNC
CWDS15245010152mm10mm450mm1-1/4" UNC
CWDS16245010162mm10mm450mm1-1/4" UNC
CWDS18245010182mm10mm450mm1-1/4" UNC
CWDS20045010200mm10mm450mm1-1/4" UNC
CWDS22545010225mm10mm450mm1-1/4" UNC
CWDS25045010250mm10mm450mm1-1/4" UNC
CWDS30045010300mm10mm450mm1-1/4" UNC
CWDS35045010350mm10mm450mm1-1/4" UNC
CWDS40045010400mm10mm450mm1-1/4" UNC


Manufacturing Process and Quality Control

Laser Welded Wet Diamond Core Bits

Dr. Fritsch Automatic Laser Welding Process


Laser Welded Wet Diamond Core Bits

Core Drill Barrel Inspection

Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
