Wet Core Bits
Home - Products - Construction Tools - Diamond Core Drill Bits - Wet Core Bits - Lightning Segment Diamond core drill with 10mm segment height

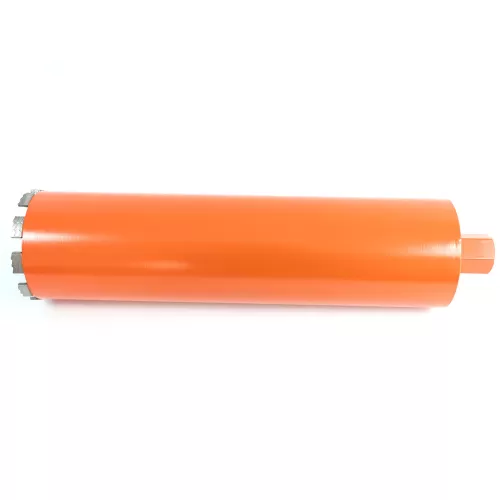

Lightning Segment Diamond core drill with 10mm segment height

The lighting segment core drill bits are laser welded by the advanced Dr. Fritsch full-automatic laser welding machine, which ensures achieve high welding strength.


The available sizes of laser welded lightning core drills are from 1 '' (25mm) to 14''(350mm) in size.


The core drill is used for professionally wet drilling different hardness of concrete, reinforced concrete.


Lightning segment design achieves the sharp and fast drilling performance.


Applications: drilling concrete, reinforced concrete, asphalt-over concrete with superior efficiency.

Inquire Now Next Product
Features of Diamond Core Drill Bits Product Display Specification Package Corediam Introduction Factory Why corediam

Features of Diamond Core Drill Bits

1) Laser welded technology.

2) Segment welding strength guaranteed in drilling works.

3) Segments height, working length and connection type can be customized according to your requirement.

4) Good control in Dynamic balance during rotation

5) Sharp and fast drilling speed with stable long lifespan

6) Different Quality level to choose

Laser Welded Diamond Turbo Core Drill Bits

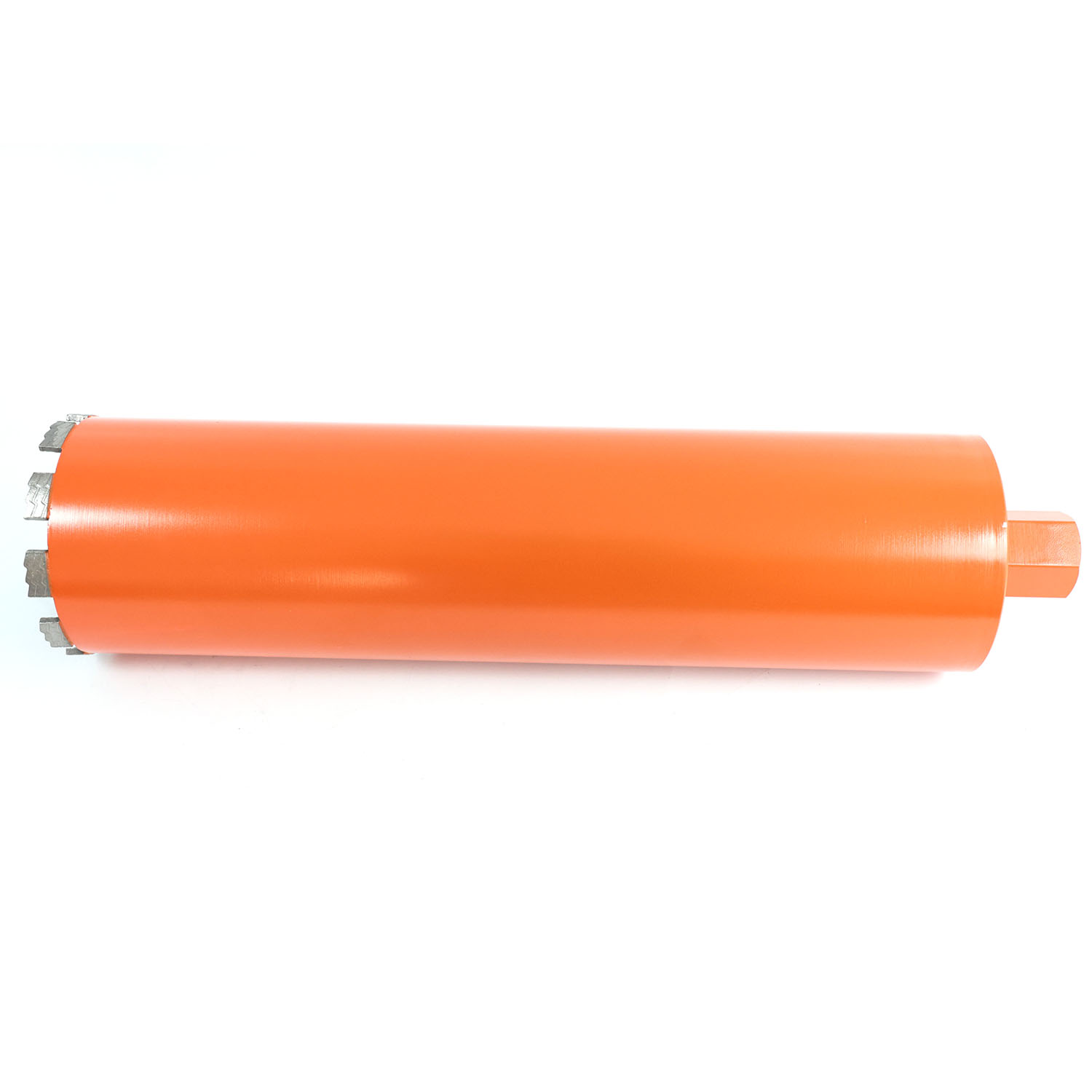

Product Display

The effective length of the core drill bit is 450mm.

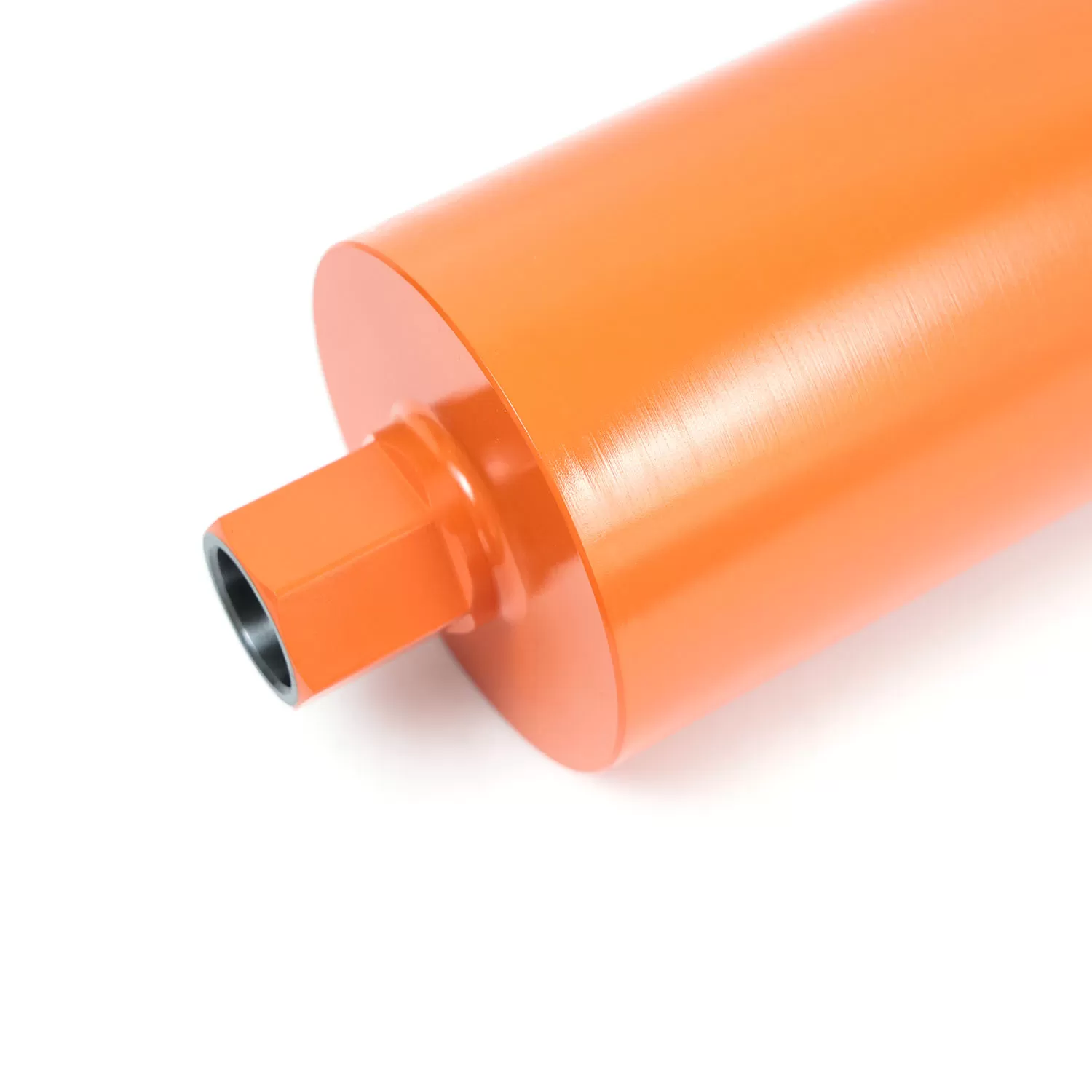

The adapter type is 1-1/4" UNC.


The core drill segment height is 10mm.

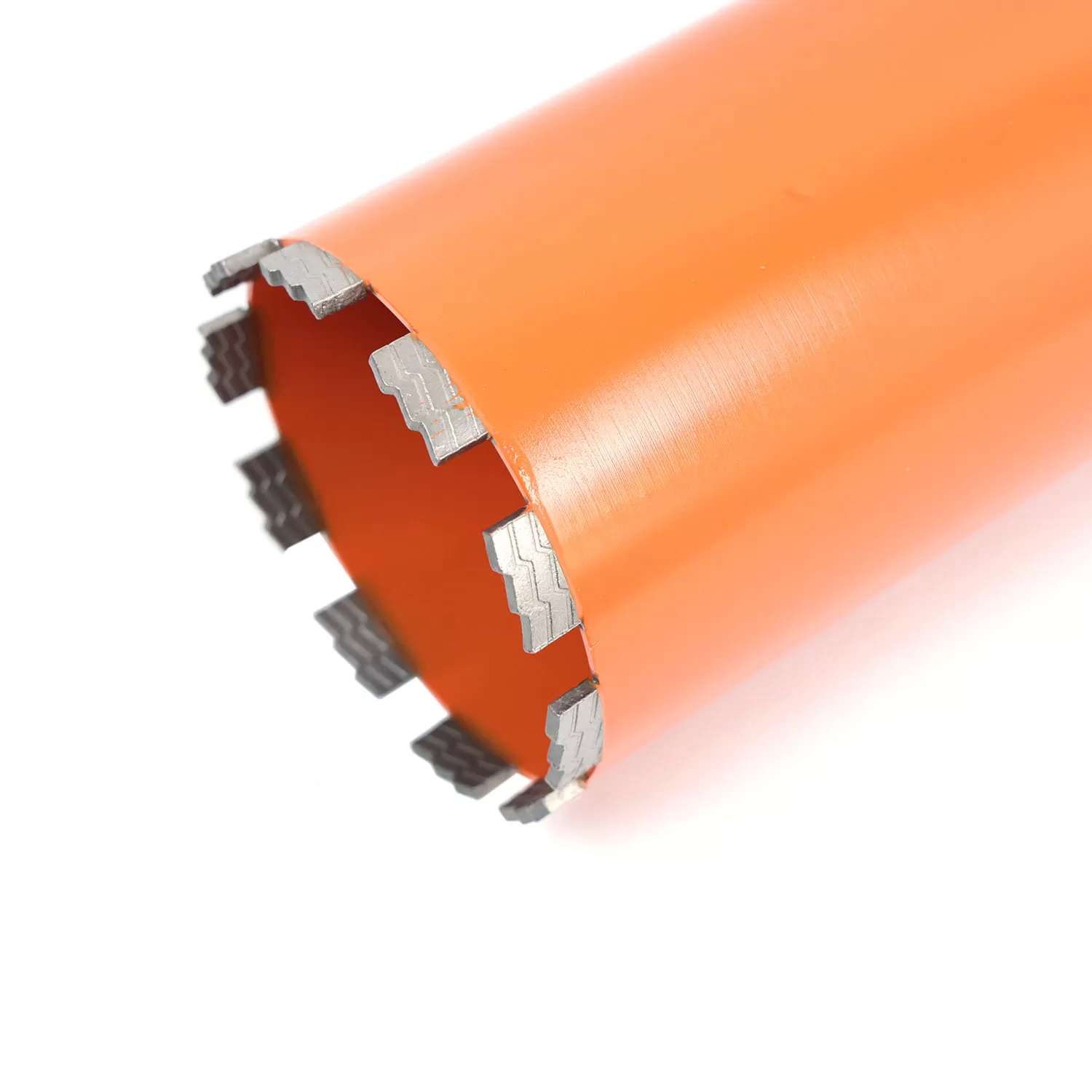

The segment types is shaped like lightning segment.


Use environment: under wet conditions.






  • Lightning Segment Diamond core drill with 10mm segment height

  • Lightning Segment Diamond core drill with 10mm segment height

Specification


Item No.DiameterSegment HeightArborEffective Length
CWDF524501052mm101-1/4" UNC450mm
CWDF774501077mm101-1/4" UNC450mm
CWDF10245010102mm101-1/4" UNC450mm
CWDF11745010117mm101-1/4" UNC450mm
CWDF12745010127mm101-1/4" UNC450mm
CWDF15245010152mm101-1/4" UNC450mm
CWDF25045010250mm101-1/4" UNC450mm


Package

Through the white box packaging, the company logo can be marked on the diamond lightning segment core drill bits.


Shipping:

we could ship by Commercial Express,like UPS,DHL,FedEx,we could also ship by air,by sea,by land as your request.






Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.


Corediam Tools Outdoor

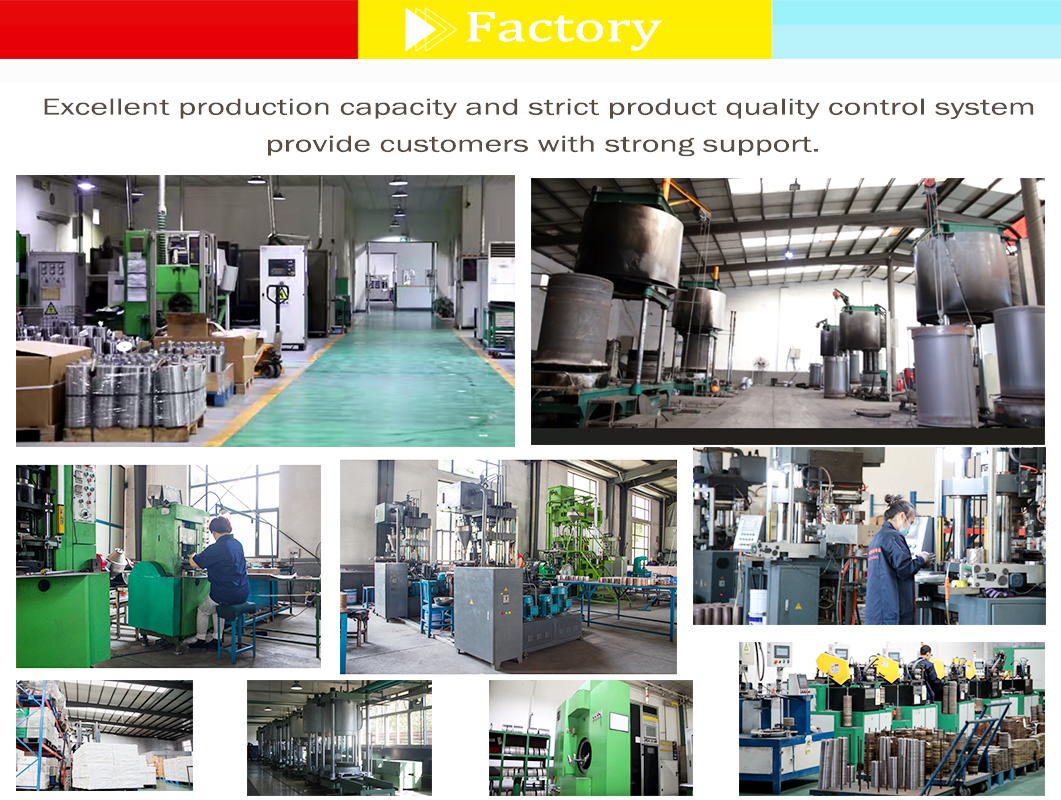

Factory

Lightning Segment Diamond core drill with 10mm segment height

Why corediam

Lightning Segment Diamond core drill with 10mm segment height
