Tile Cutting: Perfect Edges

Tile Cutting: Perfect Edges

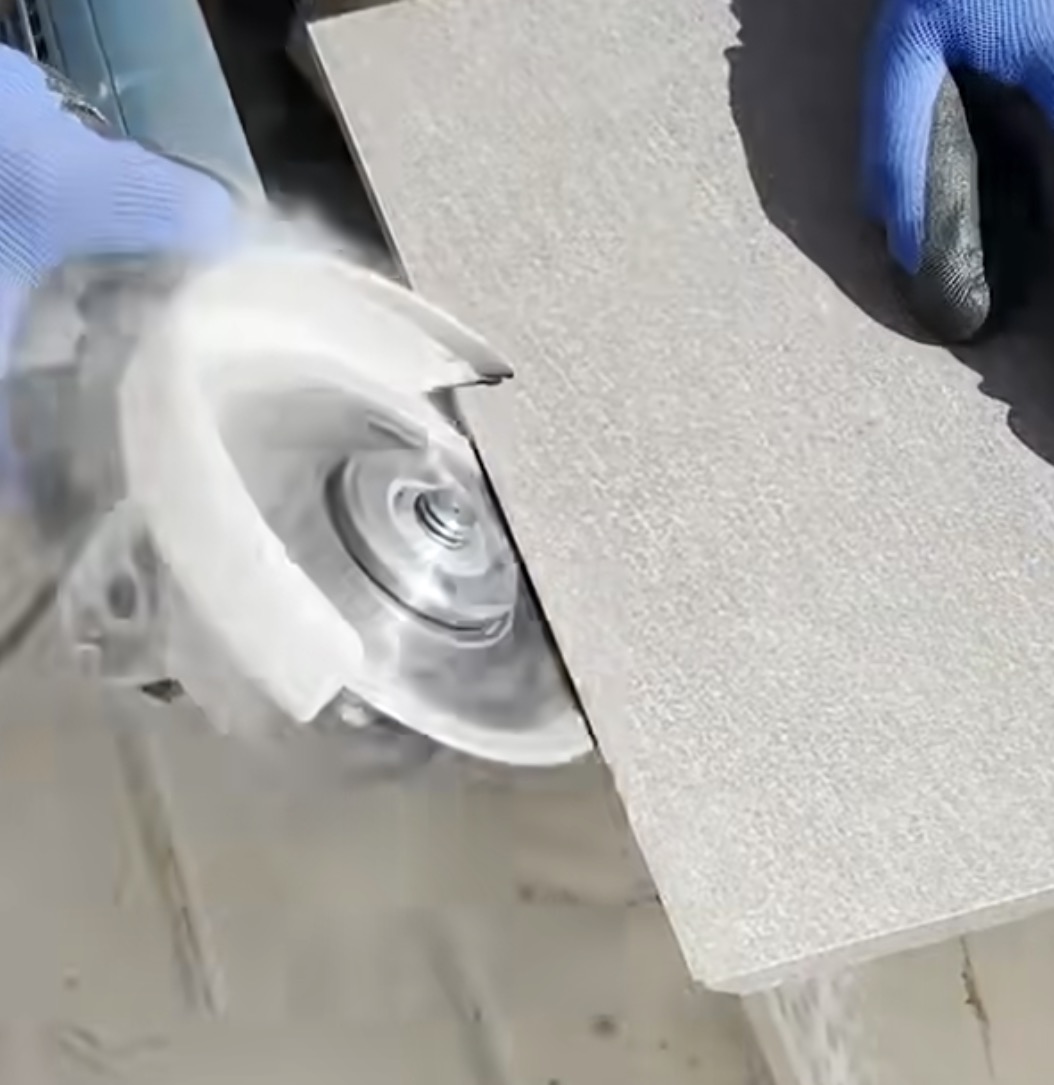

When cutting tiles, a specialized tile cutter is employed to ensure clean, precise edges that are free of chips.In addition to standard straight cuts, when tiles are positioned at corners—to ensure a seamless join, achieve precise angles, and prevent rough cut edges from being exposed—we perform a 45-degree cut (miter cut).

How do you choose a tile blade?

It primarily depends on the application for the cutting edge.

• If there are no strict requirements regarding the smoothness of the cut edges—particularly in applications where the tile edges will be concealed during everyday use and thus will not compromise the aesthetic appeal of the building—one may opt for more cost-effective tile cutting disc for the cutting work.

• If the cut edges are to remain exposed, we must ensure they are as smooth,no chipping as possible. This requires the use of high-precision, high-quality tile diamond blades.

Factors Affecting the Smoothness of the Cutting Edge?

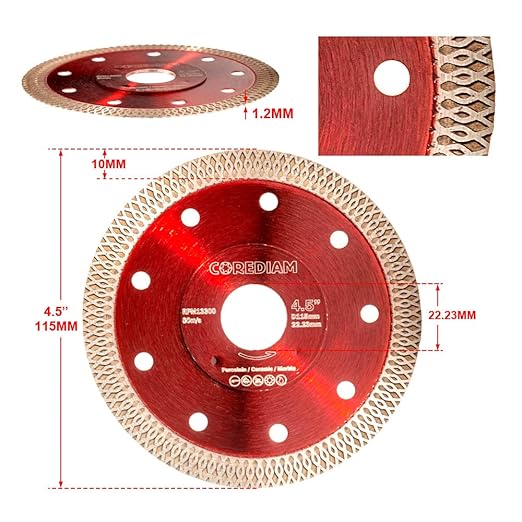

1. Thickness. The thinner the cutting edge of a saw blade, the easier it cuts, resulting in a smoother cut edge and less debris. The standard thickness for a tile cutting blade is 1.4 mm. However, the blade must not be excessively thin; diamond blades that are too thin pose safety risks during cutting. Currently, the minimum achievable thickness is 1.1 mm.

2.  Heat Dissipation holes. steel core is often equipped with heat dissipation vents to prevent excessive heat buildup caused by friction during cutting, thereby cooling the blade and ensuring the safety of the operator.

3.  Diamond segment shape. A continuous-rim segment is better suited for precision work, ensuring a smooth cutting surface free from chipping.

Select the appropriate tile cutting disc based on the specific requirements for the cut edge. If a user intends to perform miter cuts on tiles, it is imperative to select a blade specifically designed for this purpose. This is because miter cutting presents significantly greater challenges than straight cutting: it involves a deeper cutting depth, results in a larger contact area between the tile and the blade, and subjects the blade to increased pressure and friction—generating more heat. Consequently, the blade is more prone to overheating, which can lead to chipping along the tile's edge. Therefore, when performing miter cuts on tiles, we recommend selecting a blade featuring a reinforced core, as this provides superior structural strength and load-bearing capacity.

Our website offers a wide selection of saw blades to choose from—including specialized blades for 45-degree miter cuts, standard diamond cutting blades for general cutting, and many others. You can easily select the blade that best suits your specific cutting requirements. Choose Corediam Tools to help you complete your tile-cutting tasks quickly and efficiently!
